Installing the RS-422 Interface Box

The RS-422 interface box and tray should be installed in a rack. It is best installed in the
rear of the equipment rack directly behind the Lightspeed Live Server—or directly
above or below—to be close to the Lightspeed Live Server USB ports.
To install the USB-to-RS-422 interface box in its rack mount tray, follow these steps:

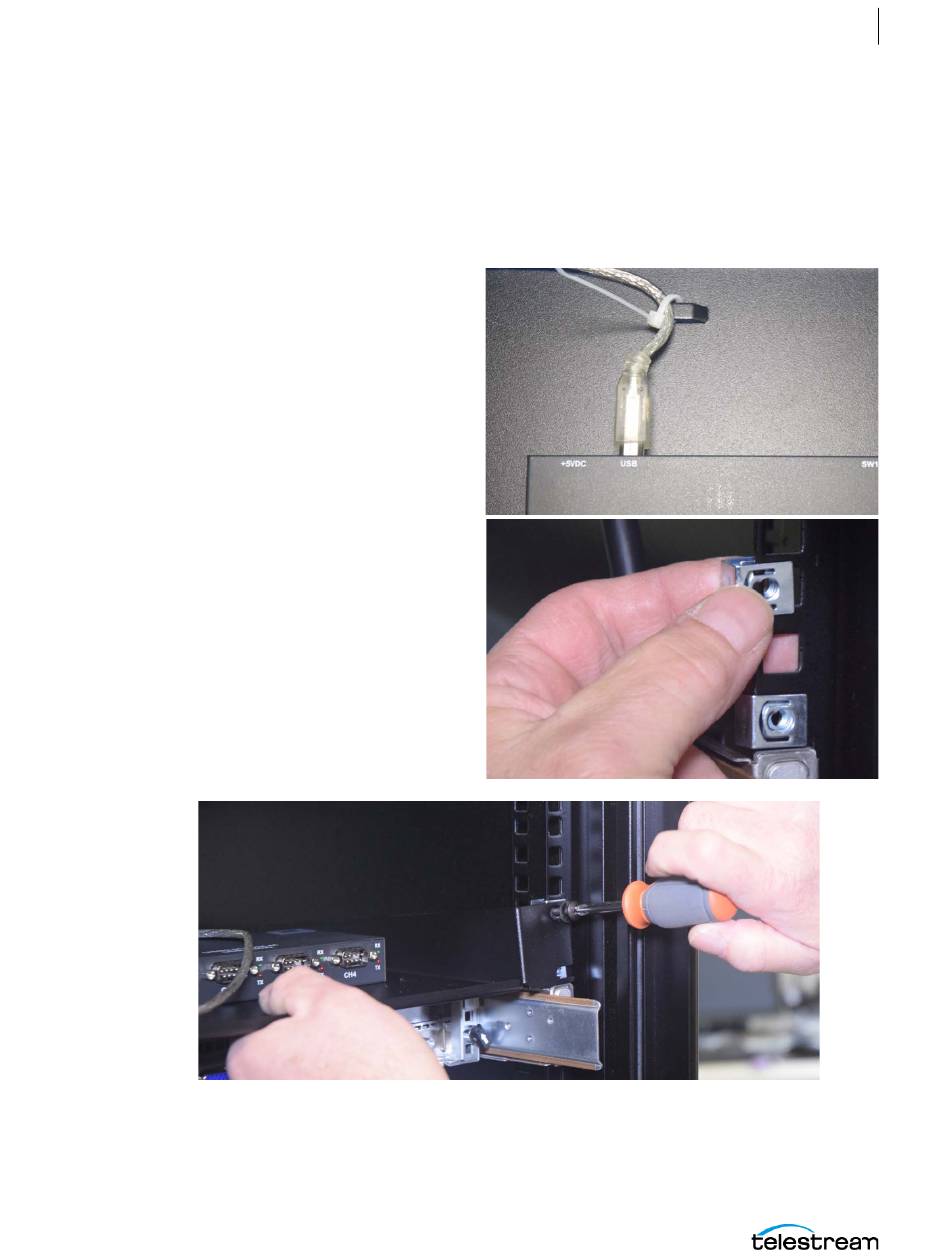

1. Insert the USB cable into the
rear of the RS-422 interface
box.
Fasten the USB cable to the tray
by inserting the tie wrap
through the raised anchor tab
and tighten it to secure the
cable.
2. To prepare the tray mounting
location, place the four G-type
cage nuts onto holes of an
open rack space that is close
to the Lightspeed Live Server.
3. Install the rack mount tray
with the supplied screws and
washers into the cage nuts.
4. Making sure that the Lightspeed Live Server is off, attach the USB cable to the
Lightspeed Server; for a single 4-port box, insert the USB cable into either USB port.
For two 4-port boxes, plug box 1 into the lower USB port to support VTRs 1-4; plug
box 2 into the top USB port for VTRs 5-8.
