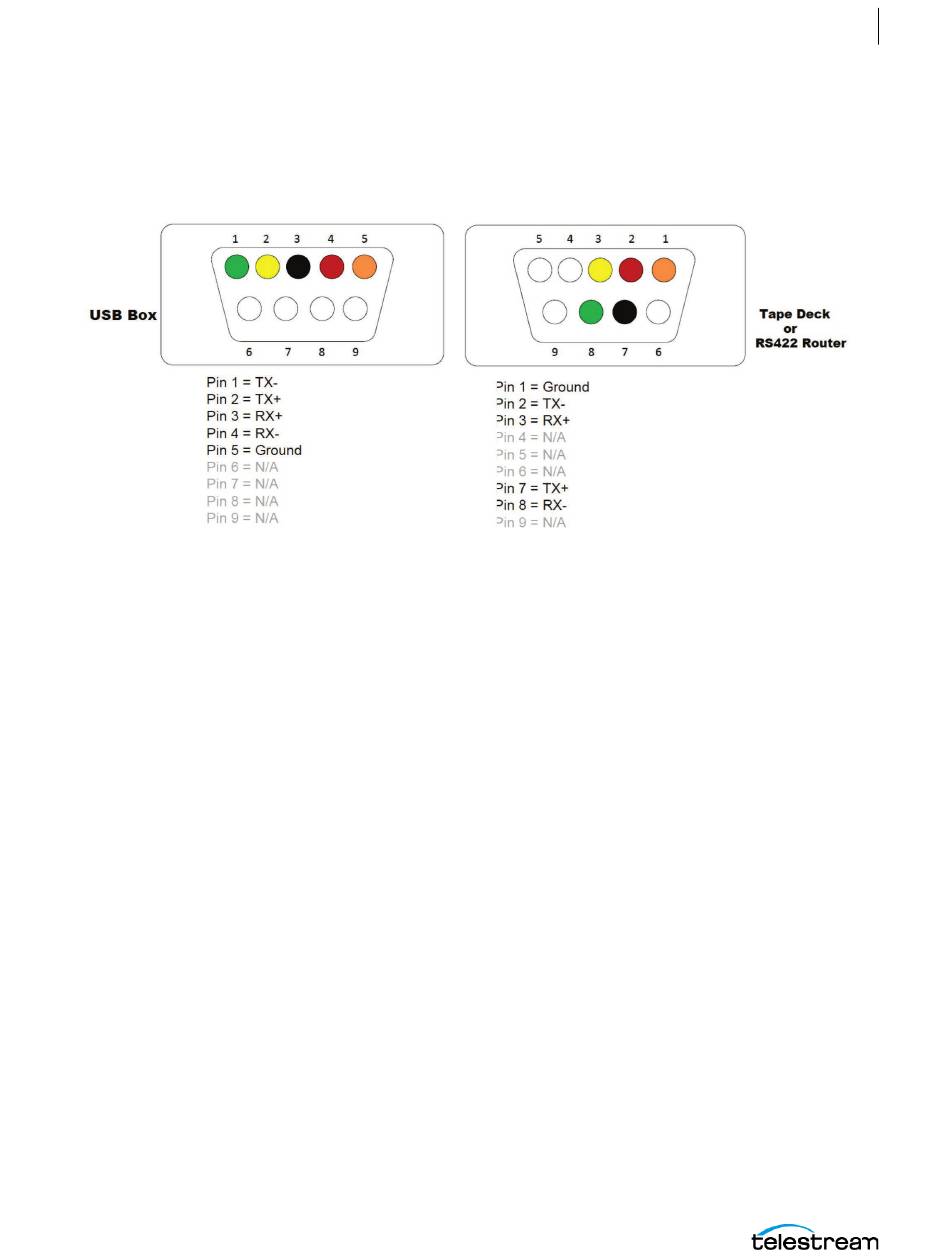

RS-422 Connector Pin Assignments

Use the pin assignment diagram below if you have to create custom RS-422 cables for
your USB-to-RS-422 interface box.
Lightspeed Live Capture User Guide
Connecting VTR Systems
RS-422 Connector Pin Assignments
297
