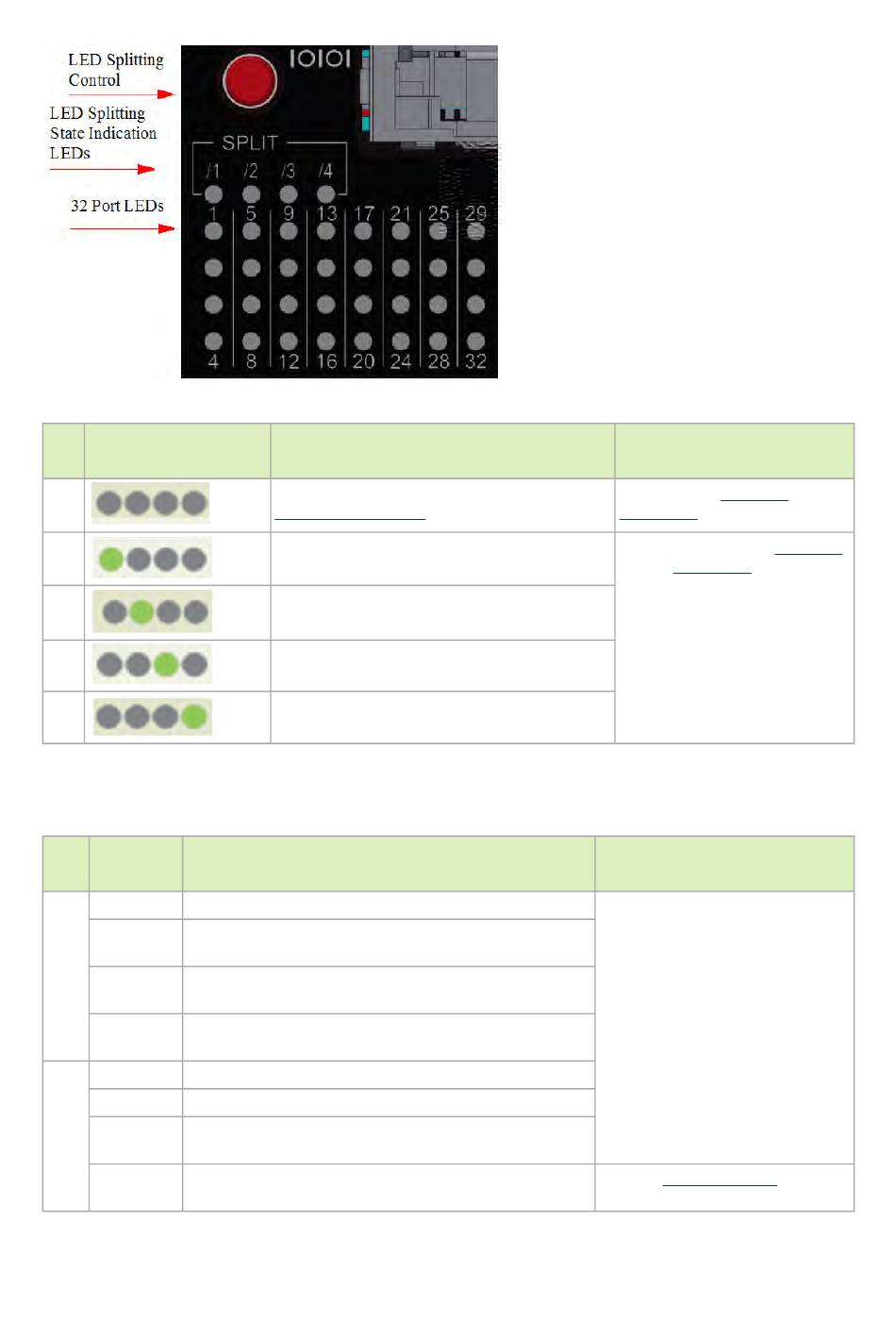

SN3700/SN3700C/SN3750-SX LED Splitting Options
Sta State Indication LEDs
te [/1 /2 /3 /4]
0
1
2
3
4
The port LED behavior indicates the port state, as follows:
SN3700/SN3700C/SN3750-SX Port LEDs Indications
Stat LED
e Behavior
0 Off No 4X/2X/1X link was established on this QSFP module
Solid Green At list one link was established: 4X/ 2XA /2XB/1XA /
1XB/1XC/1XD
Flashing Traffic is running in linked ports
Green
Flashing N/A
Amber
1-4 Off Link is down
Solid Green Link is up with no traffic
Flashing Link is up with traffic
Green
Flashing A problem with the link
Amber
QSFP Module LED Indication
Indication for all link types, as described in
Port LEDs Indications (State 0)
LED indication for the following link types:
4X/2XA/1XA
LED indication for the following link types:
4X/2XB/1XB
LED indication for the following link types:
4X/1XC
LED indication for the following link types:
4X/1XD
Description
Comments
See details in Port LEDs
Indications (State 0)
• See details in
Indications (States 1-4).
• Only one of the link
types can be up at a
given time.
Action Required
N/A
Refer to Troubleshooting.
Port LEDs
