Summary of Contents for Nvidia QM8700

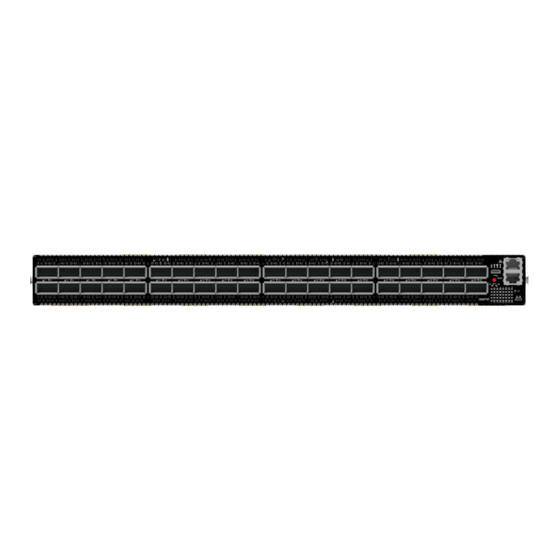

- Page 1 QM8700 and QM8790 InfiniBand Switch Systems Quick Installation Guide...
- Page 2 Table of contents Table of contents Installation and Configuration Installation and Configuration QM8700 and QM8790 InfiniBand Switch Systems Quick Installation Guide...
-
Page 3: Pay Attention
1 x Fixed rail kit for 16.9-31.5" (430-800mm) racks 2 x Power cables – Type C13-C14 1 x Harness: HAR000631 – Harness RS232 2M cable – DB9 to RJ-45 (only in QM8700) 2 x Cable retainers QM8700 and QM8790 InfiniBand Switch Systems Quick Installation Guide... - Page 4 If anything is damaged or missing, contact your NVIDIA representative at Networking- support@nvidia.com. QM8700 and QM8790 InfiniBand Switch Systems Quick Installation Guide...
-
Page 5: Installation And Configuration
1 Attach parts D and E (x2 of each) to the switch. Push the switch chassis' pins through the slider key holes, until locking occurs. Pay attention to the rack's type. Short racks (430-580mm): Standard racks (580-800mm): QM8700 and QM8790 InfiniBand Switch Systems Quick Installation Guide... - Page 6 # Illustration 2 Short racks: Standard racks: QM8700 and QM8790 InfiniBand Switch Systems Quick Installation Guide...
- Page 7 # Illustration Install 8 cage nuts (B) in the desired 1U slots of the rack. Do not tighten the screws yet. QM8700 and QM8790 InfiniBand Switch Systems Quick Installation Guide...
-
Page 8: System Interfaces
# Illustration Tighten all M6 screws (C) with a torque of 4.5±0.5. If anything is damaged or missing, contact your NVIDIA representative at Networking- support@nvidia.com. System Interfaces Connector (Front) Side FRU (Rear) Side QM8790 Front View QM8700 and QM8790 Rear View... - Page 9 * It may take up to five minutes to turn on the system. If the System Status LED shows red/amber after five minutes, unplug the system and contact your NVIDIA representative. LED Assignments Symbol Description Normal Status System health Green/Flashing...
- Page 10 For initial configuration in Onyx (MLNX-OS): Go through the configuration wizard. For further information, please refer to: https://docs.nvidia.com/networking/software/switch- software/index.html. For full installation instructions, go to https://docs.nvidia.com/networking/switches/index.html. © Copyright 2024, NVIDIA. PDF Generated on 08/14/2024 QM8700 and QM8790 InfiniBand Switch Systems Quick Installation Guide...
