Install 8 cage nuts (D) in the desired 1U slots of the rack: 4 cage nuts in the non-extractable
side and 4 cage nuts in the extractable side.

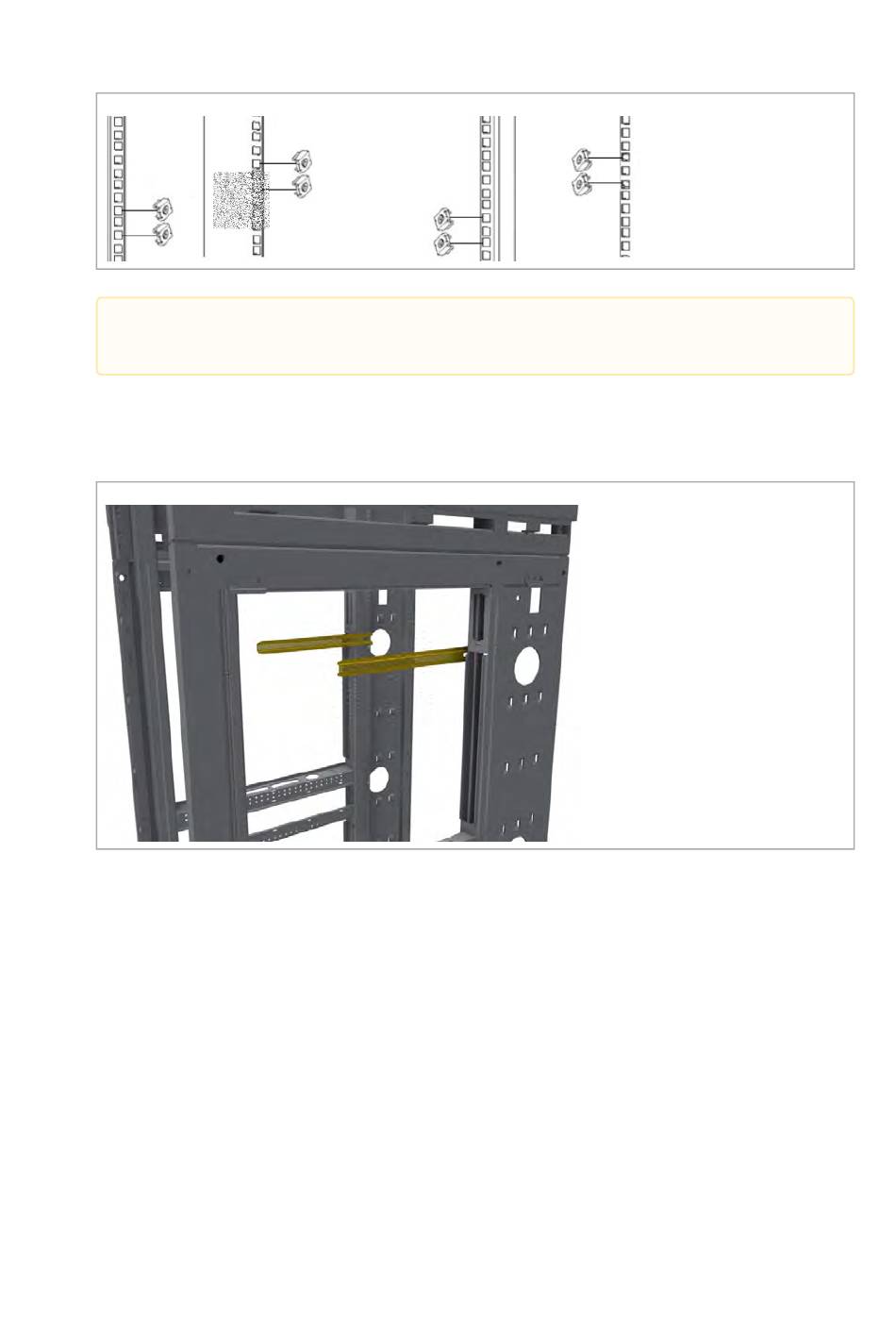

Installing the Cage Nuts
While each rack U (unit) consists of three holes, the cage nut should be installed
vertically with its ears engaging the top and bottom holes only.
While your installation partner is supporting the system's weight, perform the following
steps:
5.
Attach the two rack mount blades (B) to the back side (FRU side) of the rack by inserting four
M6 screws (E) in the designated cage nuts. Do not tighten the screws yet.
Attaching the Brackets to the Rack
6.
Slide the switch with the rails (A) and ears (C) installed on it into the left and right rails (B)
on the rack. Use four M6 screws (E) to fix the rack mount ears (C) to the rack. Do not tighten
the screws yet.
