To mount the system into the rack:
At least two people are required to safely mount the system in the rack.
The following steps include illustrations that show front side (ports) installation, yet all
instructions apply to all installation options.
1.
Attach the left and right rack mount rails (A) to the switch, by gently pushing the switch
chassis' pins through the slider key holes, until locking occurs.
2.
Secure the chassis in the rails by screwing 2 flat head Phillips screws (F) in the designated
points with a torque of 1.5±0.2 Nm.

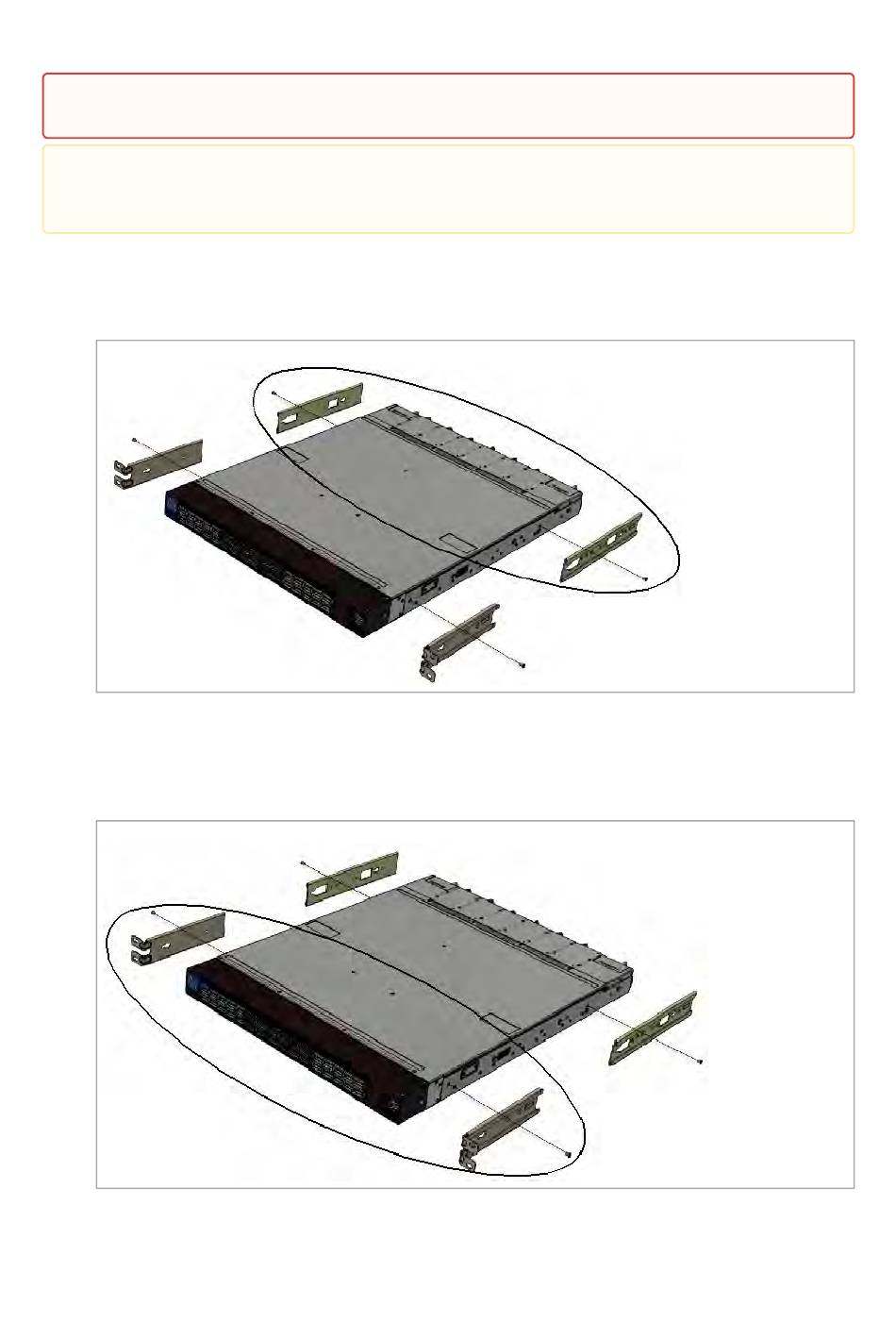

Attaching the Rails to the Chassis
3.
Attach the left and right rack mount ears (C) to the switch, by gently pushing the switch
chassis' pins through the slider key holes, until locking occurs. Secure the system in the
brackets by screwing the remaining 2 flat head Phillips screws (F) in the designated points
with a torque of 1.5±0.2 Nm.
Attaching the Brackets to the Chassis
18
