Sliding the Blades in the Rails
7. When fully inserted, fix the switch by tightening the 8 screws (E) inserted in Step 5 and Step
6 with a torque of 4.5±0.5.
Removing the System from the Rack
To remove a unit from the rack:
1. Turn off the system and disconnect it from peripherals and from the electrical outlet.
While your installation partner is supporting the system's weight:
2. Loosen the screws attaching the rack mount ears (C) to the rack. Do not remove them yet.
3. Loosen the screws attaching the rack mount blades (B) to the rack, and pull the blades
towards you, while your partner is holding the system.
4. Extract the loosened screws from Step 2 and dismount the system from the rack.
5. Remove the rails and brackets from the chassis by unscrewing 4 screws.

SN3700/SN3700C Telescopic Rail Kit


The telescopic rail kit is not included in the system's package, and can be purchased
separately.
There are two installation kit options:
• Standard depth systems should be mounted using the standard rail kit.
• Short depth systems can be mounted using either of the rail kits.
Kit Part Number
930-9BRKT-00JJ-000

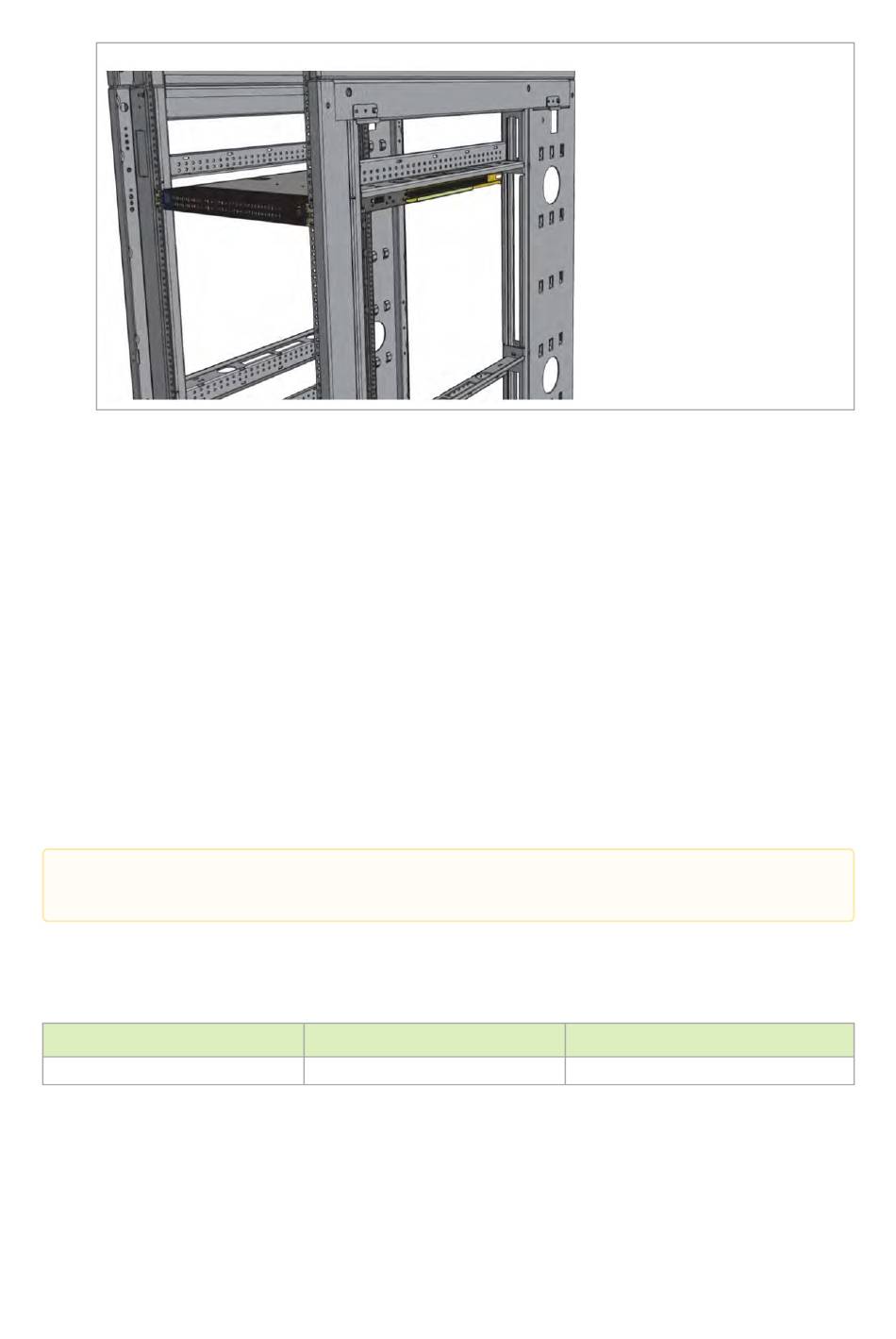

The following parts are included in the rail kit package (see figure below):
• 1x Right side slider (A)
• 1x Left side slider (B)
• 2x Rear rail (C)
• 2x Front rail (D)
Legacy Kit Part Number
MTEF-KIT-F
Rack Size and Rack Depth Range
600-800 mm
20
