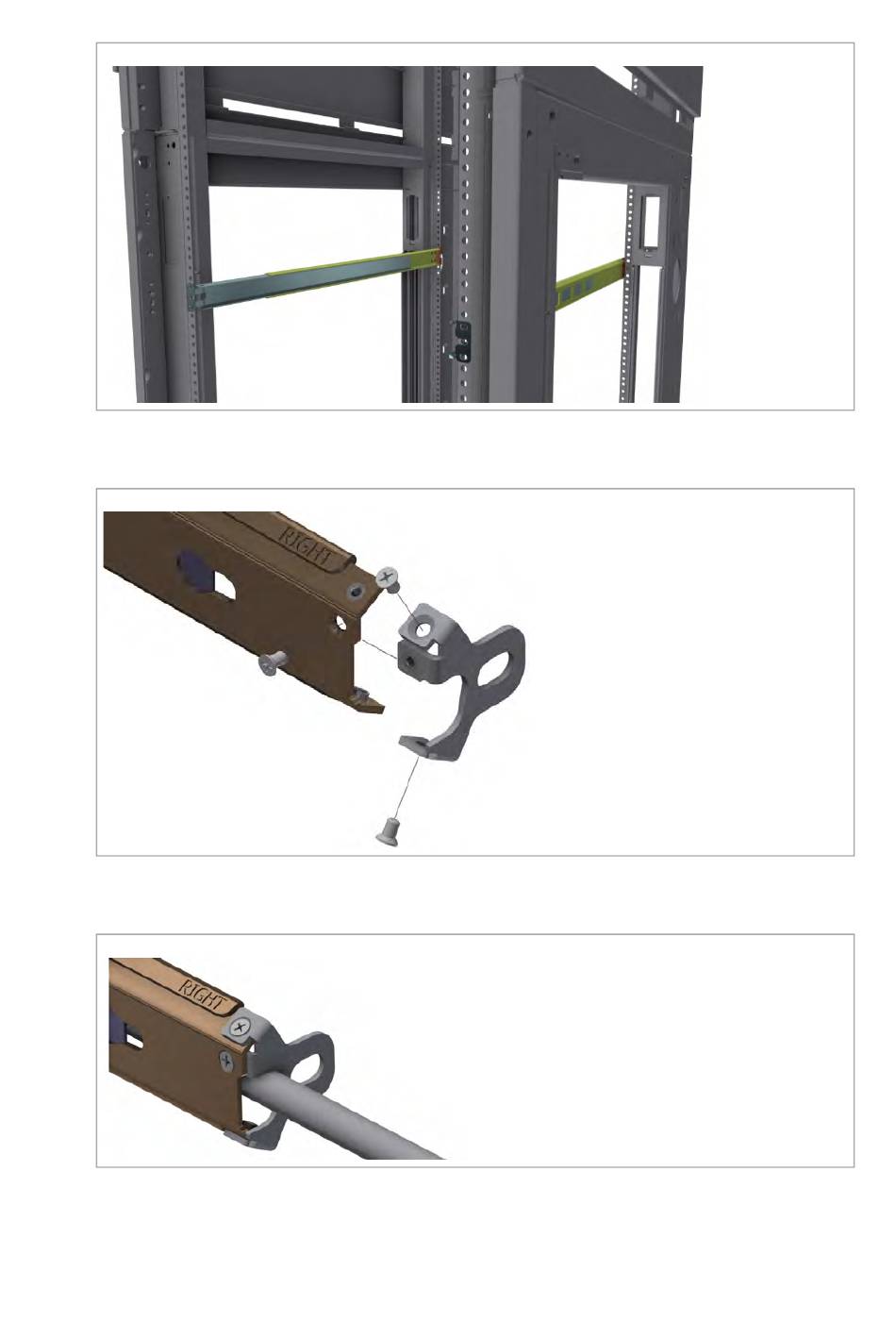

Mounting the Outer Rails into the Rack
3.
If cable accommodation is required, disassemble any of the inner rails from the brackets
attached to them, by removing and scraping the connecting screws.
Disassembling the Inner Rails for Cable Accommodation
4.
Route the power cable through either of the inner rails, and reassemble the brackets by
screwing the 3 screws (per rail) provided with the rail-kit (H) with a torque of 0.7±0.05Nm.
Cable Accommodation
23
