www.ti.com
4.2 PCB Layouts
Figure 4-6
through
Figure 4-11
SBAU436 – JANUARY 2024
Submit Document Feedback
show the PCB layouts for the ADS1278 EVM.

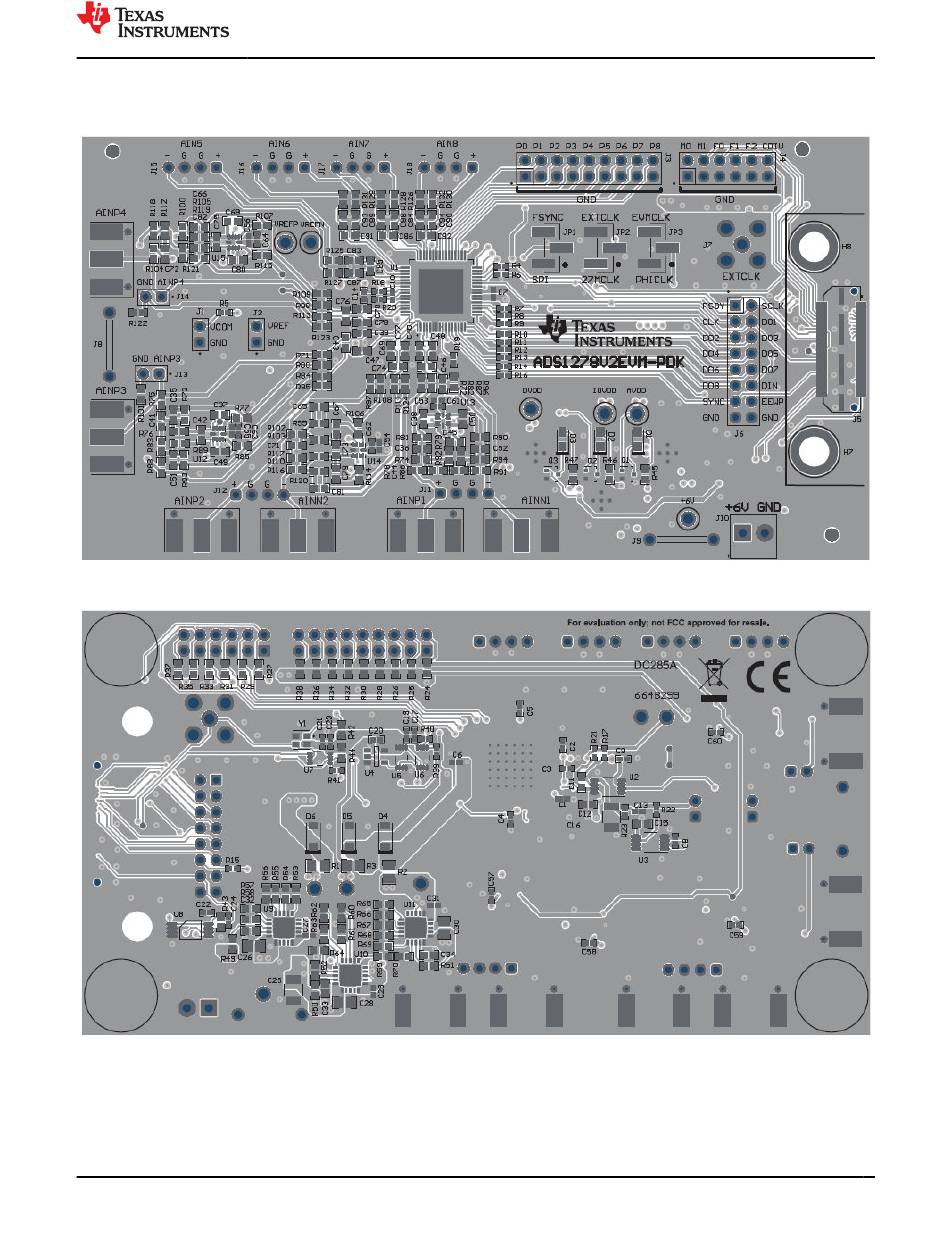

Figure 4-6. Top Side Composite Layout
Figure 4-7. Bottom Side Composite Layout
Copyright © 2024 Texas Instruments Incorporated
Hardware Design Files
ADS1278EVM-PDK Evaluation Module
25
