Description Of Power Connectors - Zapi SEM1 User Manual

B1 PCLRXD
B2 NCLRXD
B3 PCLTXD
(PLED)
B4 NCLTXD
(NLED)
B5 GND
B6 +14
B7 -----
B8 -----
F1, F2: motor field windings
VMN, SH: motor rotor windings
+BATT: battery positive
-BATT: battery negative
Page 12
Positive serial reception.
Negative serial reception.
Positive serial trasmission or positive of the diagnostic LED if the
console is not connected.
Negative serial trasmission or negative of the diagnostic LED if the
console is not connected.
Negative console power supply.
Positive console power supply.

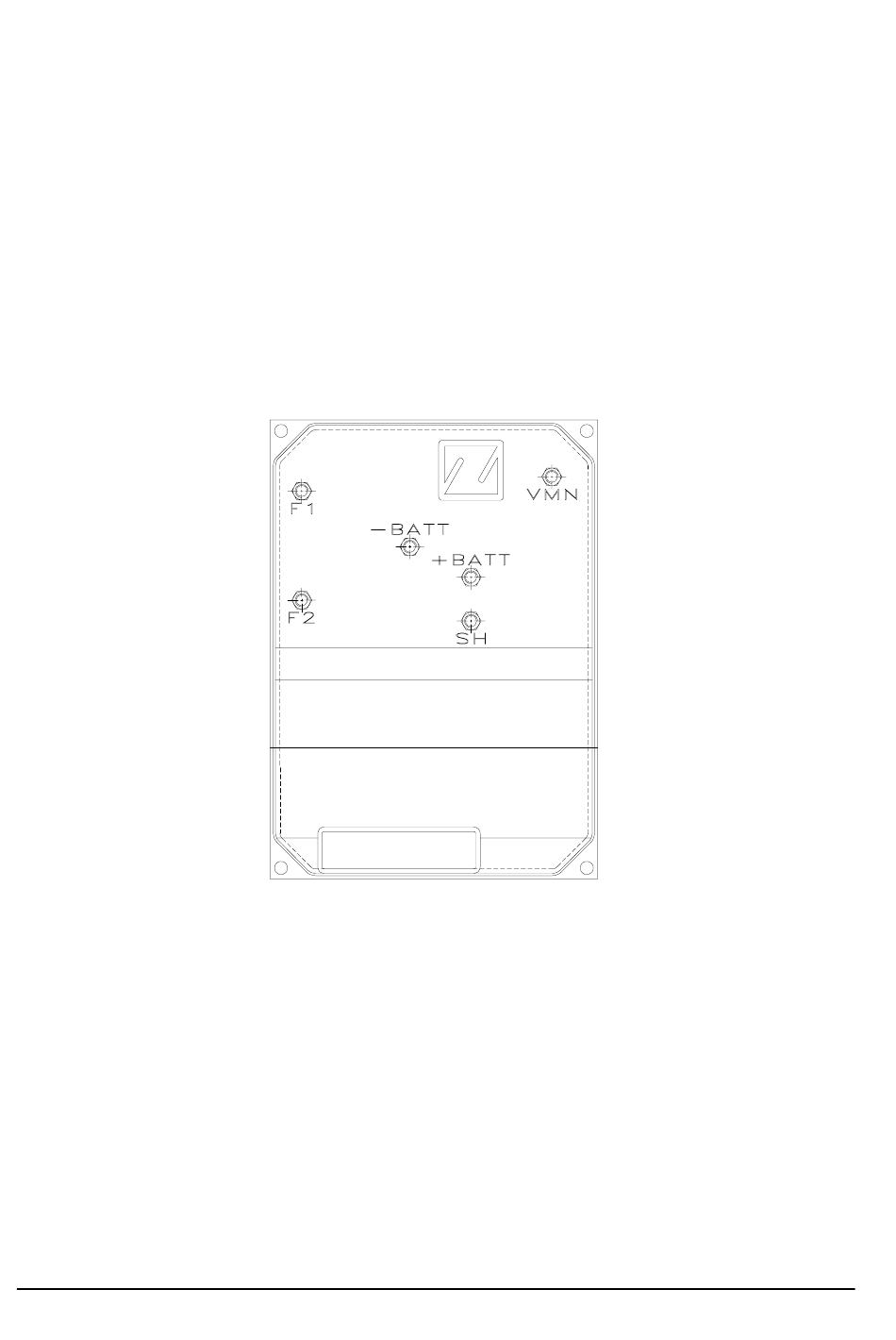

3.5 DESCRIPTION OF POWER CONNECTORS

SEM1
