Separately excited DC motor chopper.
Regenerative braking function.
Operating voltages: ........................................................................... 16-24-36-48V.
Operating frequency: ....................................................................................... 8kHz.
Max external temperature: .............................................................................. 40°C.
Min external temperature: ............................................................................... -30°C
Max chopper temperature: .............................................................................. 85°C.
VERSION
16V / 300A
24V / 200A
24V / 300A
36V / 300A
48V / 180A

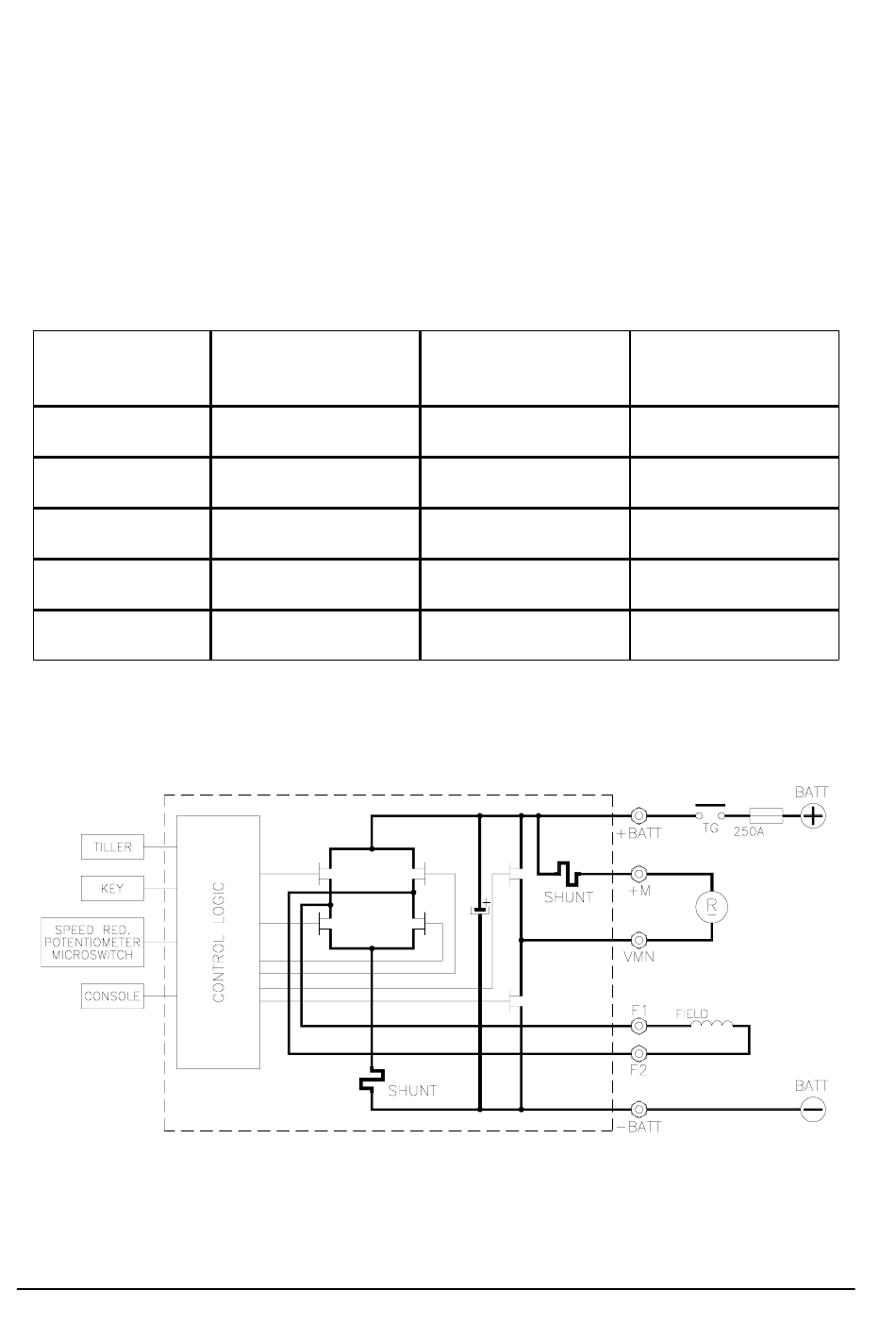

Block diagram:
Page 4
2 SPECIFICATIONS
2.1 TECHNICAL SPECIFICATIONS
MAXIMUM CURRENT
300A (1' 30'')
200A (2' 00'')
300A (1' 30'')
300A (1' 30'')
180A (1')
BOOSTER CURRENT
350A (5'')
250A (5'')
350A (5'')
350A (5'')
220A (5'')
SEM1
VOLTAGE DROP ON
FULL CONDUCTION
0.24V a 100A, 25°C
0.39V a 70A, 25°C
0.24V a 100A, 25°C
0.24V a 100A, 25°C
0.39V a 70A, 25°C
