Program Vacc: Description - Zapi SEM1 User Manual

This function allows to store the minimum and maximum values of the accelerator
output signal in each running direction. This is necessary to compensate for the asym-
metry of the potentiometer.

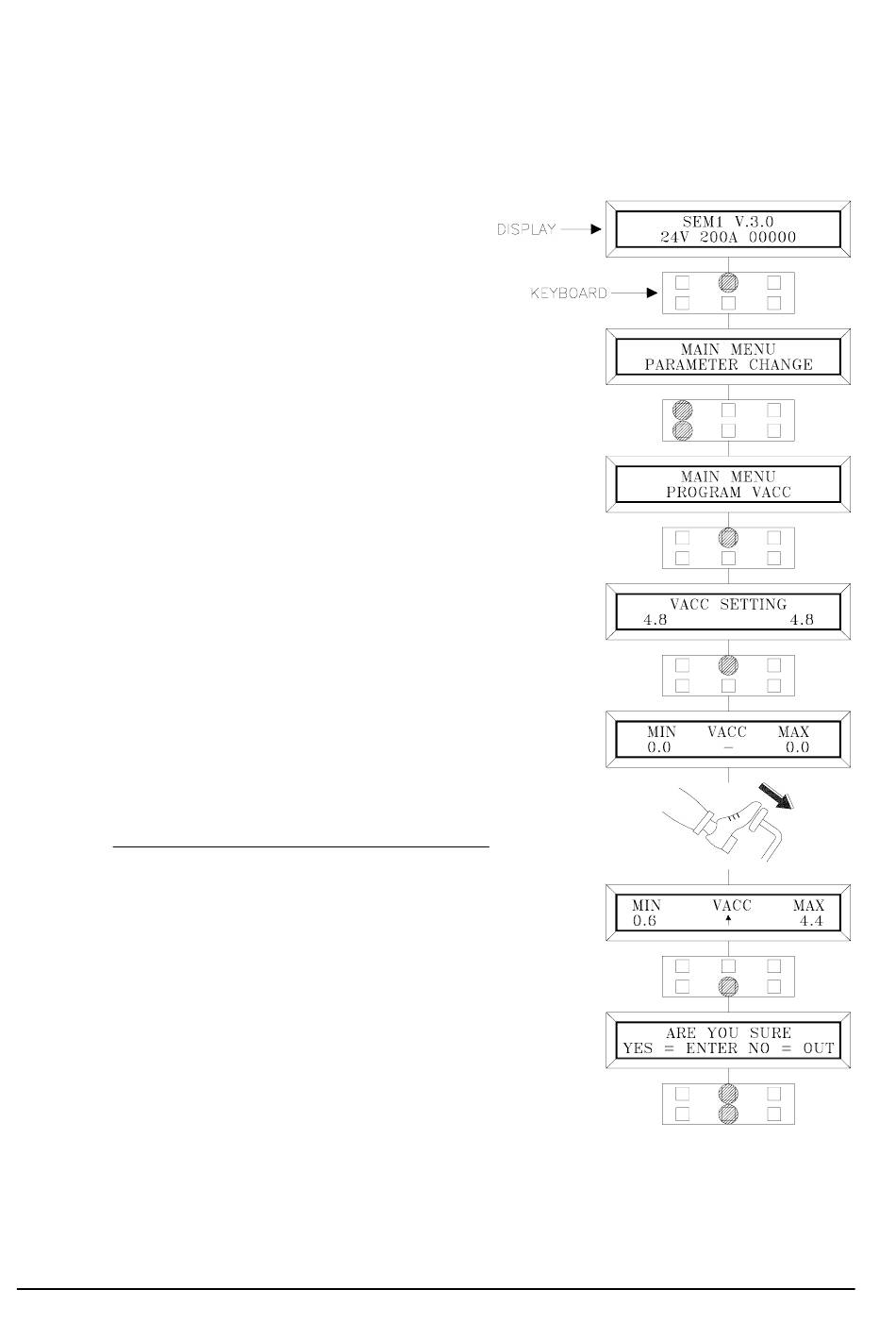

How to enter in the menu PROGRAM VACC and carry out the necessary operations:
1) Opening display.
2) Press ENTER to enter in the main menu.
3) The first item of the list appears.
4) Scroll the list with the buttons ROLL UP or
ROLL DOWN. Select PROGRAM VACC.
5) The selected item (PROGRAM VACC) appears.
6) Press ENTER to enter the function
PROGRAM VACC.
7) The maximum current values matched to the
forward and backward running directions appear.
8) Press ENTER.
9) The controller is now ready to record the
minimum and the maximum value of the
potentiometer signal.
10) Press the pedal. Move slowly at the start and complete
the stroke.
N.B. : select the direction before pressing the pedal.
11) The new maximum and minimum values for each
running direction appear.
The arrow indicates the selected direction.
12) Press OUT.
13) The confirmation request for storing new
values appears.
14) Press ENTER to confirm or OUT to cancel.
Page 32

6.6 PROGRAM VACC: DESCRIPTION

SEM1
