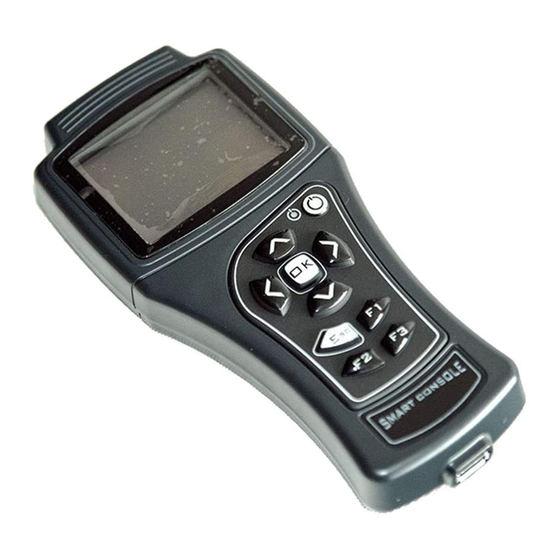

Zapi SMART CONSOLE Instructions Manual
Introduction for wrt60
Hide thumbs
Also See for SMART CONSOLE:
- User manual (50 pages) ,
- Manual (11 pages) ,
- Instructions manual (8 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Zapi SMART CONSOLE
Summary of Contents for Zapi SMART CONSOLE
- Page 1 ZAPI SMART CONSOLE Introduction for WRT60...
- Page 2 Location of CAN Connection...

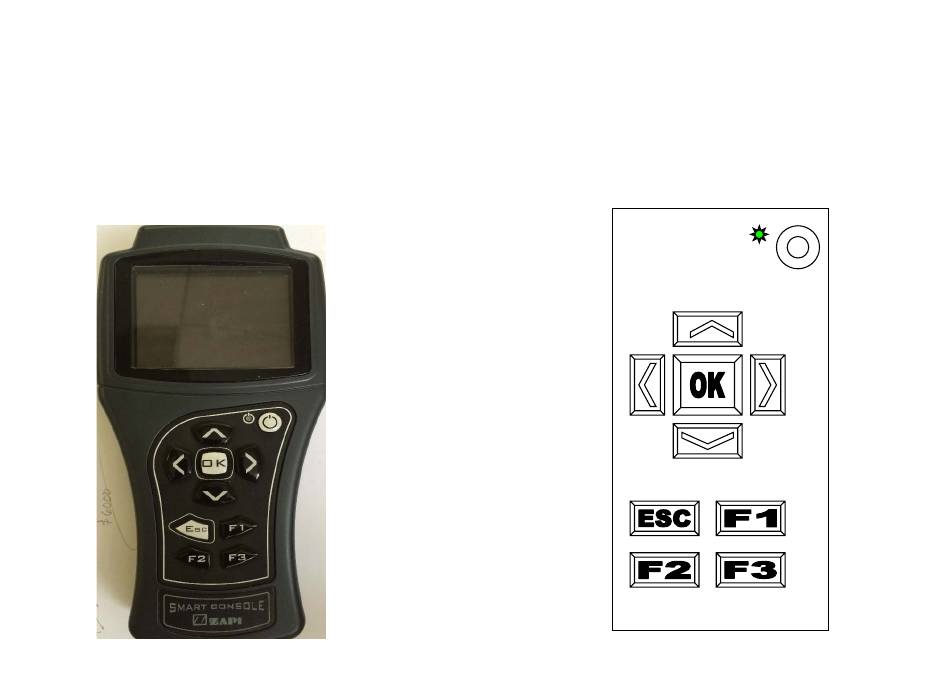

- Page 3 Traction VACC Turn on ZAPI Handset Push and hold the power button for 3s The Display will show: Cons AFG ZP021* Press button until CAN CONSOLE shows on the display Cons AFG ZP021* The Display will show : CAN CONSOLE...
- Page 4 CANCONSOLE The Display will show: SELECT NODE Push , or To select Node 2 SELECT NODE The Display will show: NODE 2 Press OK to go into the Traction controller AD0T2B WF6EP1.11 The Display will show: 24V 320A 0H Press OK to go into the Main Menu The Display will show: Main Menu...
- Page 5 Press button until PROGRAM VACC shows on the display MAIN MENU The Display will show: PROGRAM VACC Press ENTER to go into the PROGRAM VACC function The Display will show the minimum and VACC SETTING maximum values of throttle voltage. Both CURRENT VALUE directions are shown Press ENTER to clear these values.
- Page 6 Slowly depress the accelerator to its maximum value. The new minimum and maximum voltages will be displayed on the Console. Select the Reverse Direction and BACKWARD x.xV x.xV repeat the item above When finished , press ESC The Display will ask : APPLY APPLY CHANGES? CHANGES ? YES= OK...
- Page 7 When finished, the Console shows : Main Menu Press and hold power button 3s to turn off the Console...
