Save Parameters: Description - Zapi SEM1 User Manual

The function SAVE PARAM. allows loading on the console memory parameter values
and the controller configuration data. It is possible to load max 64 configurations.
The data stored on the console memory can be loaded again on another controller by
means of the function RESTORE.
Data loaded with the function SAVE is:
- all the parameters values (PARAMETERS CHANGE);
- the settings of the options (SET. OPTION);
- the setting of the battery (ADJUST BATTERY).

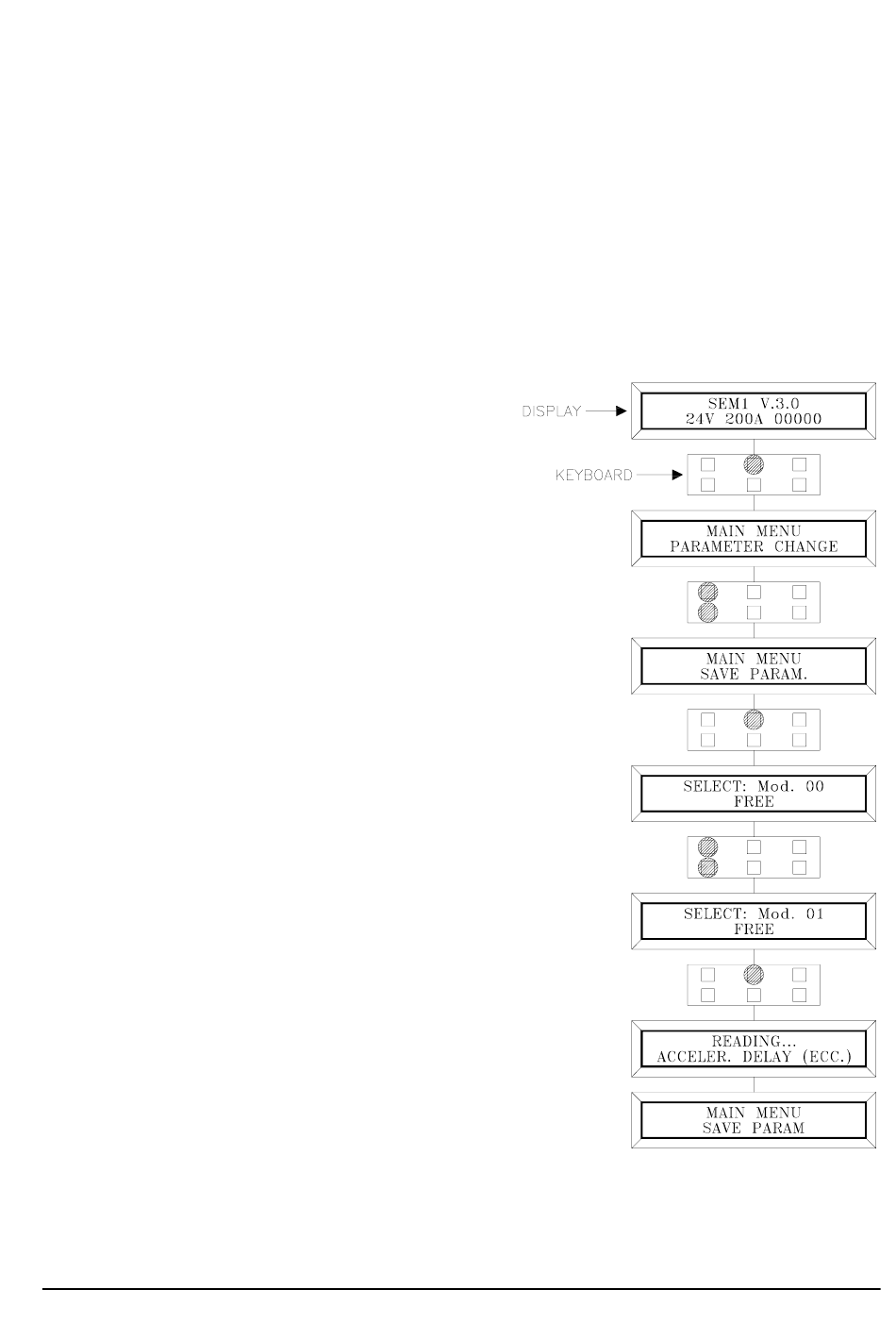

How to enter the SAVE function by the console:
1) Opening Display.
2) Press ENTER to enter the main menu.
3) The first item of the list appears.
4) Scroll the list with the buttons ROLL UP
or ROLL DOWN. Select SAVE PARAM.
5) The selected item (SAVE PARAM.) appears.
6) Press ENTER to enter the SAVE function.
7) In the first line the model code selected, appears
in the second line it appears FREE if the memory
box is free or the name of the model if it is busy.
8) Select the model code with the buttons ROLL UP
and ROLL DOWN.
9) The new model code selected and its
condition (FREE/BUSY) appears.
10) Press ENTER to confirm the reading operation.
11) On the second line the items of the parameters
stored scroll.
12) At the end of the operation it returns to
the main menu SAVE PARAM.

6.3 SAVE PARAMETERS: DESCRIPTION

SEM1 Page 29
