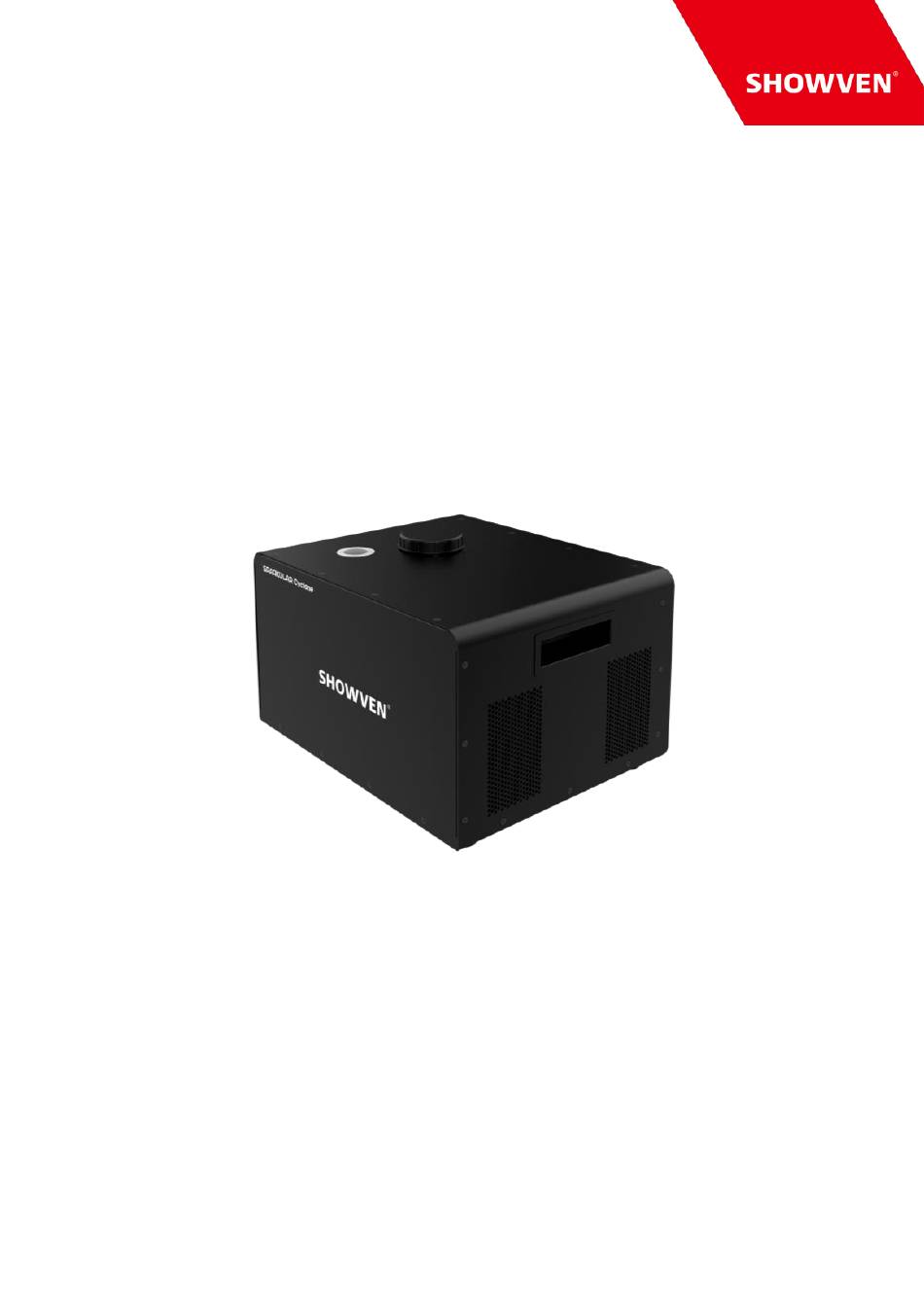

- Page 1 USER MANUAL SPARKULAR Cyclone ® V2.2 2022/07/07 Showven Technologies Co., Ltd.
- Page 2 ® Thanks for choosing SPARKULAR Cyclone, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. ® SPARKULAR Cyclone can be used in rain, but after use please clean it, and store it at dry environment.
- Page 3 Description Δ ® ® SPARKULAR Cyclone is a brand new product with SHOWVEN original technology. It is with amazing sparks effect up to 10m and equipped with auto brake system, ensure immediate stop ® even in max output. SPARKULAR Cyclone with waterproof design allows shows not interrupted by rain.
- Page 4 ® Structure of SPRKULAR Cyclone Δ Output Nozzle Feeding Hopper Lid LCD Screen Power Switch Fuse 5-pin DMX IN 5-pin DMX OUT 3-pin DMX IN 3-pin DMX OUT POWER IN POWER OUT Diagram of Bottom Panel...
- Page 5 Operation Panel Δ 1. LED display area: READY DM X FAU LT HEAT READY: Turns from flashing into long on, indicates that the machine is ready to work. DMX: Flashing shows that DMX signal is connected; light OFF means there is no DMX signal FAULT: Light ON when error occurs HEAT: Light ON when system is heating up...
- Page 6 3 seconds to return to the main interface. Options Range Default Explanation Default is 580. Please don't change default value Set Temperature 580-620 without engineer's suggestion from ® SHOWVEN Wireless Control ON/OFF n.a. LCD Backlight ON/OFF LCD screen backlight ON/OFF...
- Page 7 When ON, the machine can firing only when Standby Switch ON/OFF heating up was finished ® For better performance of SPARKULAR Cyclone, please don’t change the default value ® without permission from SHOWVEN 5. DMX Control ® SPARKULAR Cyclone occupy 2 channels. First channel Function 0-15...
- Page 8 b) Make sure the machine is securely installed to avoid tipping. c) The safety zone area shifts accordingly when machine installed in tilt position. Please increase the safety distance in the direction which machine tilt. d) Check carefully the output nozzle of each machine, make sure the output nozzle is in good shape and there is no powder aggregate.
- Page 9 ® e) Assign DMX address for each unit of SPARKULAR Cyclone. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine. ® f) Connect a DMX cable to the DMX IN socket of first unit of SPARKULAR...
- Page 10 b) Disconnect all POWER and DMX cables. c) Empty the remaining HC8200 in hopper, and store the remaining HC8200 in a dry sealed bottle for next time use. Never touch the output nozzle of SPARKULAR® Cyclone when empty the hopper. DANGER OF GET BURNT! d) Operators can use handheld vacuum cleaner to empty the feeding hopper.
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
