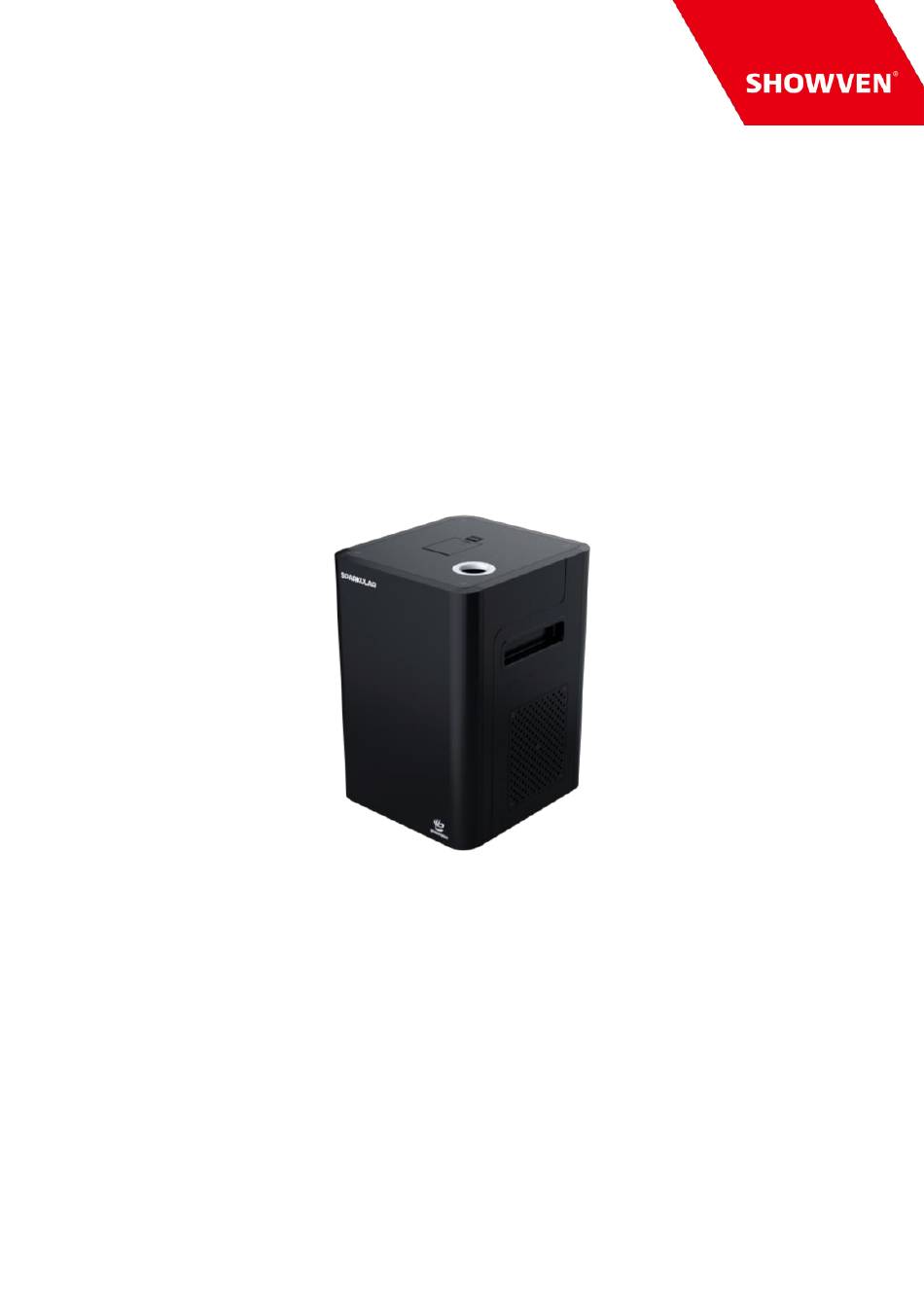

- Page 1 USER MANUAL SPARKULAR ® V3.2 2023/10/11 Showven Technologies Co., Ltd.
- Page 2 Thanks for choosing SPARKULAR , we wish it will sparks up your show. ® Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. Keep SPARKULAR dry and do NOT use in rain or snow. ®...
- Page 3 Description Δ SPARKULAR is original innovation products introduced by SHOWVEN , it is the first spark ® ® fountain machine in special effects industry. SPARKULAR is designed for highly demanding ® professional market with adjustable sparks height from 1.5 to 5m.
- Page 4 Structure of SPARKULAR ® Δ 1. Output Nozzle 2. Feeding Hopper Lid 3. Cooling Fan 4. LCD Screen 5. DMX IN 6. DMX OUT 7. Fuse 8. Power Switch 9. Power IN 10. Power OUT Diagram of Bottom Panel...
- Page 5 Operation Panel Δ 1. LED display area: READY DM X FAU LT HEAT READY: Flash means machine is preparing, LED keeps on means ready to work DMX: Flash means DMX signal is connected, light OFF means there is no DMX signal FAULT: Light ON when error occurs HEAT: Light ON when system is heating up...
-
Page 6: Dmx Address
Interface Δ 1. Main Interface: DMX Address First line: Display DMX address is “1” Second line: Display the heating chamber temperature and the temperature progress bar; 2. Error information Error information Explanation E0 System IC Systematic error E1 Motor Protect Motor over current protection E2 Temp. - Page 7 When ON, the machine can firing only when Standby Switch ON/OFF heating up was finished *For better performance of SPARKULAR , please don’t change the default value without ® permission from SHOWVEN ® 5. DMX Channel Mode: SPARKULAR occupy 2 DMX channel. ® First Channel...
-
Page 8: Emergency Stop
Function Second Channel Clear Material 60-80 EMERGENCY STOP 20-40 Pre-heat OFF 0-10 Pre-heat ON 240-255 Operation Guide Δ 1. Install SPARKULAR ® a) Horizontal installation is preferred for SPARKULAR . If need to installed SPARKULAR ® ® angles, please turn the Tip over to OFF status first, maximum firing angle is 45 ° and can only be angled to the right side as below picture. - Page 9 3pcs (110V version). Do not connect exceed units to a single electrical circuit. d) Power ON all SPARKULAR ® e) Assign DMX address for each unit of SPARKULAR . If use SHOWVEN host controller or ® FXcommander to control the machine please allocate a unique DMX address for each unit of machine.
- Page 10 g) Clear material for SPARKULAR for 5s after show, clear material will remove the remaining ® particles from heating chamber. For angled installation, please elongate clear material time. 6. Turn Off and clean up a) Power off SPARKULAR , allow SPARKULAR to cool down.
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
