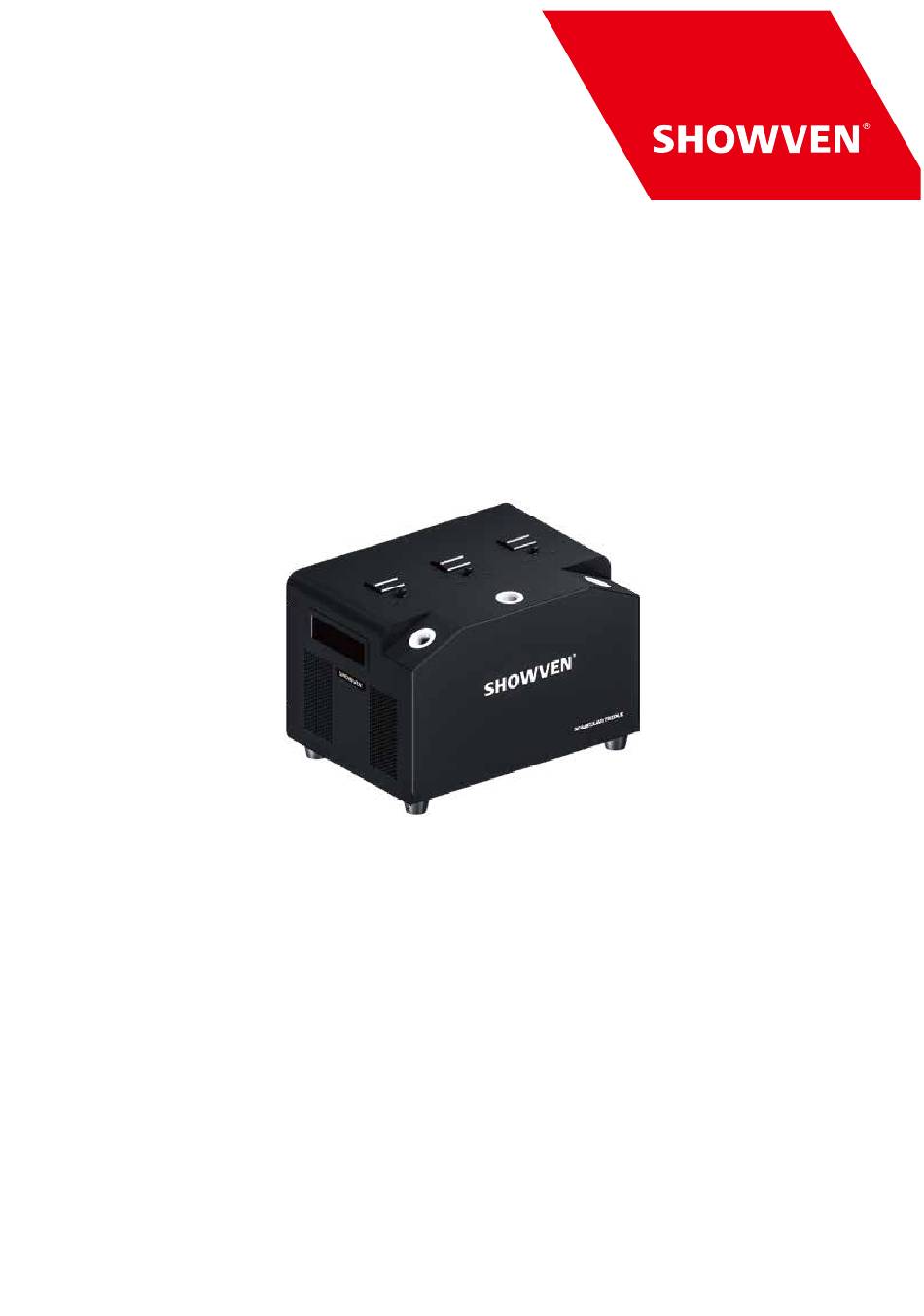

Page 1: User Manual
SPARKULAR TRIPLE USER MANUAL V1.0 Showven Technologies Co.,Ltd. -
Page 2: Safety Considerations
User Manual SPARKULAR TRIPLE Please read this manual carefully before operating the product. This manual contains the warranty card, please keep it well. Safety Considerations 》Never touch the nozzle of SPARKULAR TRIPLE, danger of getting burnt. 》Never touch the sparks which shooting out from the nozzle. 》Cover of nozzle of SPARKULAR TRIPLE is prohibited. -
Page 3: Operation Panel
Model: BT51/BT52 Parameters Dimension 400×290×270mm Weight 20kg BT51:AC200-240V, 50/60Hz Input BT52:AC100-120V, 50/60Hz Work power 1500w Working Temperature -10℃~ 50 ℃ Casing Metal 2.0-4.0m adjustable (HC8200 MEDIUM) Effect height 2.0-5.0m adjustable (HC8200 LARGE) Hopper capacity 160g * 3 HC8200 consumption 17g/min * 3 Feature: 》Triple heads, multi effect 》Each nozzle can be controlled separately... -
Page 4: Main Interface
Control button area: MENU: Short press to switch interface, press for 3 seconds can switch to the advanced setup interface. DOWN: Parameters down UP: Parameters up ENTER: Confirm and save parameters Radio frequency identification area: Composite Ti with RFID card, swiping cards to identify parameters and types of granules. Please note that granules RFID card can increase the single machine specific working time. -
Page 5: Setting Interface
Explanation Options Range Setup inner Core temperature. Please don't change Set Temperature 500-610 default value without engineer's suggestion from SHOWVEN. Auto preheat function switch after turning on Auto Heat ON/OFF machine Adjust the sparks density. Please don't change default Density 70-100 value without engineer's suggestion from SHOWVEN. - Page 6 0-10 Pre-heat OFF（Disable in Auto-heat） 240-255 Pre-heat ON（Disable in Auto-heat） Please set DMX address following below rules when connect with SHOWVEN host controller. SPARKULAR TRIPLE No. DMX Address Note: Wrong DMX address setting may cause uncontrolled shooting of SPARKULAR TRIPLE.
-
Page 7: Warranty Instructions
3.Damage caused by external reasons (lightning strike, power supply etc); 4.Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice and warranty card are necessary when asking for service from SHOWVEN. -------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------... - Page 8 Showven Technologies Co., Ltd Add: Building B1, Changsha E Center No.18, Xiangtai Road, Liuyang Economic Development Zone, Changsha City, 410300, Hunan Province, P.R.China. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn...
