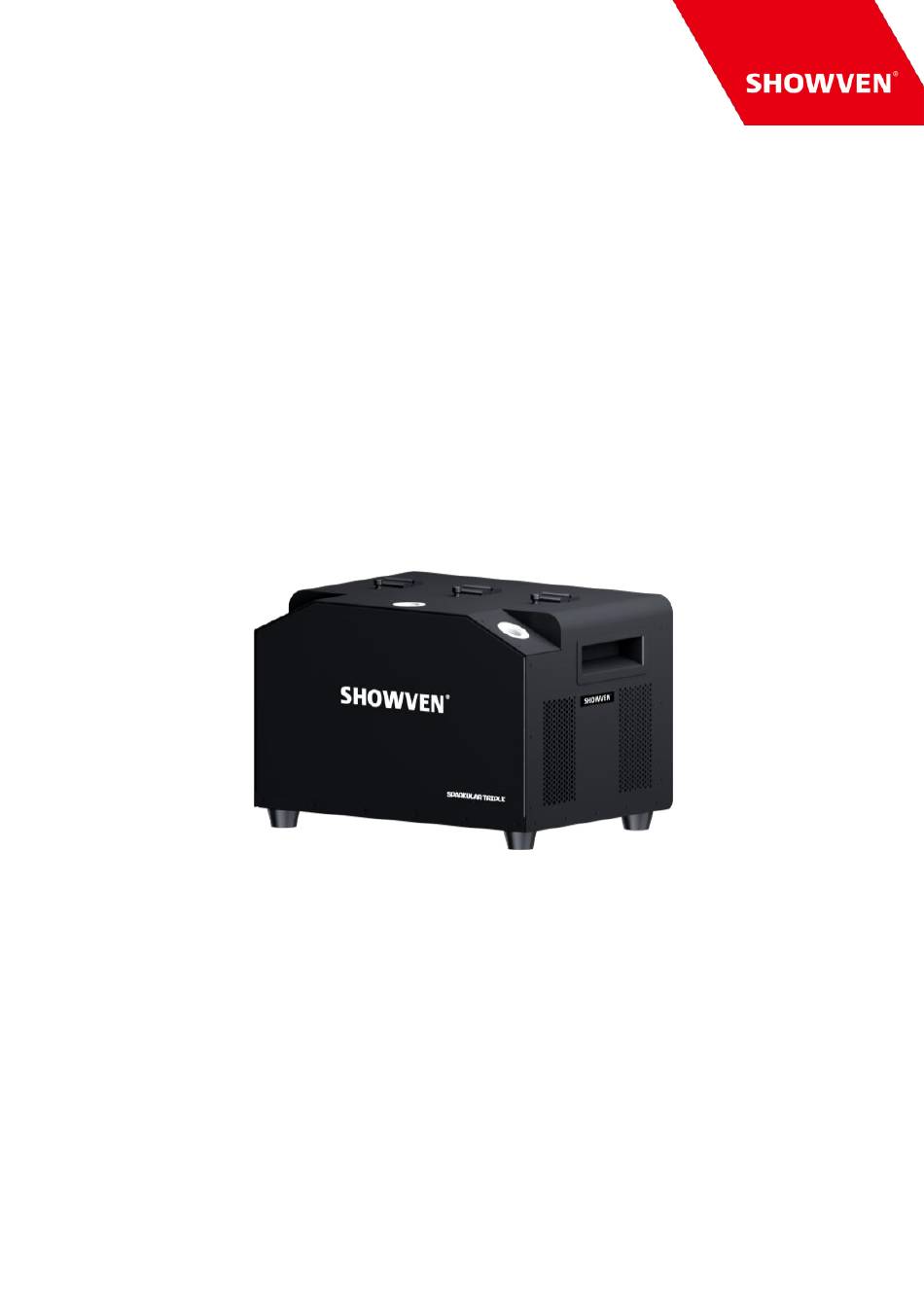

- Page 1 USER MANUAL SPARKULAR TRIPLE ® V2.1 2022/06/23 Showven Technologies Co., Ltd.
- Page 3 ® Thanks for choosing SPARKULAR TRIPLE, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. ® Keep SPARKULAR TRIPLE dry and do NOT use in rain or snow. ®...
- Page 4 Description Δ ® ® SPARKULAR TRIPLE is three way SPARKULAR machine, with one vertical nozzle and two 25° angled nozzles, each nozzle can be controlled individually, the effects height adjustable ® from 2m to 5m. SPARKULAR TRIPLE equipped with high-speed motor ensure the excellent eruption speed and powerful burst.
- Page 5 ® Structure of SPRKULAR TRIPLE Δ Output Nozzle Feeding Hopper Lid Cooling Fan LCD Display Safety Loop 5-pin DMX IN 5-pin DMX OUT DC 5V 3-pin DMX IN 3-pin DMX OUT POWER IN POWER OUT POWER SWITCH Diagram of Bottom Panel...
- Page 6 Operation Panel Δ 1. LED display area DM X READY3 READY2 READY1 READY1, READY2, READY3 Shows the status of 3 heads respectively, after turn on, the machine pre-heating automatically, pre-heating time is around 5min. When “READY” turns from flashing into long on, indicates th at the machine is ready to work.
- Page 7 Range Default Explanation Default is 580. Please don't change default value Set Temperature 500-610 ® without engineer’s suggestion from SHOWVEN Auto preheat function switch after turning on Auto Heat ON/OFF machine Adjust the sparks density. Please don't change Density 70-100 default value without engineer's suggestion from ®...
- Page 8 Factory Mode Factory Mode is factory debugging mode. Mode Selection User Mode User Mode User Mode is using mode Default Useless Parameter When it’s on, the machine can only generate spark Standby Switch ON/OFF when pre-heating finished 5. DMX control ®...
- Page 9 Power ON all SPARKULAR TRIPLE. ® e) Assign DMX address for each unit of SPARKULAR TRIPLE. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine. ®...
- Page 10 c) Please note each RFID card come with 200g package HC8200 can increase single machine ® 20min working time, the maximum recharge time for SPARKULAR TRIPLE is 60min, when time remain reached 60min, it can’t recharge anymore RFID card. C N . 00000001 5.
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
