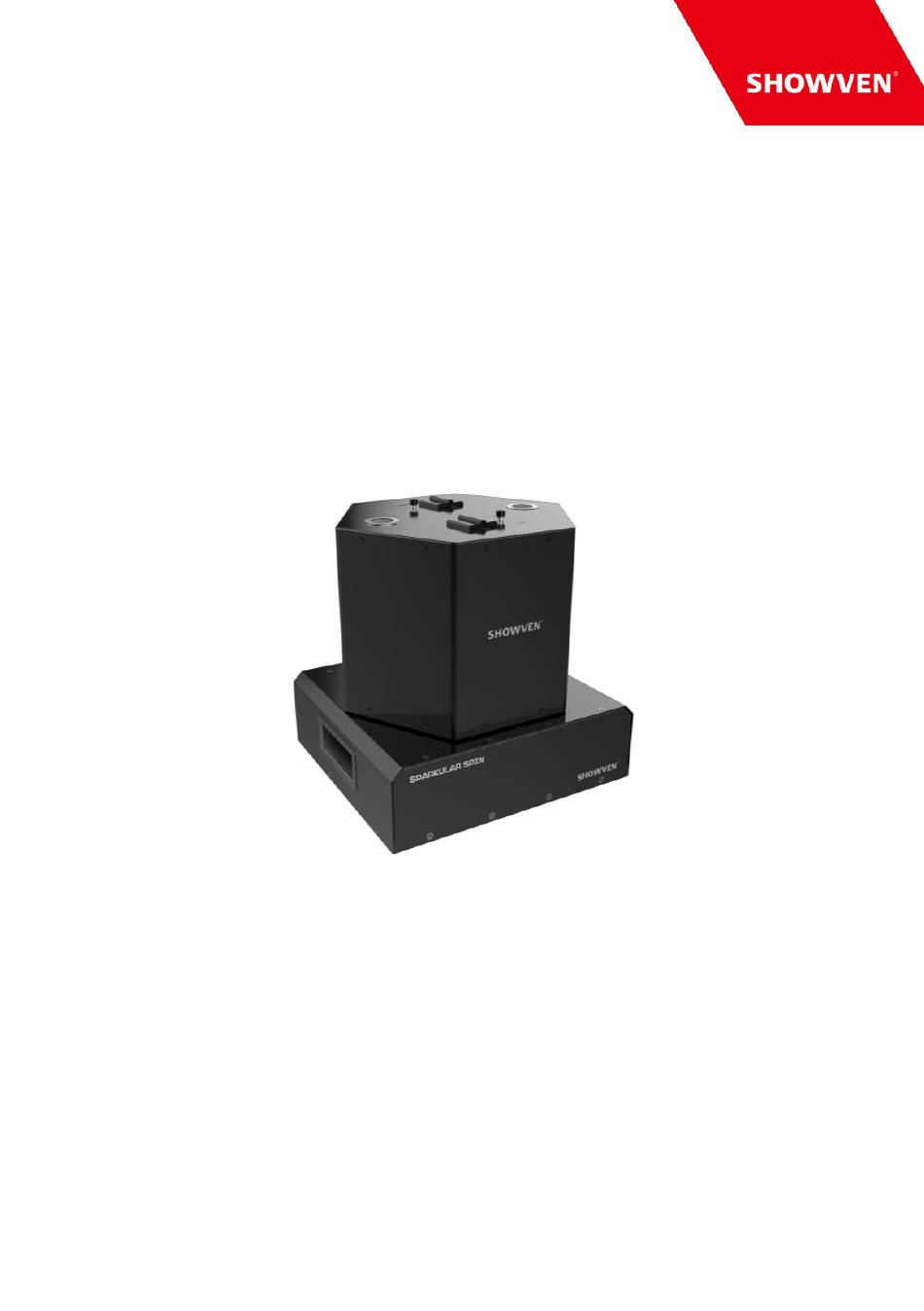

- Page 1 USER MANUAL SPARKULAR SPIN ® V2.1 2022/06/24 Showven Technologies Co., Ltd.
- Page 2 ® Thanks for choosing SPARKULAR SPIN, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. ® Keep SPARKULAR SPIN dry and do NOT use in rain or snow. ®...
- Page 3 SPARKULAR SPIN is another global pioneering SPARKULAR machine originally from ® SHOWVEN . With two 20° angled nozzles and bidirectional rotatable structure, it creates the waltz-like lissome and romantic sparks. With adjustable rotation direction, rotational speed ® and effect height, SPARKULAR SPIN bring a new visual effect to your events.
- Page 4 ® Structure of SPRKULAR SPIN Δ Output Nozzle Feeding Hopper Lid Cooling Fan LCD Screen 3-PIN DMX IN 3-PIN DMX OUT 5-PIN DMX IN 5-PIN DMX OUT Fuse Power Switch Power IN Power OUT Diagram of Bottom Panel...
- Page 5 Operation Panel Δ 1. LED display area READY DM X FAU LT HEAT READY: Turns from flashing into long on, indicates that the machine is ready to work. DMX: Flashing shows that DMX signal is connected; light OFF means there is no DMX signal FAULT: Light ON when error occurs HEAT: Light ON when system is heating up...
- Page 6 Range Default Explanation Set inner core temp. Please don't change default value without engineer's suggestion Set Temperature 480-620 ® from SHOWVEN Auto heat ON/OFF when switch on machine Auto Heat ON/OFF 10-100 Sparks density Density Factory Mode/ Factory mode is for engineer only. When in...
- Page 7 DMX console/host controller DMX Channel 2 Channel Channel mode set. 4 channel is for 2 DMX channel Mode 4 Channel professional control with lighting console Standby function. When ON, the machine Standby Switch ON/OFF can firing only when heating up was finished SL1 Test / SL2 Drive Test...
- Page 8 16-255 Nozzle 1 effect height adjust Second channel (Status) Function 0-10 Pre-heat OFF (disabled when auto-heat ON) 20-40 Emergency Stop 60-80 Clear Material 240-255 Pre-heat ON (disabled when auto-heat ON) Third Channel (Nozzle 2) Function 0-15 Nozzle 2 Fountain OFF 16-255 Nozzle 2 effect height adjust Fourth Channel(Spinning Control)
- Page 9 Power ON all SPARKULAR SPIN. ® e) Assign DMX address for each unit of SPARKULAR SPIN. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine. ®...
- Page 10 6. Turn off and Clean up ® ® a) Power off SPARKULAR SPIN, allow SPARKULAR SPIN to cool down. b) Disconnect all POWER and DMX cables. c) Empty the remaining HC8200 in hopper, and store the remaining HC8200 in a dry sealed bottle for next time use.
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
