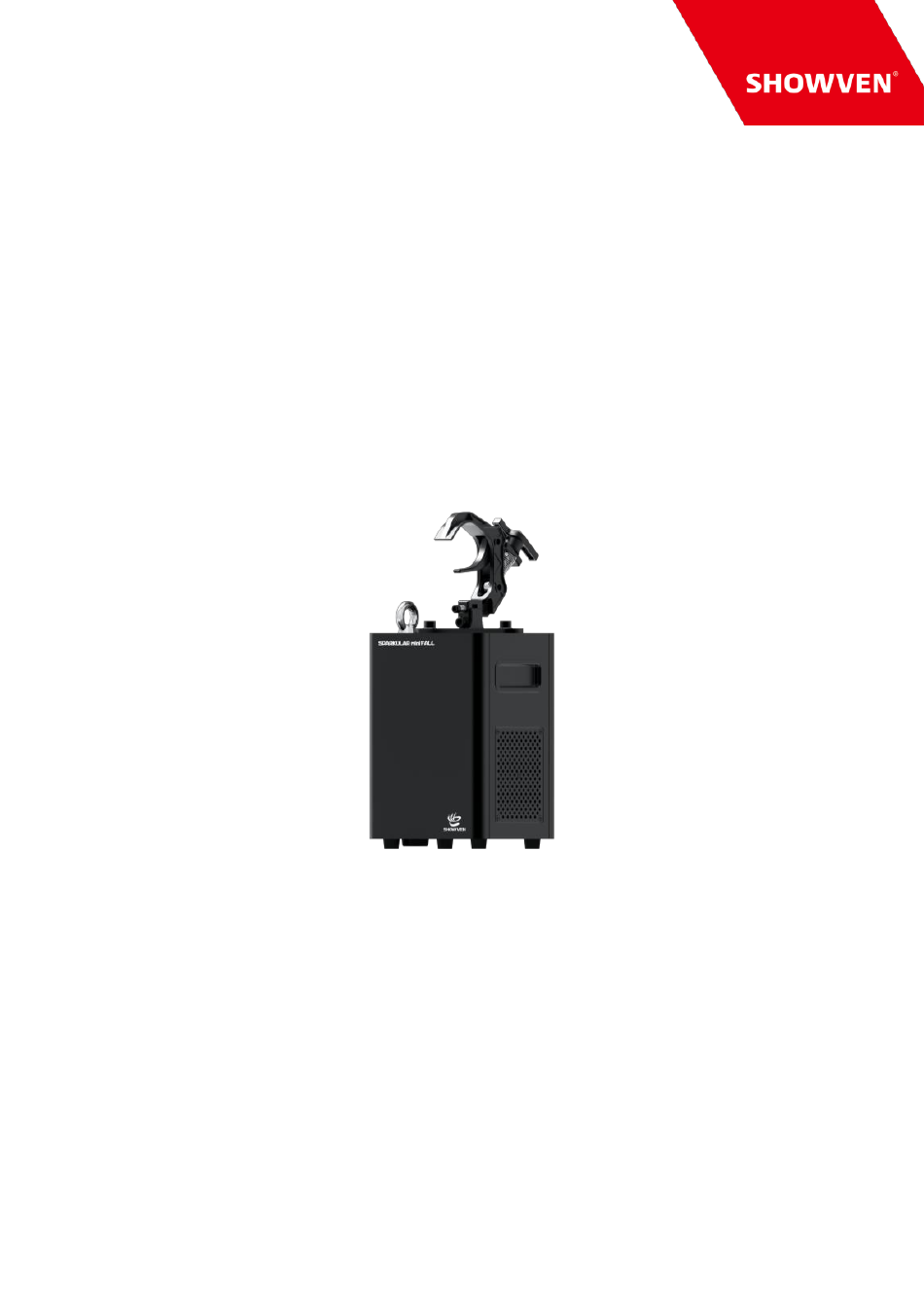

- Page 1 USER MANUAL SPARKULAR miniFALL ® V3.0 2022/12/15 Showven Technologies Co., Ltd.
- Page 2 ® Thanks for choosing SPARKULAR miniFALL, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. ® Keep SPARKULAR miniFALL dry and do NOT use in rain or snow. ®...
- Page 3 Description Δ ® SPARKULAR miniFALL (NEW) is a new update based on previous version, it based on our new spark generation platform and adopts a new feeding structure which greatly prolongs the stab ility of machine. It is an ideal sparks waterfall effects solution for party, stage, clubs, studios etc. ®...

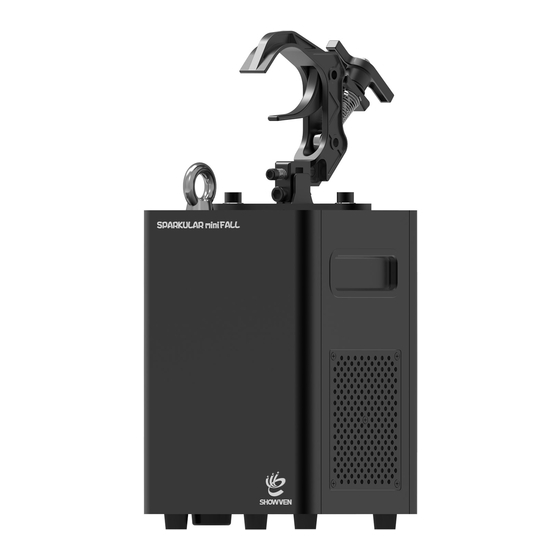

- Page 4 Safety Loop; Clamp Feeding Hopper Heat Dissipate Area DMX OUT DMX IN LCD Screen POWER OUT POWER IN Fuse Power Switch Cooling Fan Schematic diagram of the top fixing hole Technical Specifications Δ MODEL: BT14 Dimension: 150× 160× 240mm Hopper capacity: 310g Material Consumption: 15g/min Weight: 3.6kg Input: 100-240V, 50/60Hz...
- Page 5 Operation Panel Δ 1. LED display area READY DM X FAU LT HEAT READY: Flash means machine is preparing, LED keeps on means ready to work DMX: Flash means DMX signal is connected, light OFF means there is no DMX signal FAULT: Light ON when error occurs HEAT: Light ON when system is heating up...
- Page 6 Default Options Range Explanation Setup inner Core temperature. Please Set Temperature 500-620 don't change default value without engineer's suggestion from SHOWVEN Auto preheat function switch after turn Auto Heat ON/OFF on machine Adjust the sparks density. Please don't Density 70-100...
- Page 7 Open powder bags and fill the feeding hopper. Hopper capacity of SPARKULAR miniFALL is 280g. b) Make sure the powder is originally from SHOWVEN or SHOWVEN authorized distributor, other types of powder may block even damage the machine. c) Choose correct consumable according to the hanging height and safety distance.
- Page 8 Power ON all SPARKULAR miniFALL. ® e) Assign DMX address for each unit of SPARKULAR miniFALL. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine. ®...
- Page 9 ® a) Swipe an RFID card. Read the card as show below. SPARKULAR miniFALL shows time remain if read successfully. ® b) SPARKULAR miniFALL will report E4 when remaining time is less than 8 minutes. c) Please note each RFID card come with 50g package HC8200 can increase single machine ®...
- Page 10 When use wireless remote control, please unplug DMX cable connection on machine, set Wireless Control at ON status, match the remote controller with machine. 2. Remote controller A: OFF / SET, All machine OFF, SET means match machine with remote controller. B: ON C: Pre-Heat, press “C”...
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
