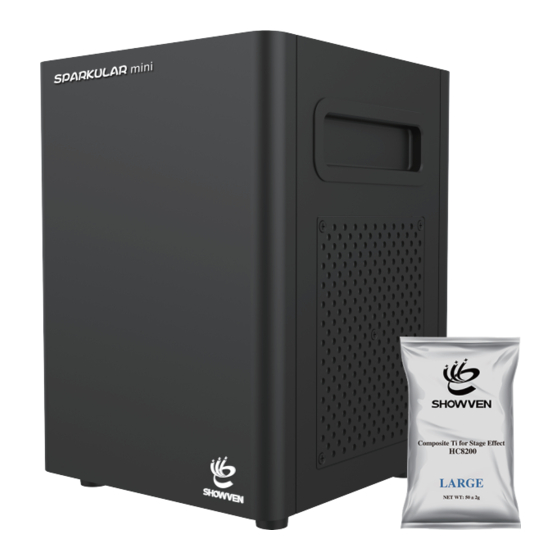

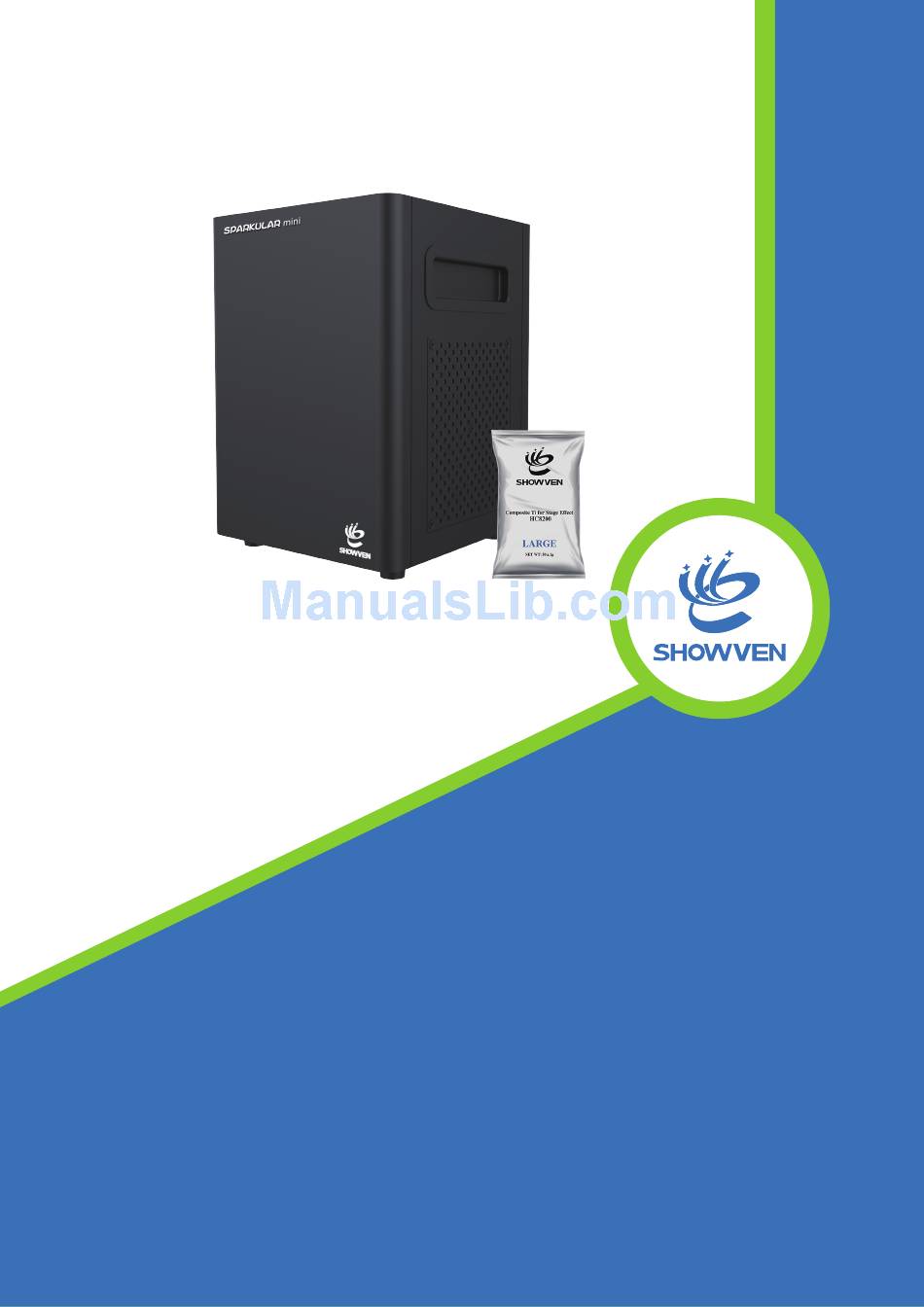

- Page 1 V1.0 User Manual Sparkular mini Liuyang Xiaowen Electronic Technologies Co., Ltd...
-
Page 2: Security Considerations
Responsibility Excellence Innovation User Manual Sparkular mini Please read this manual carefully before operating this product. This manual contains the warranty card, please keep it well. 1-1 Security Considerations . 》Unauthorized repair are prohibited, it may cause serious incident. 》Keep SPARKULAR mini dry and do NOT use in rain or snow. 》Make sure lid of feeding hopper are well covered when use Sparkular mini.Acci dentally Burning of Composite Ti can only use sands to extinguish. - Page 3 Responsibility Excellence Innovation Sparkular Mini Model No.BT06 Parameter Size 168×180×228mm Weight 4.5kg Input Parameter 200-240VAC, 50/60Hz Working Power 300w Working Temperature -10℃~ 50 ℃ Casing 2.0m~3.5m,Depend on different type of Fountain Height composite Ti Double DMX input interfaces, double AC Interface power interfaces Advantages：...
-
Page 4: Operation Panel
Responsibility Excellence Innovation Operation Panel: LCD information display area, showing operate menu and working status of machine. Light emitting diode display area： READY：After turn on machine, it will automatically preheat around 5 minutes, when the "READY" green light turns from flashing into long on, indicates that the machine is ready to work. -
Page 5: Main Interface
Responsibility Excellence Innovation Interface Main Interface: First line : Display DMX address is “1”. Second line : Display the present inner core temperature and the temperature progress bar; displays remianing time is 7 minutes and 24 seconds. Error informations display table： Error Informations Introductions E0 System IC... -
Page 6: Advanced Menu
Responsibility Excellence Innovation Advanced menu： Press “MENU” 3 seconds to enter the advanced setup interface, press MENU key to enter different options, press MENU till 3 seconds to return to the main interface. Options Range Instructions Set Temperature 500-610 Setup inner Core temperature. Auto Heat ON/OFF Auto preheat function switch after turn on machine... - Page 7 Responsibility Excellence Innovation 1 ON Address “1” ON 1 OFF Address “1” OFF 2 ON Address “3” ON 1 OFF Address “3” OFF 3 ON Address “5” ON 1 OFF Address “5” OFF Automatically clean When use different CLEAR material for 3 remote control seconds All Starts 5...
- Page 8 Responsibility Excellence Innovation Cable DMX mode： When using the DMX controller, the system takes 2 channels The First channel Functions 0-15 Fountain OFF 16-255s Fountain ON The second channel Functions 60-80 Clear Material 20-40 Emergency Stop 0-10 Pre-heat OFF 240-255 Pre-heat ON Page-7 / 8...
-
Page 9: Warranty Instructions
3.Damage caused by external reasons (lightning strike, power supply etc); 4.Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice and warranty card are necessary when asking for service from SHOWVEN. -------------------------------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------- Warranty card Product Name：... - Page 10 Responsibility Excellence Innovation Liuyang Xiaowen Electronic Technologies Co., Ltd Add：Building B1, Changsha E-center No.18, Xiangtai Road, Economic & Technology Development Zone, Hunan, China Tel：+86-731-83833068 Fax：+86-731-83833069 Web：www.showven.com E-mail：info@showven.com...
