1 Tip
Spare part
1 Piston cartridge
930 Compact IC Flex ChS (2.930.1200)
2

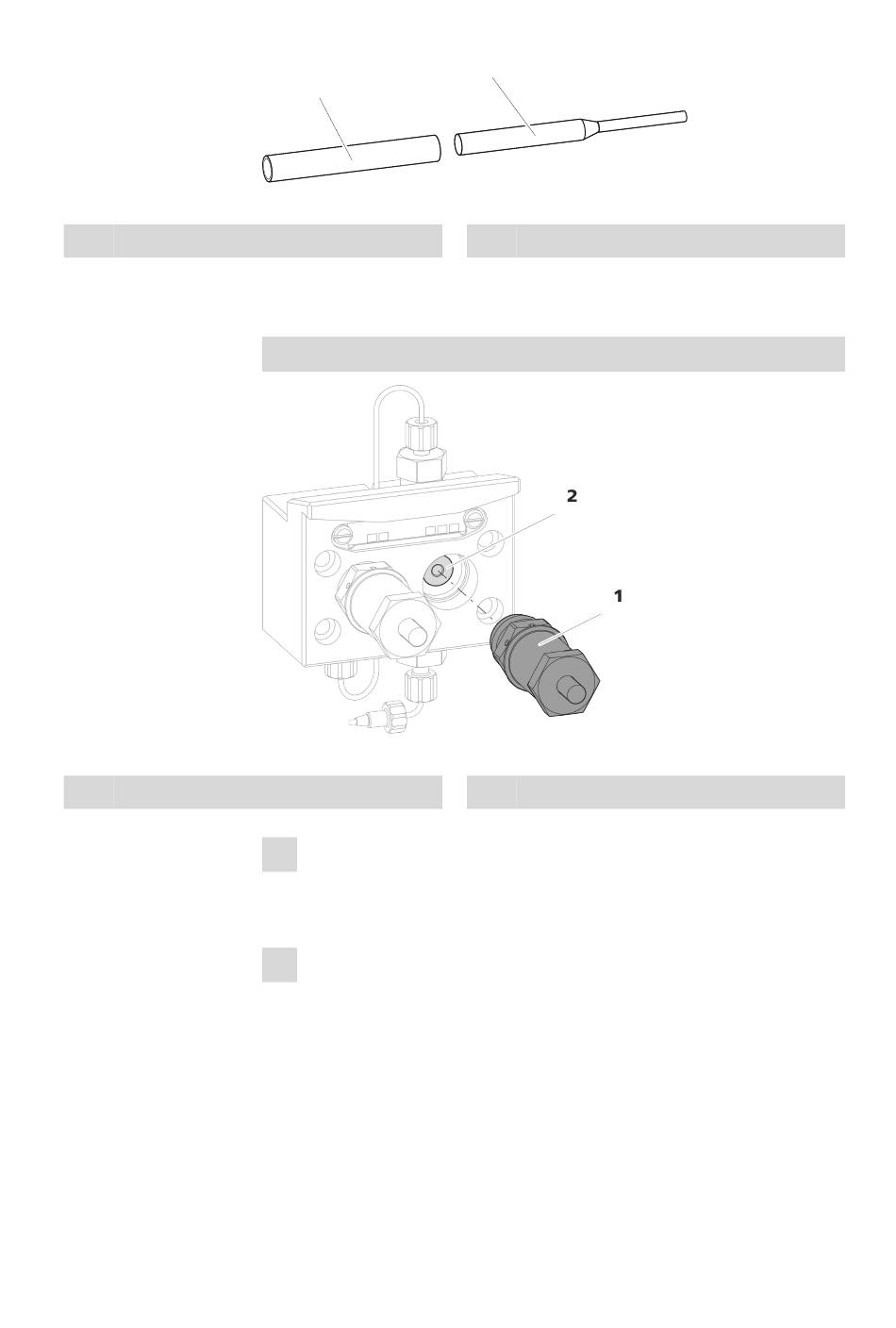

Figure 16 Tool for piston seal (6.2617.010)
For this step, you need a new piston seal (6.2741.020).
Replacing the piston seal
Figure 17 Removing the piston cartridge from the pump head
1 Removing the piston cartridge
Loosen the piston cartridge (17-1) using the adjustable wrench and
then unscrew it from the pump head by hand. Set it aside.
2 Removing the backup ring
Shake the backup ring (17-2) out of the piston opening. Set it aside.
1
2 Sleeve
2 Backup ring
5 Operation and maintenance
￭￭￭￭￭￭￭￭
63
