TOUCH CALI: After pressing the confirmation window, it will appear as shown in the screen above.
Touch screen to recalibrate. Then, a blue screen appears and please click the place of the cross with
your mouse.
ELECTRONIC
Ø
Output VOL: Select the rated output voltage.
n
There are four options, 208 V, 220V, 230V and 240V.
Ø
FRE output: Select the rated frequency of the output.
n
50Hz: Output frequency is set to 50Hz.
n
60Hz: Output frequency is set to 60Hz.
Ø
CVCF mode (constant voltage and constant frequency function)
n
Enable: The CVCF function is enabled. The output frequency will be set at 50Hz or 60Hz according
to the "Output Frequency" setting. The input frequency can be from 46Hz to 64Hz.
n
Disable: The CVCF function is disabled. The output frequency will be synchronized with the bypass
frequency within 46
default setting.
Ø
Bypassing the Ban:
n
Enable : Bypass Forbid is enabled. It is not allowed to run in Bypass mode under any
circumstances.
n
Disable : Forbid bypass is disabled. The UPS will run in Bypass mode. This is the default setting.
Ø
Neutral Path Check : Check whether the neutral path is connected correctly or not.
n
Disable: Disable the neutral loss detection function. The UPS will not detect neutral loss or not.
n
Auto: The UPS will automatically detect neutral missing or not. If neutral loss is detected, an alarm
will be generated. If the UPS is turned on, it will switch to battery mode. When neutral is restored
and detected, the alarm will be turned off automatically and the UPS will return to normal mode
automatically.

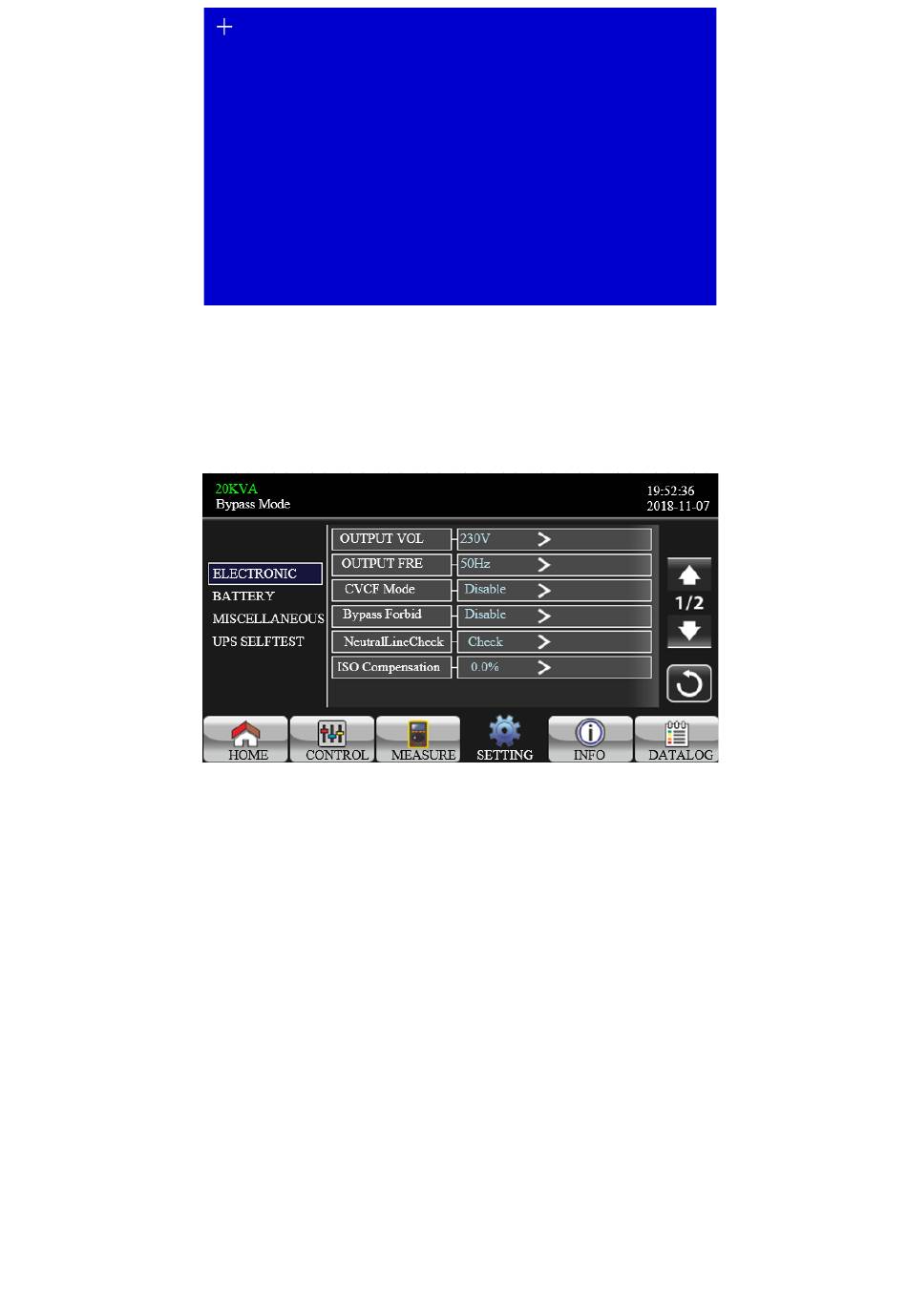

INITIAL TOUCHES OF àCALI
Electrical Setting Page 1
~
54 Hz for 50Hz systems or within 54
~
64 Hz for 60Hz systems. Disable is the
