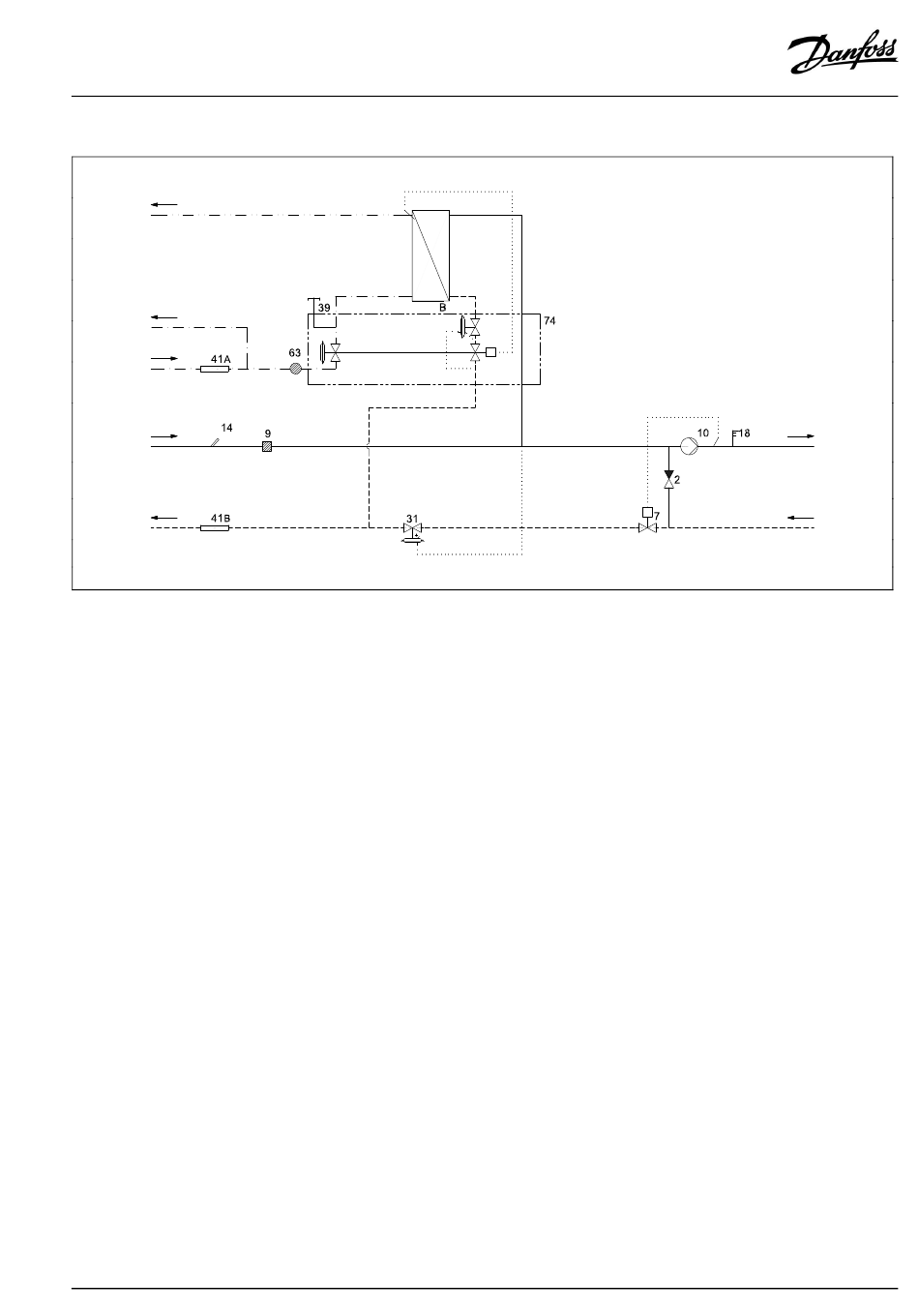

5.2 Schematic diagram

DHW
DCW
CWM
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
Schematic description
B Heat exchanger, DHW
2
Single check valve
7
Thermostatic valve
9
Strainer
DHW: Domestic Hot Water
DCW: Domestic Cold Water
CWM: Cold Water Mains
DH Supply: District Heating Supply
District Heating Return
DH Return:
HE Supply: Heating Supply
HE Return: Heating Return
5.2.1 Technical parameters
Technical parameters
Nominal pressure:
Max. DH supply temperature:
Min. DCW static pressure:
Brazing material (HEX):
Heat exchangers test pressure:
Sound level:
AQ110886479343en-010601 / LUK4025001
10 Circulator pump
14 Sensor pocket, energy meter
18 Thermometer
31 Differential pressure controller
PN 10 (PN 16 versions are available on enquiry)
110 °C
1.0 bar
Copper
30 bar
≤ 55 dB
39 Connection closed
41A Fitting piece, cold water mains
41B Fitting piece, energy meter
63
Sieve
74
IHPT controller
