Panel; Front Panel - AV Access 4KSW41-KVM-Pro User Manual

Panel

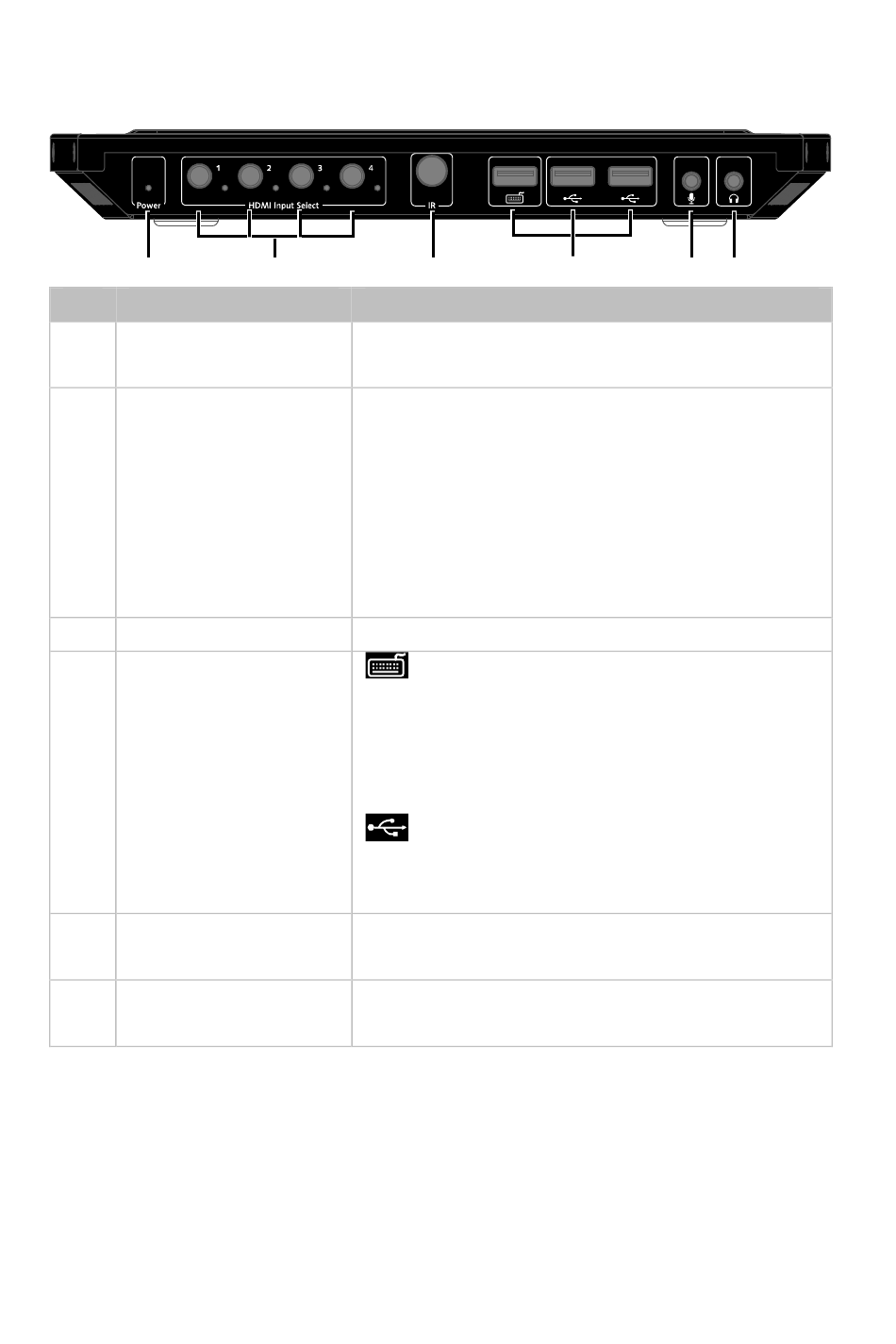

Front Panel

1
No. Name
1 Power LED
HDMI Input
Selection Buttons
2
(1~4) and LEDs
(1~4)
3 IR Receive Window
4 USB
5 MIC In
6 Line Out
www.avaccess.com
3
2
Description
On: The device is powered on.
Off: The device is powered off.
HDMI Input Selection Button (1~4): Press
the button to select HDMI In (1~4) as input.
LED: LED is located on the right of the
button.
On: The corresponding HDMI In is selected.
Off: The corresponding HDMI In is not
selected.
Receive IR signal.
: USB 1.1 type-A port, can be used to
connect to a USB slave device (such as
keyboard) for KVM function. When connect
a keyboard to it, the keyboard can be used
for Hotkey function.
: USB 2.0 type-A port, can be used to
connect to USB 2.0 high-speed device for
KVM function.
Connect to a Microphone. The Microphone
follows the HDMI Input source selected.
Connect to an earphone. The earphone
follows the HDMI Input source selected.
3
Introduction
4
5 6
