- Page 1 2 x 1 Dual-Monitor KVM Dock Switcher KD-E20 User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents........................3 Panel .............................. 3 Front Panel ......................... 3 Rear Panel ........................... 4 Charging ........................5 Resolution ....................... 6 Application......................7 Specifications ......................8 Warranty........................ 10 www.avaccess.com info@avaccess.com... -
Page 3: Introduction

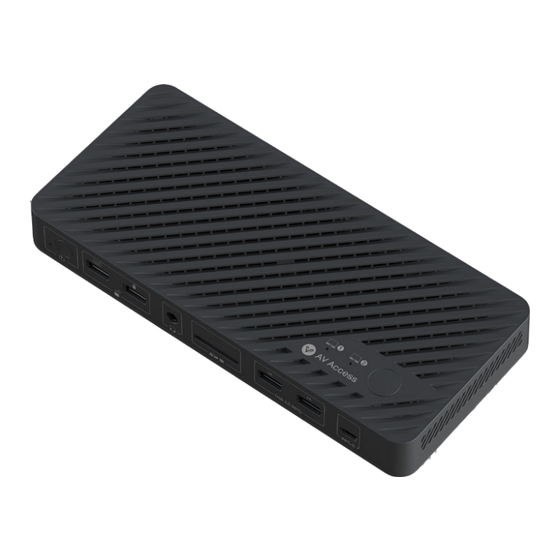

Introduction Overview KD-E20 is a multi-function 2x1 KVM switch docking for personal home office and entertainment. It can be used as the core device for home or office, which can be connected to two USB-C laptops and two HDMI monitors. This... -
Page 4: Package Contents
Introduction Package Contents Before you start the installation of the product, please check the package contents: Switcher x 1 Power Adapter (DC 12V/3A) x 1 USB 3.2 Gen 2 Type-C to Type-C Cable (L = 1m) x 2 ... -
Page 5: Rear Panel
Name Description headphone with microphone. The headphone switching follows the USB-C in port selected and need to select "AV Access KD-E20" on the connected host device. SD Slot SDXC port. Insert SDXC card. USB 3.0 type-A ports, can be used to connect to USB 3.0 (1.0A) -
Page 6: Charging
Charging Name Description USB-C In (Ports 7 & 9). Note: This port can only charge the laptop, not power the switcher. It is recommended to use the USB-C power adapter that comes with the laptop, or an adapter of equivalent power. USB 3.0 type-C ports. -
Page 7: Resolution
Resolution or a charger with equivalent specifications (power). USB-C Charging Laptop Note: The adapter connected to the Charging port will only charge the laptop connected to the USB-C In port, and will not provide power to the KVM switcher. The KVM switcher must be connected to the power adapter in the accessories. -
Page 8: Application
USB-C’s MST dual-screen. All peripherals including all USB devices, the connected headphone (the laptop needs to select the “AV Access KD-E20”), and SDXC card will be connected to the laptop connected (if inserted). When charging the connected laptop through USB-C In port in Laptop ... -
Page 9: Specifications
Specifications Specifications Technical USB-C supports: 100W Charging (PD 2.0), USB 3.0 (up Input to 5Gbps), and up to 4K@60Hz (DP MST) two video transmission Output HDMI 2.0b, up to 4K@60Hz 4:4:4 8bit and HDCP 2.2 USB-C x1: Up to 5Gb/s, 1.5A power output. USB-A x5: •... - Page 10 Specifications General Storage Temperature -20 to +70°C (-4 to + 158 °F) Humidity 20% to 90%, non-condensing Power Consumption 28.2W (Max) Device Dimensions 220mm x 25.2mm x 100mm/ 8.66’’ x 0.99’’ x (W x H x D) 3.94’’ Product Weight 0.72kg/1.59lbs www.avaccess.com info@avaccess.com...
-
Page 11: Warranty
Warranty Products are backed by a limited 1-year parts and labor warranty. For the following cases AV Access shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
