Summary of Contents for AV Access 4KSW21-DM

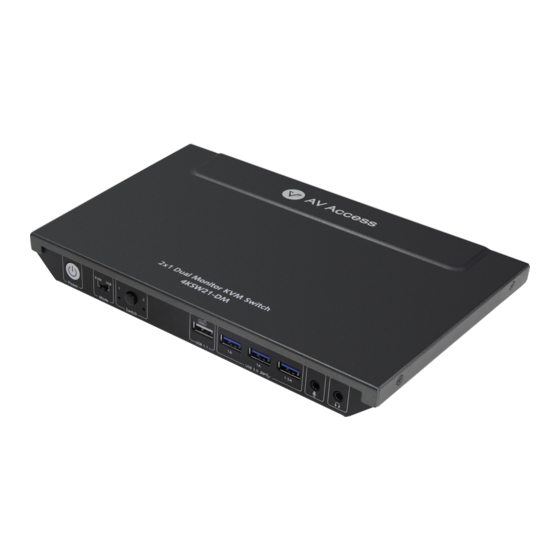

- Page 1 4KSW21-DM 2 x 1 Dual-Monitor KVM Switcher User Manual...
- Page 2 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 3 Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 4: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................3 Panel ............................4 Front Panel ........................4 Rear Panel ........................5 Application ......................6 KVM Mode ..........................6 USB Mode ..........................7 Control of the Switcher ..................8 Front Panel Control ....................... -
Page 5: Introduction
Introduction Overview 4KSW21-DM is a 2x1 HDMI KVM Switcher with dual-channel switching and hotkey switching. It supports HDMI 2.0 and HDCP 2.2 compatibility, and supports resolutions up to 4K@60Hz 4:4:4 8bit and can also transmit USB 3.0 signal up to 5Gbps for KVM function. -
Page 6: Package Contents
Introduction the PC in sleep mode, it will automatically wake up the PC and no other operations are needed. Fast switching, based on the virtual interaction function. One USB 1.1 port for keyboard and three USB 3.0 ports for USB devices. ... -
Page 7: Panel
Introduction Panel Front Panel Name Description Power Switch Press to power on/off the device. KVM: Set the device to “KVM” mode (default). USB: Set the device to “USB” mode. Mode Note: Detail information, please refer to “Application” section. Press to select input group between HDMI In 1A/1B and HDMI In 2A/2B. -
Page 8: Rear Panel
Introduction Rear Panel Name Description DC 12V Connect to the power adapter provided. Connect to two HDMI output ports of PC respectively. HDMI In 1A & 2&4 HDMI In 1A and HDMI In 1B can be seen as a group, hereinafter referred to as group 1 in this manual. -
Page 9: Application
Application Application Warnings: Before wiring, disconnect the power from all devices. During wiring, connect and disconnect the cables gently. The switcher supports two application modes: KVM mode and USB mode. It can be set through DIP switch on front panel. By default, the switcher is in KVM mode. KVM Mode Switch the DIP switch to “KVM”... -
Page 10: Usb Mode
Application In this mode, when switch input source to group 1 or group 2: The connected USB devices, microphone and earphone can be connected to Host PC 1 or 2. When switch to group 1, the display connected to Monitor A and Monitor B ... -
Page 11: Control Of The Switcher
Control of the Switcher Control of the Switcher You can choose to switch input sources at your convenience through front panel button or Hotkey function. Front Panel Control Users can choose to use front panel button to do basic switching operations. Connect the switcher as required and power on all the attached devices. -
Page 12: Specifications
Specifications Key Operation Function Press “Hotkey” + “Left” Switch to previous input group (Cycle group 2->1). Press “Hotkey” + “Right” Switch to next input group (Cycle group 1->2). For example: If you want to use the “Left Ctrl” as a hotkey, press the “Left Ctrl” key twice quickly to switch the hotkey to it, and other hotkeys are invalid. - Page 13 Specifications General Operating Temperature 0°C to + 45°C (32 to + 113 °F) Storage Temperature -20 to +70°C (-4 to + 158 °F) Humidity 20% to 90%, non-condensing Power Consumption 3.6W (Maximum) Device Dimensions 230mm x 26.2mm x 142.6mm/ 9.06’’ x 1.03’’ x 5.61’’ (W x H x D) Product Weight 0.83kg/1.83lbs...
-
Page 14: Trouble Shooting
Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on. (source, switcher, display devices). Devices: Please make sure picture can be shown normally when connecting source to display devices directly. Cable: Plug in and out HDMI/USB cable or try another HDMI/USB cable. Compatibility: Please test other source and display devices to determine whether it is a compatibility issue. -
Page 15: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 16 AV Access Technology Limited V1.0.0...
