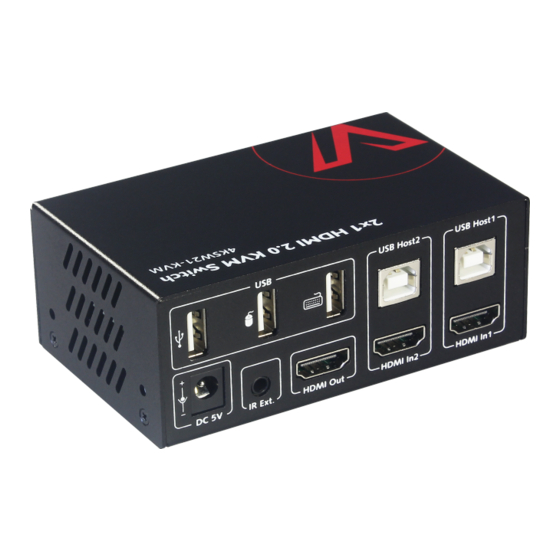

- Page 1 2x1 HDMI KVM Switcher 4KSW21-KVM User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................2 Overview ..........................2 Features............................ 2 Package Contents ........................ 2 Panel ............................3 Application ...................... 4 IR Remote Handset ..................5 Specification ....................6 Warranty ......................7 www.avaccess.com info@avaccess.com... -
Page 3: Introduction
Introduction Introduction Overview 4KSW21-KVM is a 2x1 HDMI KVM Switcher. It supports resolutions up to 4K@60Hz 4:4:4, multi-channel audio and automatic HDCP 2.2/1.4 compatibility. It allows users to control two USB host devices with only one set of USB devices (e.g. USB mouse, USB keyboard, USB flash and other USB2.0 compliant devices). -
Page 4: Panel
Introduction Panel Name Description IR In Receives control signal from the IR remote. On: The device is powered on. Power Off: The device is powered off. HDMI Input Selection Button: Press to switch between two input sources. HDMI Input Select ... -
Page 5: Application
Application Application Earphone Line Out Mic In Power Supply Camera Mouse Keyboard USB Device USB Device USB Device USB Host HDMI Out USB Host HDMI In HDMI In Display IR Remote www.avaccess.com info@avaccess.com... -
Page 6: Ir Remote Handset
IR Remote Handset IR Remote Handset This switcher can be controlled by the IR remote provided. Point the IR remote directly at the IR receive cable connected to the "IR Ext." port or point the remote directly at “IR In” window on front panel, you can easily select the desired input source. -
Page 7: Specification
Specification Specification Video HDMI with 4K@60Hz 4:4:4, HDCP 2.2; Input/Output Signal Type USB: USB2.0 SMPTE: 1280x720P , 1920x1080I 1,2,3,4,5,6,7,8 1920x1080P , 2560x1080 , 3840x1080 1,2,3,4,5,6,7,8,9 3840x2160 2,3,5,6,8 , 4096x2160 2,3,5,6,8 VESA: Input/Output Resolutions 800x600 , 1024x768 , 1280x768 , 1280x800 Supported 1280x960... -
Page 8: Warranty
2. The warranty has expired. 3. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
