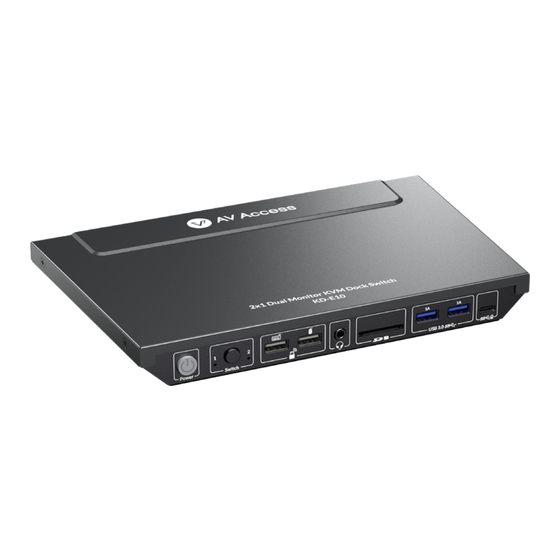

  • Page 1 2 x 1 Dual-Monitor KVM Dock Switcher KD-E10 User Manual...

  • Page 2: Table Of Contents

    Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................3 Panel .............................. 3 Front Panel ......................... 3 Rear Panel ........................... 4 Application......................5 Specifications ......................6 Warranty ......................... 8 www.avaccess.com info@avaccess.com...

  • Page 3: Introduction

    Introduction Overview KD-E10 is a multi-function 2x1 KVM switch docking for personal home office and entertainment. It can be used as the core device for home office, which can be connected to a USB-C laptop for meeting and office, and it can also be connected to a desktop to provide users with gaming and entertainment needs.

  • Page 4: Package Contents

    3.5mm TRRS headphone jack. Connect to a headphone with microphone. The headphone Headphone switching follows the USB Host port selected and need to select "AV Access KD-E10" on the connected host PC. SD Slot SDXC port. Insert SDXC card. USB 3.0 type-A ports, can be used to connect to USB 3.0 (1.0A)

  • Page 5: Rear Panel

    Introduction Name Description data only, and output 1.5A current. Rear Panel Name Description DC 12V Connect to the power adapter provided. USB 3.0 type-A ports. With 5V 1.5A supported, USB 3.0 (1.5A) it can be used for connecting USB devices with high power, such as connecting a USB Camera.

  • Page 6: Application

    Application Name Description videos (two 4K@60Hz maximum) at the same time. Note: The connected computer needs to support DP 1.4a standard and MST output outputting 4K@60Hz video channels. Supports PD 2.0. The port can charge the  connected laptop (up to 100W) when the Charging port is connected to the external power source.

  • Page 7: Specifications

    Specifications USB Camera Monitor 1 Laptop Ethernet Switch Extend A HDMI HDMI USB-C Extend B Hard Disk Keyboard Mouse Headset Printer Monitor 2 Specifications Technical Laptop: USB-C USB-C supports: 100W Charging (DP 2.0), USB 3.0 (up to 5Gbps), and up to 4K@60Hz (DP MST) two video transmission Desktop: DP + HDMI + USB-B Input...
  • Page 8 Specifications Technical Output HDMI 2.0b, up to 4K@60Hz 4:4:4 8bit and HDCP 2.2 USB-C x1: Up to 5Gb/s, 1.5A power output. USB-A x5: • Three USB 3.0 ports, up to 5Gb/s, and two of them supports 1A power output, and the other Peripheral and one supports 1.5A power output Expansion...

  • Page 9: Warranty

    Warranty Products are backed by a limited 1-year parts and labor warranty. For the following cases AV Access shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
