KVM Switch Docking with Dual Monitor
4KSW21-DK
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4KSW21-DK and is the answer not in the manual?

Questions and answers

Summary of Contents for AV Access 4KSW21-DK

  • Page 1 KVM Switch Docking with Dual Monitor 4KSW21-DK User Manual...
  • Page 2 Package Contents Package Contents Before you start the installation of the product, please check the package contents: Switch Docking x 1  Power Adapter (20V/6A) x 1  USB-C to USB-C cable (USB 3.2 Gen 2, 1m) x 1  USB-A to USB-B cable (USB 3.0, 1.5m) x 1 ...

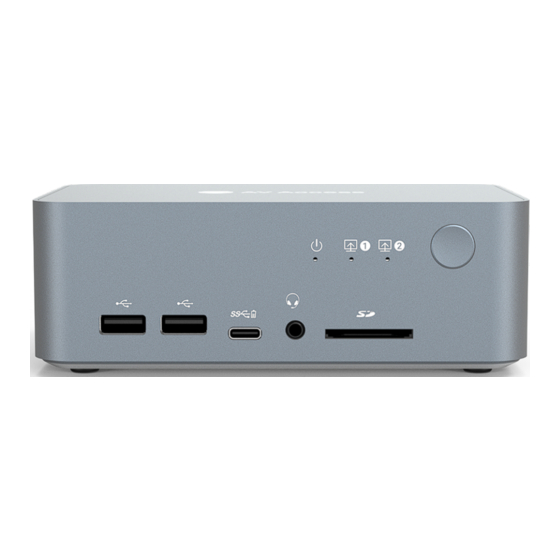

  • Page 3 Panel Panel 1. USB 2.0|2. USB-C|3. 3.5mm headphone jack | 4. SDXC card slot|5. Power (LED) | 6. Input Channel (LED) | 7. Button (Switch) 1. USB-C (Laptop) | 2. 1G LAN (Ethernet) | 3. DP IN | 4. HDMI IN | 5. USB-B (HOST) | 6.
  • Page 4 Application Application Laptop Monitor 1 Monitor 2 HDMI Extend A Extend B HDMI HDMI USB-C Rear Panel Front Panel Charging Hard Disk Camera Keyboard Mouse Phone Headset...
  • Page 5 Specification Specification Technical Laptop: USB-C USB-C supports USB 3.2 Gen 2 standard, up to 20Gb/s, with support for: 60W Charging, USB 3.0 (up to 5Gb/s), and Dual 4K@60Hz Input video (MST) Desktop: DP + HDMI + USB-B DP port support for DP 1.2a (up to 4K@60Hz); HDMI port support for HDMI 2.0 (up to 4K@60Hz);...
  • Page 6 Troubleshooting Troubleshooting The device doesn’t work? Please check if the POWER LED is light on the front panel. Please make sure to use the 20V/6A power supply provided in the accessories. An unsuitable or insufficient power supply may damage the product.
