- Page 1 2x1 Dual USB-C KVM Switch Docking iDock C20 User Manual...
- Page 2 Package Contents Package Contents Before you start the installation of the product, please check the package contents: Switch Docking x 1 Power Adapter (20V/10A) x 1 USB-C to USB-C cable (USB 3.2 Gen 2x1, 1m) x 2 User Manual x 1 ...

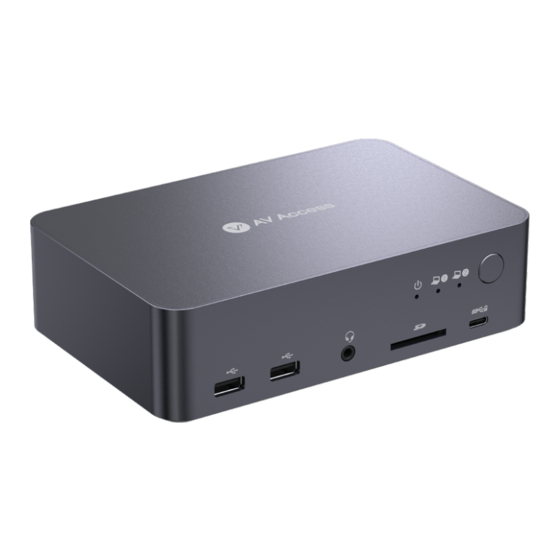

- Page 3 Panel Panel 1. USB-A (USB 2.0) | 2. 3.5mm composite headphone jack | 3. SDXC card slot | 4. USB-C | 5. Power (LED) | 6. Input Channel (LED) | 7. Button (Switch) 1. POWER IN (20V 10A) | 2. HDMI OUT (Dual 4K) | 3. USB-C IN | 4. 1G LAN (Ethernet) | 5.
- Page 4 Application Application Extended Monitor 1 Monitor 2 Hard Disk Printer Camera Control Button Extend A Extend B HDMI HDMI Front Panel Rear Panel USB-C USB-C Charging Keyboard Mouse Headset Phone Laptop Laptop Note: The LAN port can provide network connectivity to two connected USB-C laptops, no matter which one is selected.
- Page 5 Specification Specification Technical USB-C supports USB 3.2 Gen 2x1 standard, up to Input 20Gb/s, with support for: 60W Charging, USB 3.0 (up to 5Gb/s), and Dual 4K@60Hz video (MST) Output Two HDMI 2.0 outputs with HDCP 2.2 USB-C: Up to two 4K@60Hz outputs Resolution Support HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD,...
- Page 6 Troubleshooting Troubleshooting The device doesn’t work. Please check if the POWER LED is light on the front panel. Please make sure to use the 20V/10A power supply provided in the accessories. An unsuitable or insufficient power supply may damage the product.
