Summary of Contents for AV Access 4KMX42-H2A

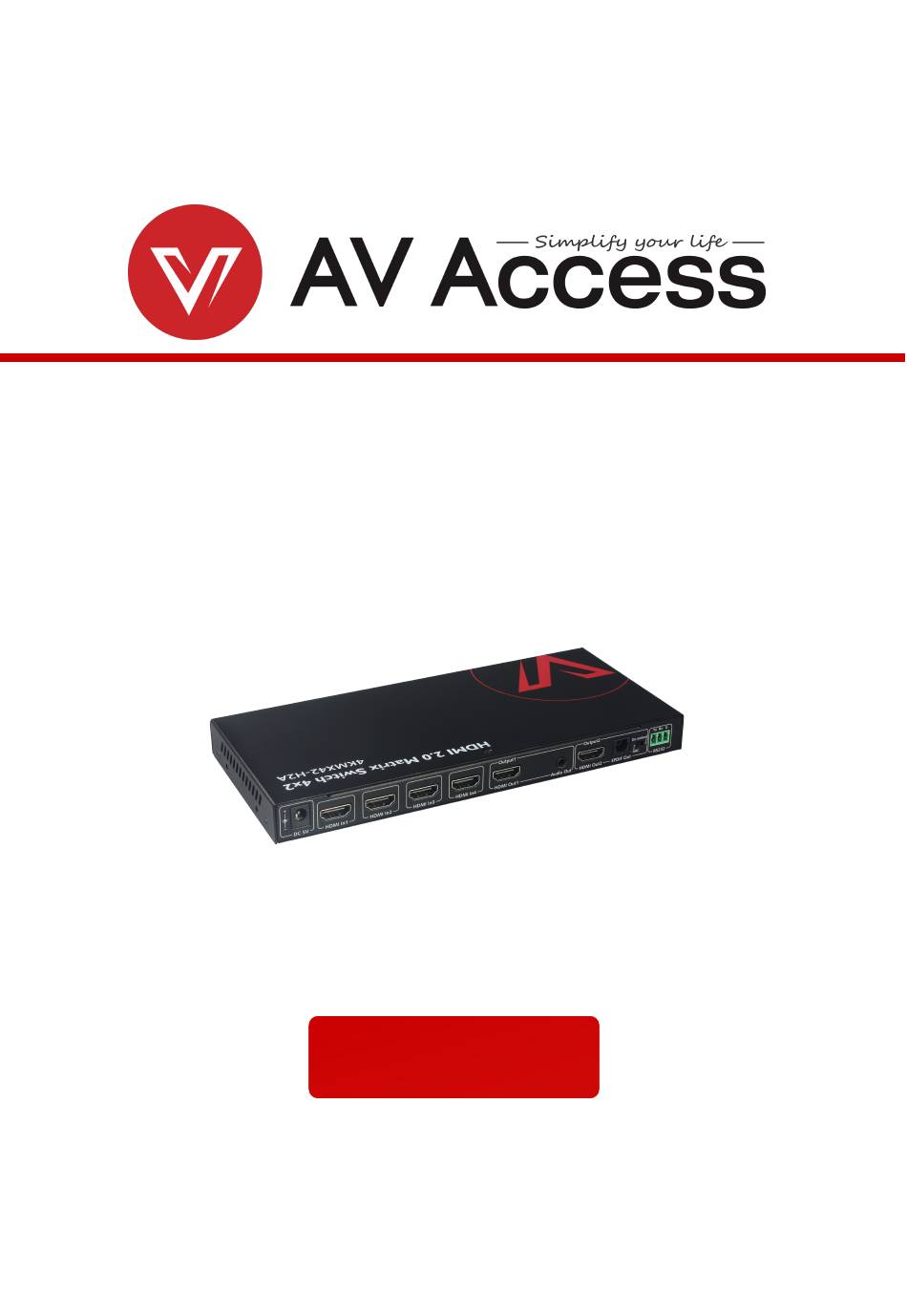

- Page 1 4KMX42-H2A 4 x 2 4K HDMI Matrix Switcher User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 5: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................3 Panel ............................4 Front Panel........................4 Rear Panel ........................4 Installation and Application................. 6 Brackets Installation ......................6 Typical Application ........................ 6 IR Remote Control ....................8 System Code Switch ...................... -
Page 6: Introduction

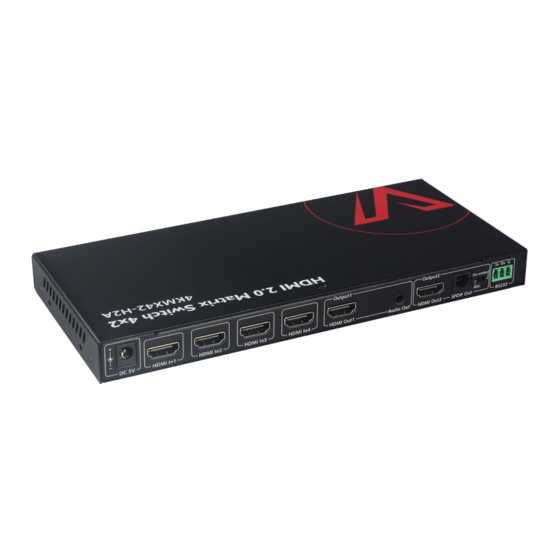

Introduction Introduction Overview 4KMX42-H2A is a 4x2 HDMI matrix switcher with HDCP 2.2 compatibility, it allows up to four Ultra HD 4K sources to be independently routed to two Ultra HD displays. It features resolutions up to 4K@60Hz 4:4:4 8-bit. It supports digital optical audio de-embedding from output 2 and analog audio de-embedding from ouput1. -
Page 7: Package Contents
Introduction Package Contents Before you start the installation of the product, please check the package contents: 4KMX42-H2A x 1 Power Adapter with US Pins (DC 5V 1A) x 1 IR Remote x 1 Phoenix Male Connectors (3.5mm, 3 Pins) x 1 ... -
Page 8: Panel
Introduction Panel Front Panel Name Description On: The device is powered on. Power LED Off: The device is powered off. Click to select input source for Output1. Output1 Switch Button On: HDMI In (1-4) is selected. 3 & 5 Input LED (1-4) Off: HDMI In (1-4) is not selected. - Page 9 Introduction Name Description de-embedded audio output from HDMI Out1. Connect to audio devices such as AV system for digital de-embedded audio output from HDMI Out2 SPDIF Out or ARC audio output from the TV connected to HDMI Out2. De-embedded: SPDIF Out outputs de-embedding from HDMI Out2;...
-
Page 10: Installation And Application
Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the device in a suitable location: Attach the installation bracket to the enclosure using the screws provided in the package separately. - Page 11 Installation and Application Laptop Laptop Blu-ray Player 4K Media Player Connect HDMI sources (such as PC, Connect a control PC Blu-ray playe r, Apple TV, 4K media or control system to player, etc) to HDMI In 1-4 ports. RS232 port of the Matrix. Connect HDMI display AUDIO OUT device (such as TV,...
-
Page 12: Ir Remote Control
IR Remote Control IR Remote Control The included remote-control handset can be used to turn on and off a CEC-enabled display device and to switch the HDMI source for each display device. Turn off a CEC-enabled display device Turn on a CEC-enabled display device Select the next source input Select the previous source input Select a specific source input... -
Page 13: Rs232 Control
Connect a control PC or control system to the RS232 port of the switcher. We provide a fully documented API for 4KMX42-H2A, this is available on this page –SUPPORT button below product’s picture (http://avaccess.com/c1013.html). If you have questions, please contact us at services@avaccess.com. -
Page 14: Specification
Specification Specification Technical Input 4 x HDMI IN (Type-A female connector) Output 2 x HDMI OUT (Type-A female connector) HDMI with 4K@60 4:4:4, HDR 10, HLG & Dolby Video Signal Type Vision, HDCP 2.2 VESA: 800x600 , 1024x768 , 1280x768 1280x800 , 1280x960 , 1280x1024... - Page 15 Specification General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) Power Supply DC 5V 1A Power Consumption 3.3W (Maximum) Device Dimension...
-
Page 16: Trouble Shooting
Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Ensure the source, display devices and the switcher are powered on. Indicator: Ensure all LED indicators of the switcher are normal according to user manual. Devices: Ensure picture can be shown normally when connecting source to display device directly. -
Page 17: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 20 AV Access Technology Limited V1.0.1...
