Summary of Contents for AV Access 8KSW21DP-DM

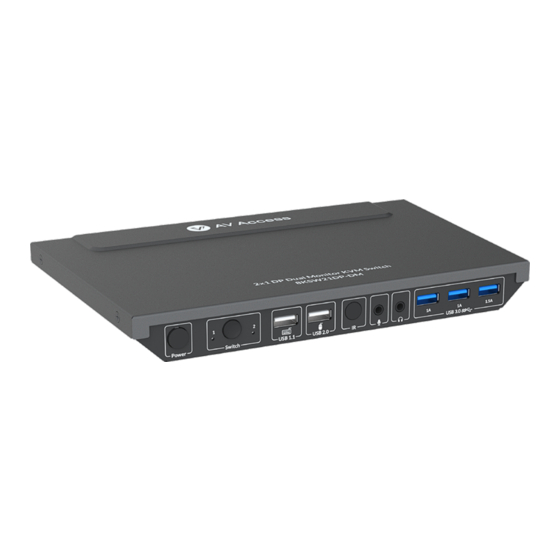

- Page 1 2x1 Dual-Monitor DP 2.0&1.4a KVM Switcher 8KSW21DP-DM User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................3 Panel .............................. 4 Front Panel ......................... 4 Rear Panel ........................... 5 Application......................5 Control of the Switcher................... 6 Front Panel Control ........................6 IR Remote Control ........................7 Hotkey Function ........................ -
Page 3: Introduction
Introduction Introduction Overview 8KSW21DP-DM is a 2x1 DP 2.0&1.4a KVM Switcher with dual-channel switching and hotkey switching. It supports latest DP 2.0/1.4a and HDCP 2.2 compatibility, and supports resolutions up to 8K@60Hz and can also transmit USB 3.0 signal up to 5Gbps for KVM function. It can share two monitors and USB devices between two PCs. -
Page 4: Package Contents
Introduction HDR - Supports all HDR formats. VRR - Supports VRR variable refresh rate. Multiple Peripherals interfaces: Three super high-speed USB 3.0 ports. One USB 2.0 port and one USB 1.1 port for keypad. Provides independent mic input and audio output (3.5mm ... -
Page 5: Panel
Introduction Panel Front Panel Name Description Press to power on/off the device. When the Power Button device is powered on, the backlight of the button will light blue. Press to select input group between DP In 1A/1B and DP In 2A/2B. LED 1&2: Switch Button On: Select DP In 1A and 1B or DP In 2A and 2B as... -
Page 6: Rear Panel
Application Rear Panel Name Description DC 12V Connect to the power adapter provided. Connect to two DP output ports of PC respectively. DP In 1A and DP In 1B can be seen 2&4 DP In 1A & 1B as a group, hereinafter referred to as group 1 in this manual. -
Page 7: Control Of The Switcher
Control of the Switcher When switch to group 2, the display connected to Monitor A and Monitor B will output video from DP In 2A and DP In 2B respectively. Power Supply PC 1 PC 2 Monitor 1 Monitor 2 PC 1A/2A PC 1B/2B HDMI Out... -
Page 8: Ir Remote Control
Control of the Switcher IR Remote Control The included remote handset can be used to turn on and off CEC-enabled display device and to switch two input groups to one display device. Point the remote handset directly at the IR windows on front panel. Reserved Select the previous input group Select the next input group... -
Page 9: Hotkey Function
Specifications Hotkey Function One USB 1.1 port on rear panel of the switcher supports keyboard Hotkey function. Supported Hotkey: Tab (default), Left Ctrl, Right Ctrl and Caps Lock Key Operation Function Press the “Hotkey” twice quickly Switch to this hotkey. Press “Hotkey”... - Page 10 Specifications Technical Note: Resolutions beyond 8K@60Hz require both the source and display device to support DSC 1.2 compression. HDR Format All HDR formats, including HDR 10, HLG, HDR 10+ Supported and Dolby Vision DP: Fully supports audio formats in DP 1.4a specification, including PCM 2.0/5.1/7.1, Dolby Audio Format TrueHD, Dolby Atmos, DTS-HD Master Audio and...
-
Page 11: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
