- Page 1 4x1 USB-C & HDMI KVM Switch 4KSW41C-KVM User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................3 Panel .............................. 3 Application......................5 Control of the Switcher................... 5 Front Panel Control ........................5 IR Remote Control ........................6 Hotkey Function ........................7 Specifications ...................... -
Page 3: Introduction

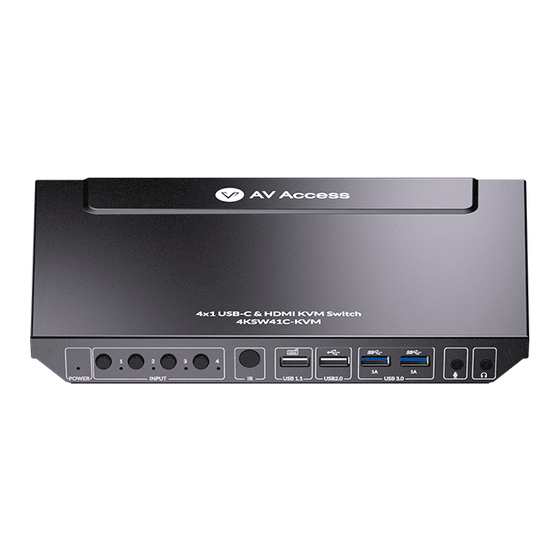

Introduction Introduction Overview This product is a 4x1 USB-C & HDMI KVM Switcher. It supports sharing among 4 different computers using a set of KVM devices. It supports one USB-C input and three HDMI 2.0+USB 3.0 inputs. The USB-C port provides full-featured support, including data, video, and charging functions, and can provide up to 60W of charging power to the connected laptop. -
Page 4: Package Contents
Introduction keyboard and can support hotkey switching; One mic in port and one line out port, for connecting with microphone and earphone. Supports multiple control options, including front panel buttons switch, IR remote, and hotkey switch (Keyboard must be connected to USB 1.1 port). - Page 5 Introduction Name Description USB 2.0: USB 2.0 type-A port, can be used to connect to USB 2.0 high-speed device (such as USB mouse, USB removable hard disk) for KVM function. It can supply maximum 5V/0.5A power output. USB 3.0: USB 3.0 type-A port, can be used to connect to USB 3.0 super-speed device (such as USB camera) for KVM function.
-
Page 6: Application
Application Name Description For charging the connected laptop with the abilities of 60W. HDMI IN 2~4 Connect to HDMI sources. HDMI OUT Connect to an HDMI display. USB type-B ports. Connect to USB HOST devices. The USB HOST 2~4 ports are bound with USB HOST 2~4 HDMI IN2~4 ports respectively, Note: Each set of USB HOST and HDMI port... -
Page 7: Ir Remote Control
Control of the Switcher 2/HDMI IN 3/HDMI IN 4 as the input source. IR Remote Control The included remote handset can be used to turn on and off a CEC-enabled display device and to switch four HDMI sources to one display device. Point the remote handset directly at the IR windows on the front panel. -
Page 8: Hotkey Function
Specifications Hotkey Function One USB 1.1 port on the front panel of the switcher supports keyboard Hotkey function. Supported Hotkey: Tab (default)/Left Ctrl/Right Ctrl/Caps Lock Key Operation Function Press the “Hotkey” twice Switch to this hotkey to set it as t current quickly hotkey. - Page 9 Specifications Technical 1280x960 , 1280x1024 , 1360x768 , 1366x768 1400x1050 , 1440x900 , 1600x900 , 1600x1200 1680x1050 , 1920x1200 , 2560x1440 8,9,10 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz.
-
Page 10: Warranty
Warranty Products are backed by a limited 1-year parts and labor warranty. For the following cases AV Access Technology Limited shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
