- Page 1 3x1 Dual Monitor USB-C&HDMI KVM Switcher 4KSW31C-DM User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................3 Panel .............................. 3 Front Panel ......................... 3 Rear Panel ........................... 4 Application......................6 Control of the Switcher................... 6 Front Panel Control ........................7 IR Remote Control ........................7 Hotkey Function ........................ -
Page 3: Introduction

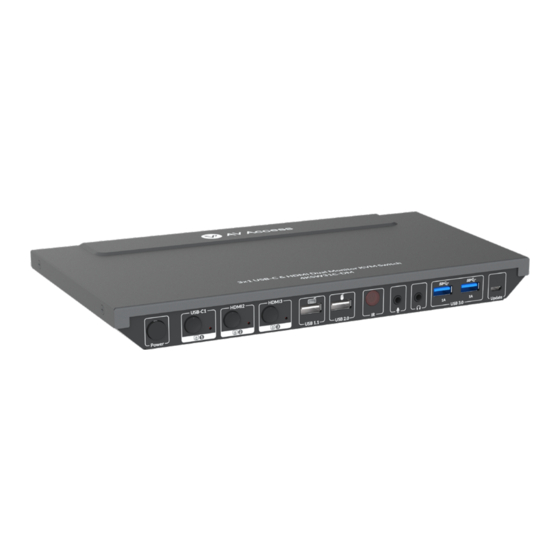

Introduction Overview 4KSW31C-DM is a 3x1 USB-C&HDMI KVM Switcher. It supports one USB-C input, two sets of dual channel HDMI + USB inputs and two HDMI outputs. The USB-C input supports DP MST mode, and can output two videos up to 4K@60Hz, it also supports USB data transmission with data rate up to 5Gbps, 65W charging and provides wired LAN connection for the connected laptop. -
Page 4: Package Contents
Introduction Multiple Peripherals interfaces: Three super high-speed USB 3.0 ports. One USB 2.0 port and one USB 1.1 port for keyboard. Provides independent mic input and audio output (3.5mm earphone) ports. Supports USB 3.0 data transmission with the speed up to 5Gbps. ... -
Page 5: Rear Panel
Introduction Name Description USB 1.1 type-A port, can be used to connect to a USB keyboard for hotkey function. (Detail information, please refer to “Hotkey Function” section) USB 1.1 Note: It is specialized for connecting keyboard and not recommended to connect to other USB slave devices. - Page 6 Introduction Name Description connected to the host PC connected to USB Host3 port. HDMI In2A & HDMI In2B: Connect to two HDMI output ports of PC respectively. HDMI In2A and HDMI In2B can be seen as a group, hereinafter referred to as group 2 in this manual. Desktop 2 USB Host2: Connect to a host device.
-
Page 7: Application
Application Name Description LAN: Connect to a local area network for network connection of the source connected with USB-C In1 port. Application Warnings: Before wiring, disconnect the power from all devices. During wiring, connect and disconnect the cables gently. ... -
Page 8: Front Panel Control
Control of the Switcher Front Panel Control Users can choose to use front panel buttons to do basic switching operations. Connect the switcher as required and power on all the attached devices. Then users can switch source through the button on front panel by pressing it. -
Page 9: Hotkey Function
Specifications "4E" code by short pressing the System Code Switch on the Remote panel. Hotkey Function One USB 1.1 port on front panel of the switcher supports keyboard hotkey function. This function is enabled by default, and can be set to disabled/enabled through combined keys on the connected keyboard. - Page 10 Specifications Technical HDMI Input/Output: HDMI 2.0 with resolutions up to 4K@60Hz 4:4:4 8bit / 4K@60 4:2:0 12bit with HDCP 2.2 compatibility SMPTE: 1280x720P , 1920x1080I 1,2,3,4,5,6,7,8 1920x1080P , 2560x1080 , 3840x1080 1,2,3,4,5,6,7,8,9,10,11,12 3840x2160 2,3,5,6,8 , 4096x2160 2,3,5,6,8 VESA: Input/Output 800x600 , 1024x768 , 1280x768 , 1280x800...
-
Page 11: Warranty
Warranty Products are backed by a limited 1-year parts and labor warranty. For the following cases AV Access Technology Limited shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
