Summary of Contents for AV Access 4KSW21-KVM
- Page 1 4KSW21-KVM 2x1 HDMI KVM Switcher User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 5: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................3 Panel ............................3 Application Diagram .................... 5 IR Remote Handset ....................6 Specification ......................7 Trouble Shooting ....................8 Warranty ....................... 9 www.avaccess.com services@avaccess.com... -
Page 6: Introduction
Thank you for purchasing this product. For proper installation and optimum performance, please read the instructions in this manual carefully. 4KSW21-KVM is a 2x1 HDMI KVM Switcher with HDMI and HDCP2.2 compatibility. It supports resolutions up to 4K@60Hz 4:4:4, multi-channel audio and automatic HDCP 2.2/1.4 compatibility. -
Page 7: Package Contents

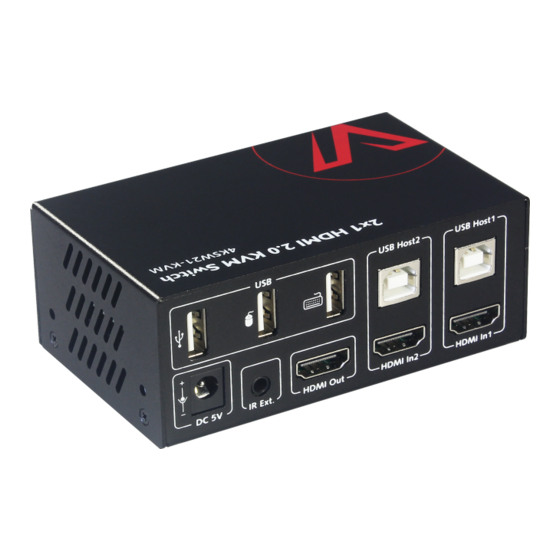

Introduction Package Contents Before you start the installation of the product, please check the package contents: 4KSW21-KVM Switcher x 1 Power Supply (DC 5V 1A) x 1 IR Remote x 1 IR Receive Cable x 1 ... - Page 8 Introduction Name Description Line Out Connects to an earphone. Mic In Connects a microphone. DC 5V Connects to a DC 5V power adapter provided. IR Ext. Connects to the IR receive Cable provided. HDMI Out Connects to an HDMI display. HDMI In 1~2 Connects to HDMI sources.
-
Page 9: Application Diagram
Application Diagram Application Diagram Earphone Line Out Mic In Power Supply Camera Mouse Keyboard USB Device USB Device USB Device USB Host HDMI Out USB Host HDMI In HDMI In IR Remote Display Note: The source may be any HDMI source device such as an Apple TV, Blu-ray ... -
Page 10: Ir Remote Handset
IR Remote Handset IR Remote Handset 4KSW21-KVM Switcher can be controlled by the IR remote provided. Point the remote directly at the IR receive cable connected to the "IR Ext." port or point the remote directly at “IR In” window on front panel, switch to the desired input source. -
Page 11: Specification
Specification Specification Video Input/Output Signal Type HDMI with 4K@60Hz 4:4:4, HDCP 2.2; USB: USB2.0 Input/Output Resolution Up to 4096 x 2160@60Hz, 4:4:4 8bit, including Supported 4K@60Hz/4K@30Hz/1080P/ 1080i/720P Maximum Data Rate HDMI: 18Gbps; USB: 480Mbps Maximum Pixel Clock 600MHz Control Method Front Panel, IR Remote Audio Fully supports audio formats in HDMI 2.0... -
Page 12: Trouble Shooting
Trouble Shooting Trouble Shooting No Power Ensure the power is on. No Picture or Video Flash Ensure all devices are on, and all cables are qualified and connected properly. Ensure all the cables’ length are within the transmission distance (refer to ... -
Page 13: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 16 AV Access Technology Limited V1.0.0...
