- Page 1 2x1 8K HDMI 2.1 Switcher with KVM 8KSW21-KVM User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................2 Overview ............................2 Features ............................2 Package Contents ........................3 Panel .............................. 3 Installation and Application ....................4 Brackets Installation ........................ 4 Application ..........................6 Hotkey Function .........................6 Specifications ........................7 Warranty ..........................8 www.avaccess.com info@avaccess.com... -
Page 3: Introduction
Introduction Overview This product is an 2x1 8K KVM switcher. It is able to share multiple USB 3.0 devices (such as USB camera, speakerphone or other conference devices) between two sets of HDMI 2.1 input ports and USB-B ports. It supports resolutions up to 8K@60Hz 4:2:0 10bit and 4K@120Hz 10bit in FRL mode, and up to 10K@120Hz 4:2:0 12bit in DSC mode. -
Page 4: Package Contents

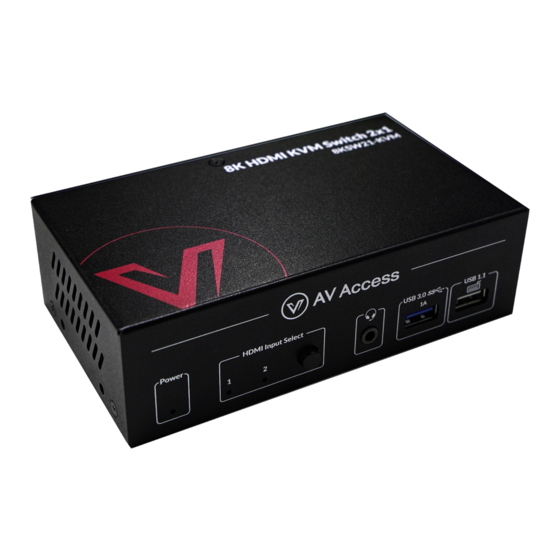

Package Contents Switcher x 1 DC 12V Power Adapter x 1 HDMI Cable x 2 USB 3.0 Type-B to USB Type-A Cable x 2 Mounting Brackets (with Screws) x 2 User Manual x 1 Panel Front Panel Name... -
Page 5: Installation And Application
Name Description DC 12V In Connect to the power adapter provided. Micro-USB port. The firmware can be upgraded Update through this port. HDMI Out Connect to an HDMI display. HDMI Connect to HDMI sources. (1&2) USB type-A ports. Connect to USB devices such USB 3.0 as USB camera, USB speakerphone. - Page 6 provided in the package separately. As shown in the figure. 2. Attach the brackets to the surface you want to hold the unit against using the screws (provided by others). www.avaccess.com info@avaccess.com...
-
Page 7: Application
Application H eadset w i th M ouse Keyboard Bui l t-i n M i c Pow erAdapter U SB D evi ce U SB D evi ce M i c I n & Li ne O ut U SB U SB D evi ce U SB D evi ce U SB H ost... -
Page 8: Specifications
you need to use other hotkeys, please repeat the above steps. Note: When switch to the PC in standby mode, click the hotkey of the connected keyboard can wake up this PC. Specifications Technical Input / Output Up to 8K@60Hz 4:2:0 10bit in FRL mode and up to Signal Type 10K@120Hz 4:2:0 12bit in DSC mode, HDCP 2.3 VESA:... -
Page 9: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 10 Thank you for choosing products from AV Access. If you have any question, please contact us via the following emails: General Enquiry: info@avaccess.com Customer/Technical Support: support@avaccess.com www.avaccess.com...
