Uplift Desk V2-Commercial F600 C-Frame Manual page 7

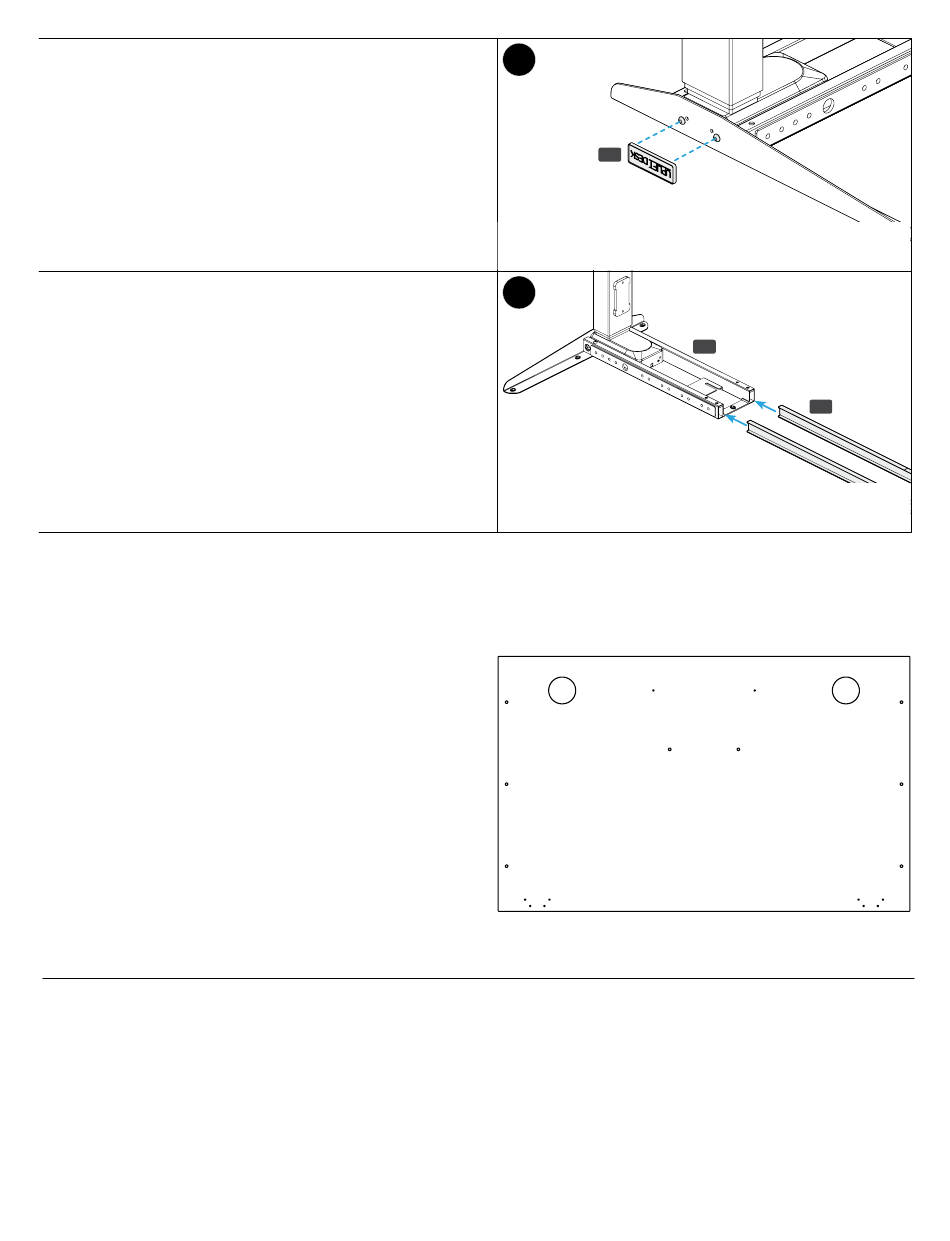

Step 4 - Attach Logo Plates
A. Align the posts on the back of a Logo Plate
two smaller holes in the face of the Side Bracket. The Logo
Plate should be upside down at this point.
B. Firmly press the posts into the holes until Logo Plate
edges are flush with the face of the Side Bracket,
concealing the two screws.
C. Repeat the previous steps to attach the second Logo Plate.
Step 5 - Insert Crossbar Rails
A. For C-Frame assemblies, start with the Leg assembly
shown with Side Bracket on the left and the long end
pointing in the direction shown.
For T-Frames assemblies, start with either Leg assembly
since they are the same.
Insert a Crossbar Rail (P6)
at the end of the Crossbar End (P5).
B. Slide the Crossbar Rails as far as they will go into the
Crossbar End.
Step 6 - Drill Frame Attachment Holes
(if needed). Most desktops do not require
any drilling.
If you have a desktop with pre-drilled holes and metal
threaded inserts in the bottom side as shown, skip to the
next step.
A. Lay your desktop down with the bottom side facing up
and place the Leg assembly from Step 5 on it as shown on
the following page.
B. Align the Leg assembly from Step 5 so the ends of the
Side Bracket are approximately centered between the
front and back edges of the desktop and approximately
1/2" in from the side edge.
C. Make a pencil mark in the center of each of the Side
Bracket holes.
• C-Frames have three holes in the Side Brackets
• T-Frames have two holes in the Side Brackets
D. Make a pencil mark in the center of the Crossbar End hole.
(P16) with the
into each of the two openings
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com •
C
T
P16
Attach the Logo Plates upside down as shown so they
are right-side up when the desk is flipped over.
C
T
Crossbar Rails are universal in design
and can be inserted in any orientation.
Desktop with pre-drilled holes and threaded inserts:
upliftdesk.com
P5
P6
7
