Uplift Desk V2-Commercial F600 C-Frame Manual page 10

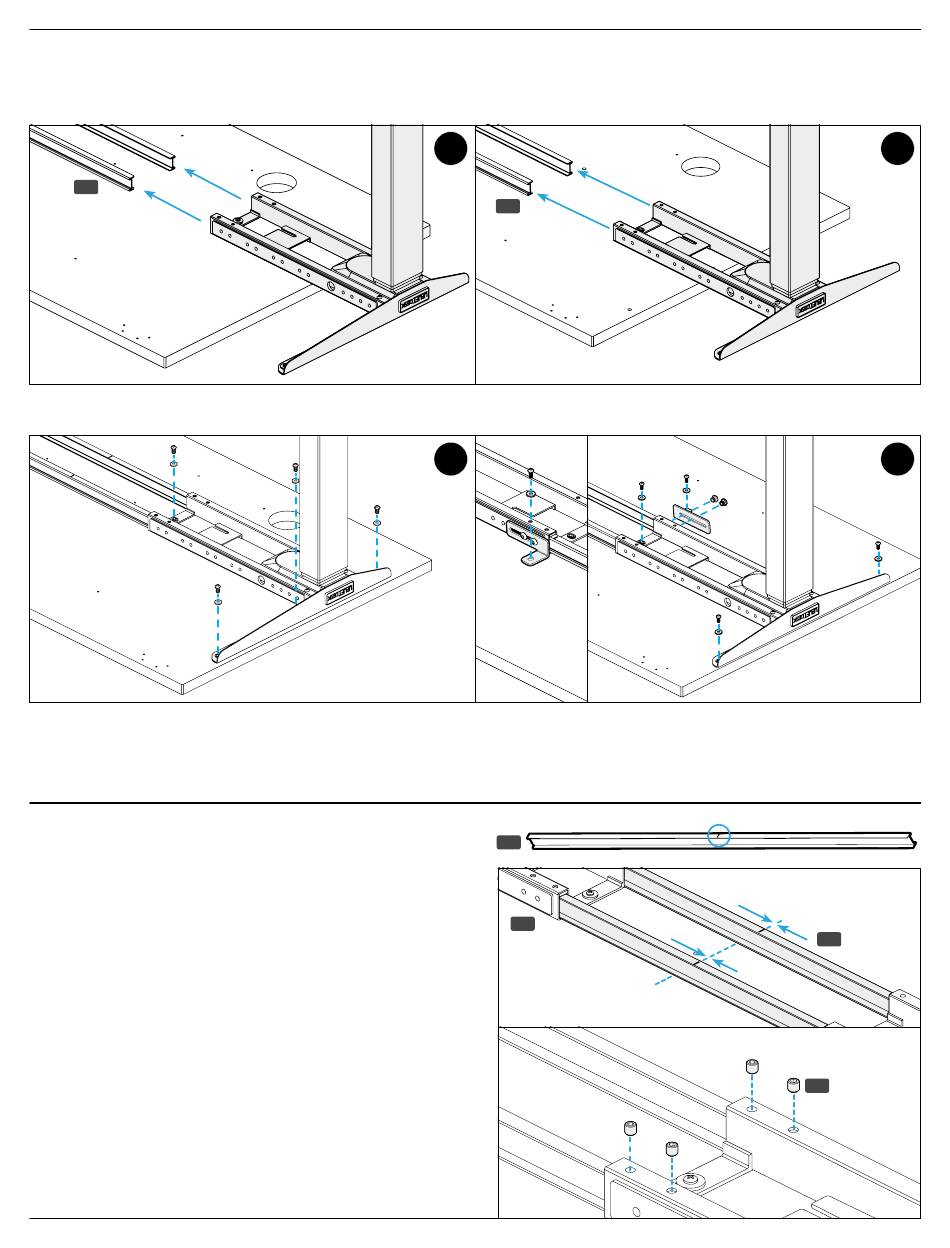

Step 8 - Attach Second Leg Assembly
A. Position the other Leg assembly as shown and slide the Crossbar End onto the ends of the Crossbar Rails (P6).
P6
B. Repeat the steps from Step 7 to attach the Side Bracket and Crossbar End of second Leg assembly.
C. Once all screws have been started, tighten all the screws from Steps 7 and 8. Be careful not to overtighten the screws to
avoid stripping.
IMPORTANT: Ensure all screws are tight before proceeding.
Step 9 - Secure Crossbar Rails
A. Locate the center indicator mark on the narrow sides
of each Center Rail.
B. Slide each Crossbar Rail
center indicator marks are approximately centered
between the two Crossbar Ends (P5).
C. Insert four M8 x 8 Set Screws
End and tighten using the 4mm Allen Wrench (H6).
IMPORTANT: Ensure that all eight set screws are
making contact with the Crossbar Rails inside the
Crossbar Ends and are tight before proceeding.
