Uplift Desk V2-Commercial F600 C-Frame Manual page 13

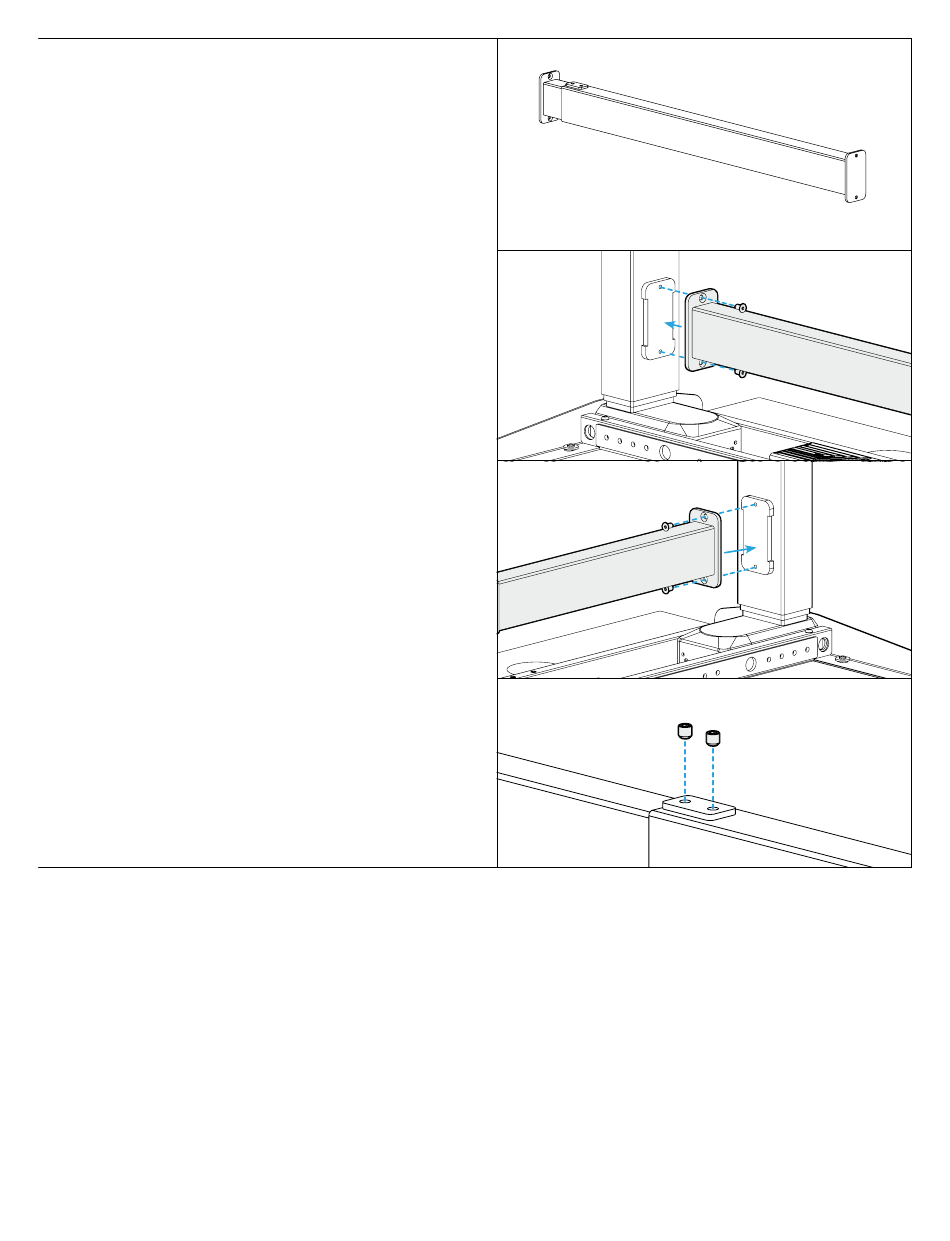

Step 14 - Attach Crossbar
A. Slide the two halves of the Crossbar
shown.
B. Orient the Crossbar so that the Set Screw holes on the
outer section are facing upwards as shown.
C. With another person holding the Crossbar, line up the
holes on one half of the Crossbar with the holes in the
Crossbar mounting plate on the Leg.
D. Loosely insert two M6 x 12 Flat Head Screws
through the holes in the Crossbar and into the
threaded holes in the Leg.
E. Extend the other half of the Crossbar to the Crossbar
mounting plate on the opposite Leg, align the holes,
and insert the two remaining M6 x 12 Flat Head Screws.
F. Once all four screws are started, tighten them using
the 4mm Allen Wrench (H6).
G. Insert the two M8 x 8 Set Screws
the Crossbar into the two holes in the outer Crossbar
section where the two halves slide together and
tighten them using the 4mm Allen Wrench.
IMPORTANT: Ensure that all screws are tight before
proceeding!
(P13) together as
(H16)
(H3) included with
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com •
Either half of the Crossbar can be attached to either Leg.
upliftdesk.com 13
