Step 12 - Connect Cables; Step 13 - Attach Feet - Uplift Desk V2-Commercial F600 C-Frame Manual

AC M1

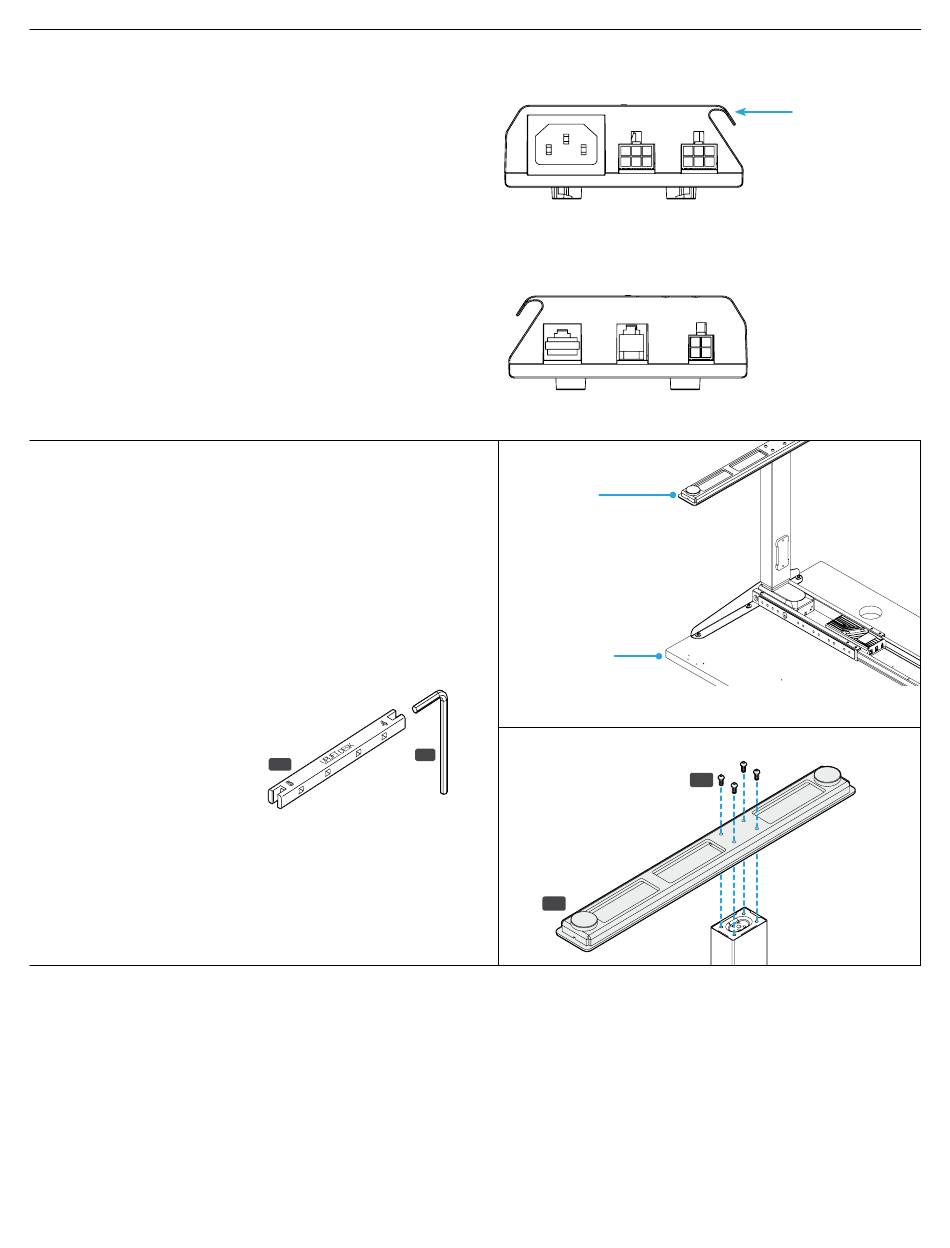

Step 12 - Connect Cables

A. Connect the Power Cable
Control Box labeled "AC".
B. Connect the cable from the Leg closest to the Control
Box directly into the port labeled "M1".
Attachment Tabs
C. Connect the Leg Extension Cable
labeled "M2", route the Leg Extension Cable back under
the cable channel along the side of the Control Box,
and connect it to the cable from the furthest Leg.
D. Connect the Keypad cable into the Control Box port
labeled "HS".
The Control Box port labeled "F" is used to connect the
Bluetooth Adapter (FRM125) for use with the UPLIFT
Desk App.
The Control Box port labeled "DC" is used to connect
low voltage accessories with compatible connectors.

Step 13 - Attach Feet

If you are assembling a C-Frame, make sure the long ends
of the Feet are facing in the same direction as the long
ends of the Side Brackets, toward the front of the desk.
A. Place one of the Feet (P1)
four holes in the Foot with the four threaded holes in
the end of the Leg.
B. Loosely insert four M6 x 14 Machine Screws
through the holes in the Foot and into the threaded
holes in the Leg, but don't tighten them until all four
screws have been started.
C. Tighten screws using the
4mm Allen Wrench (H6)
attached to the Allen
Wrench Handle (H15).
IMPORTANT: Tighten Foot screws very thoroughly to
ensure the stability of the desk.
D. Repeat the previous steps to attach the second Foot.
IMPORTANT: Retighten each screw again to ensure
that all screws are VERY tight before proceeding.
