4.2.1 Robot Arm

4.2.1.1 Dimension Drawings of Robot

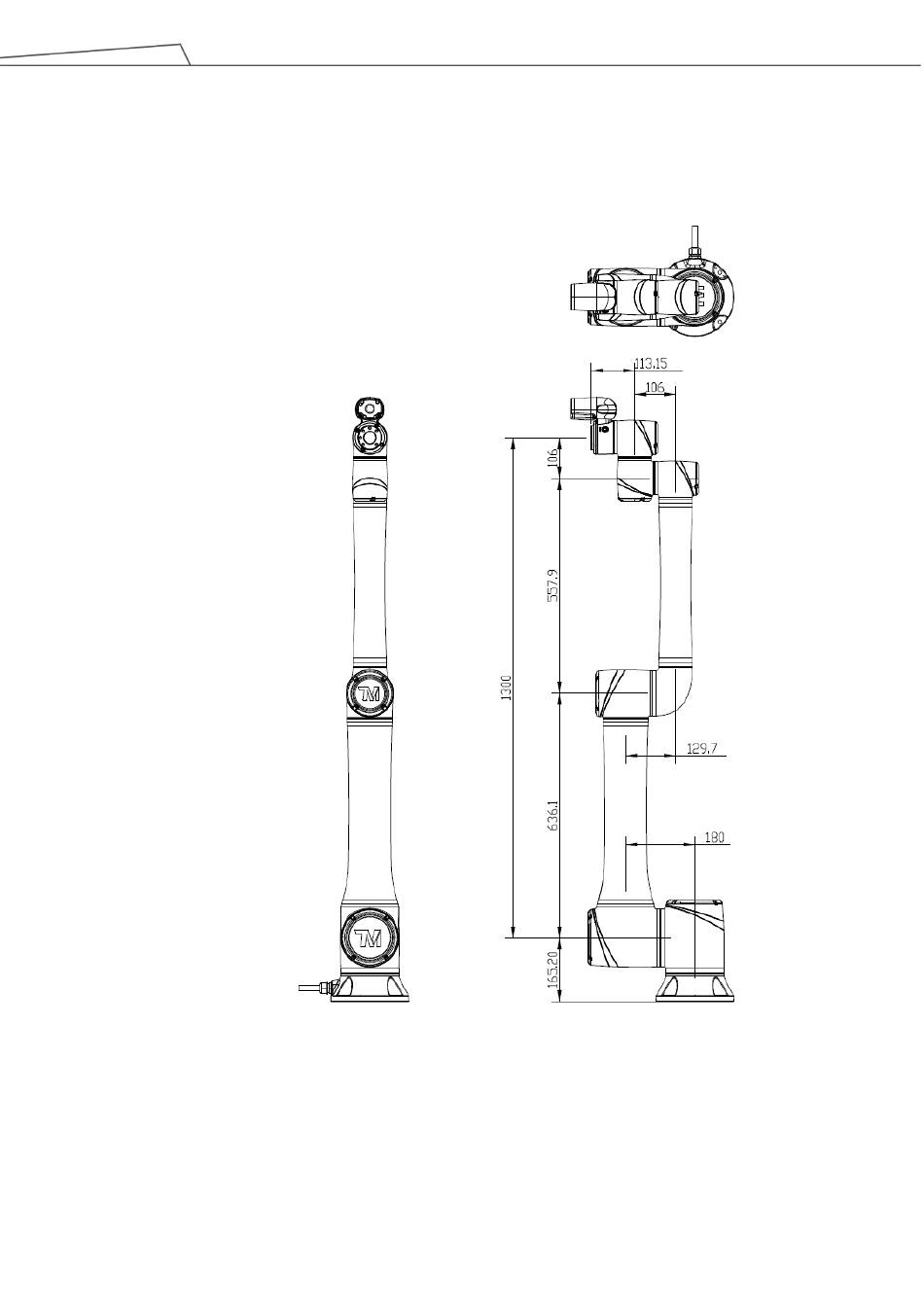

Shown below is the dimension drawing of the robot

Figure 5: Dimension of TM12 / TM12M

*All measures are in mm.
19
Medium & Heavy Payload Series-Hardware Installation Manual TM12/14 Series Hardware Version: 3.2
