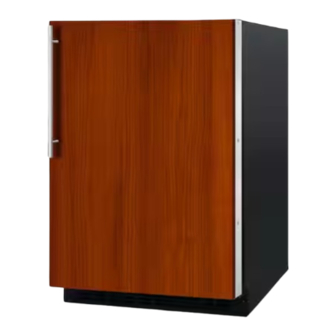

Summit FF64BSS User Manual
  1. Manuals
  2. Brands
  3. Summit Manuals
  4. Refrigerator
  5. FF64BSS
  6. User manual

Summit FF64BSS User Manual

Hide thumbs Also See for FF64BSS:
Table of Contents

Advertisement

Quick Links

Download this manual
OUTDOOR or INDOOR FROST-FREE
REFRIGERATORS, FREEZERS and
REFRIGERATOR/FREEZERS
Refrigerators:
ASDS1523
FF64BSS
Freezers:
SCFF1533BSS
Refrigerator/Freezers:
FFRF24SS
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Model and Serial Nos. (on lower left
corner of inside cabinet) here:
Model No.: _______________________
Serial No.: _______________________
MODELS:
ASDS2413
SPR618OSADA
SCR610BLSD
SCFF53BSS
User Manual
FF1532BSS
Felix Storch, Inc.
ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
AL54IF

Advertisement

Table of Contents
loading

Related Manuals for Summit FF64BSS

Summary of Contents for Summit FF64BSS

  • Page 1 REFRIGERATORS, FREEZERS and REFRIGERATOR/FREEZERS MODELS: Refrigerators: ASDS1523 ASDS2413 SPR618OSADA FF1532BSS AL54IF FF64BSS SCR610BLSD Freezers: SCFF1533BSS SCFF53BSS Refrigerator/Freezers: FFRF24SS User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Model and Serial Nos. (on lower left corner of inside cabinet) here: Felix Storch, Inc.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Appliance Safety Important Safeguards Location of Parts Installation Instructions 10-15 Before Using Your Appliance Installation of Your Appliance 10-11 Electrical Connection Reversing the Door Swing of Your Appliance 12-14 Adjusting the Height of the Unit Adjusting the Kick-plate Installing the Stainless Steel Handle 14-15 Full Overlay Panel Installation Instructions...

  • Page 3: Appliance Safety

    APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others.
  • Page 4 - Disconnect from the power supply, - Air the room in which the appliance is located for several minutes and contact the Service Department for advice. • The more coolant there is in an appliance, the larger the room it should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up.

  • Page 5: Location Of Parts

    LOCATION OF PARTS MODEL FF1532BSS – FROST-FREE REFRIGERATOR LED Light Door Handle Digital Control Panel Shelves (3) Security Lock Ventilation Grille Door Racks (2) Adjustable Legs MODEL SCFF1533BSS – FROST-FREE FREEZER LED Light Door Shelves (3) Handle Security Lock Ventilation Grille Digital Control Panel Adjustable Legs...
  • Page 6 MODEL FF64BSS – FROST-FREE REFRIGERATOR LED Light Door Digital Control Panel Shelves (3) Handle Security Lock Ventilation Grille Door Racks (2) Adjustable Legs MODEL SCFF53BSS – FROST-FREE FREEZER LED Light Door Shelves (3) Handle Security Lock Digital Control Panel Ventilation Grille...
  • Page 7 MODEL AL54IF – FROST-FREE REFRIGERATOR LED Light Door Handle Digital Control Panel Shelves (3) Security Lock Door Racks (2) Ventilation Grille Adjustable Legs MODEL SCR610BLSD – FROST-FREE REFRIGERATOR LED Light Door Shelves (3) Handle Security Lock Ventilation Grille Digital Control Panel Adjustable Legs...
  • Page 8 MODEL ASDS1523 - FROST-FREE REFRIGERATOR Digital Control Door Panel Shelves (3) Handle LED Light Security Lock Adjustable Ventilation Legs Grille MODEL ASDS2413 - FROST-FREE REFRIGERATOR MODEL SPR618OSADA – OUTDOOR FROST-FREE REFRIGERATOR Digital Control Door Panel Shelves (3) Handle LED Light Security Lock Ventilation...
  • Page 9 MODEL FFRF24SS – FROST-FREE REFRIGERATOR/FREEZER LED Light Digital Control Panel Wire Shelves (3) Handle Glass Shelves (3) Left Zone Right Zone (Freezer) (Freezer) Security Lock Door Ventilation Grille Adjustable Legs...

  • Page 10: Installation Instructions

    Do not store perishable food, medicine, or other medical products. The appliance is designed for built-in, recessed, or free-standing installation for indoor use only • for models ASDS1523, ASDS2413, FF1532BSS, SCFF1533BSS, AL54IF, FF64BSS, SCFF53BSS, SCR610BLSD, and FFRF24SS. And for indoor or outdoor use for SPR618OSADA only.
  • Page 11 18" / 455 NOTE: 1. Model SCFF1533BSS is the same size as FF1532BSS. 2. Models SCR610BLSD, FFRF24SS and SCFF53BSS are the same size as FF64BSS. 3. Model SPR618OSADA is the same size as ASDS2413. Anti-tip Bracket Installation To reduce the risk of tipping the unit by abnormal usage or improper loading, the appliance must be secured by properly installing the anti-tip device packed with the appliance.

  • Page 12: Electrical Connection

    NOTE: All parts removed must be saved to allow the door swing to be reversed. NOTE: Some variations of these items may only be reversible in Summit facilities before being shipped. Consult our website for more information.
  • Page 13 4. Rotate the door 180° and refit the door to the opposite side. Then screw and tighten it after the door is leveled. Models FF1532BSS / FF64BSS / AL54IF 1. Remove the cover caps (2) and then remove the door by unscrewing the four screws (1). Be careful...

  • Page 14: Adjusting The Height Of The Unit

    to hold the door firmly after removing the screws and place it on a padded surface to avoid the risk of damage. Leave the hinges open. (Figure 1) 2. Unscrew the four screws (3) to remove the top and bottom articulated hinges. (Figure 2) 3.

  • Page 15: Full Overlay Panel Installation Instructions

    #10x2 (ST4x50) FF1532BSS / SCFF1533BSS: 14¾” W x 30” H (3) and through the 8 existing FF64BSS / SCFF53BSS / SCR610BLSD: 23.4” W x 30” H holes inside the door groove. ASDS1523: 14¾” W x 28⅜” H 6. Reinstall the gasket.

  • Page 16: Operating Your Appliance

    OPERATING YOUR APPLIANCE It is recommended you install the appliance in a place where the ambient temperature is between 44ºF and 90ºF (7ºC to 32ºC). If the ambient temperature is above or below the recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extremely cold or hot conditions may cause interior temperatures to fluctuate.

  • Page 17: Settings Mode

    Settings Mode Certain settings on the refrigerators can only be selected in settings mode. Touch and hold the UP key for 5 seconds to enter and leave Settings mode. The appliance will leave Settings mode automatically after approximately one minute. ºF/ºC Selection 1.

  • Page 18: Control Panel Only For Scr610Blsd

    Control Panel only for Model SCR610BLSD ON/OFF Power To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes off. To turn the appliance on, press and hold the key for 1 second until the temperature display lights up.

  • Page 19: Control Panel For Freezers

    Control Panel for Freezers ON/OFF Power To turn the appliance ON or OFF, press and hold the POWER key for 5 seconds. NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on. SuperFreeze SuperFreeze is used to freeze fresh food quickly.

  • Page 20: Control Panel For Refrigerator/Freezers

    Control Panel for the FFRF24SS Model ON/OFF Power To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes off. To turn the appliance on, press and hold the key for 1 second until the temperature display lights up.

  • Page 21: Sabbath Mode

    Interior Light The unit is equipped with interior LED lights which will be turned ON when a door is opened. LED-type lights are designed for extremely long life. They are not user serviceable. To change them please contact the service department. NOTE: Please use only the original LED light fittings provided by the manufacturer.

  • Page 22: Temperature Alarm / Door Alarm

    Shelves (Only for Models FF1532BSS / SCFF1533BSS / AL54IF / FF64BSS / SCFF53BSS / FFRF24SS.) To prevent damaging the door gasket, make sure to have the door all the way open when pulling the shelves out of the rail compartment.
  • Page 23 Glass Shelves (Only for Models ASDS1523 / ASDS2413 / SPR618OSADA / SCR610BLSD.) Any of the shelves can be removed to store larger items. • When removing the shelf, make sure to have the door all the way open and remove all items first. Hold the front of the shelf, and then gently lift up and slide out.

  • Page 24: Care And Maintenance

    CARE AND MAINTENANCE Cleaning your Appliance • Turn off the power, unplug the appliance, and remove all items, including shelves. • Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to a quart of water). •...

  • Page 25: Troubleshooting

    TROUBLESHOOTING You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE REMEDY Appliance is not connected to a power Connect the appliance.
  • Page 26 “E3”, “E4”, “E1” or “E2” indicates that the air “E5” or “E7”. temperature sensor has failed. “E3” or “E4” indicates that the defrost sensor in the evaporator has failed. “E5” indicates a defrost heater failure. “E7” indicates a door switch failure. Has an appliance door been open for If yes, close the door.
  • Page 27 NOTES...

  • Page 28: Limited Warranty

    LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
