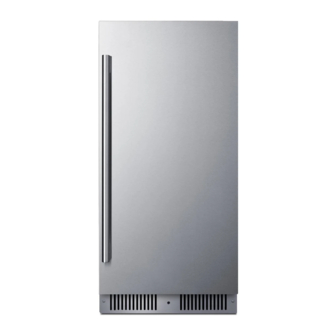

Summit SDHR1534 User Manual

Frost-free refrigerators, freezers and refrigerator/freezers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FROST-FREE REFRIGERATORS,
REFRIGERATOR/FREEZERS
Refrigerators:
ASDS1523
DBAR1523ASD
AL54IF
DBAR2421ADA
Freezers:
SCFF1533BSS
DBFZ1556
Refrigerator/Freezers:
FFRF24SS
DBFDRF2497
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Serial Nos. (on lower left corner of
inside cabinet) here:
_____________________________
FREEZERS and
MODELS:
ASDS2413
DBAR2424ASD
FF64BSS
DBAR2427
SCFF53BSS
DBFZ2451ADA
DBFZ2457
FFRF3070B
DBFDRF3098
User Manual
SDHR1534
DBAR1525SD
DBAR2426SD
SCR610BLSD
DBAR2430
ALFZ53
DBFZIM2452ADA
ISO 9001:2015 registered company
www.summitappliance.com
SDHR2444
FF1532BSS
DBAR1522
ALFZ53IM
SCFF53BSSADA
Felix Storch, Inc.
770 Garrison Avenue
Bronx, NY 10474
LFZ24A

Advertisement

Table of Contents
loading

Related Manuals for Summit SDHR1534

Summary of Contents for Summit SDHR1534

  • Page 1 FROST-FREE REFRIGERATORS, FREEZERS and REFRIGERATOR/FREEZERS MODELS: Refrigerators: ASDS1523 ASDS2413 SDHR1534 SDHR2444 FF1532BSS DBAR1523ASD DBAR2424ASD DBAR1525SD DBAR2426SD DBAR1522 AL54IF FF64BSS SCR610BLSD DBAR2421ADA DBAR2427 DBAR2430 Freezers: SCFF1533BSS SCFF53BSS ALFZ53IM ALFZ53 LFZ24A DBFZ2451ADA DBFZIM2452ADA DBFZ1556 DBFZ2457 SCFF53BSSADA Refrigerator/Freezers: FFRF24SS FFRF3070B DBFDRF2497 DBFDRF3098 User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Appliance Safety Important Safeguards Disposal Location of Parts Installation Instructions 9-16 Before Using Your Appliance Installation of Your Appliance 9-11 Connecting to the Water Supply Electrical Connection 11-12 Reversing the Door Swing of Your Appliance 12-13 Adjusting the Height of the Unit Adjusting the Kick-plate Installing the Stainless Steel Handle Full Overlay Panel Installation Instructions...

  • Page 3: Appliance Safety

    APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others.
  • Page 4 • This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect. Care must be taken during transportation and setting up of the appliance so that no parts of the cooling system are damaged.

  • Page 5: Disposal

    adjustments to level it. • All installations must be in accordance with local plumbing code requirements. • Make certain that the pipes are not pinched, kinked, or damaged during installation. • Check for leaks after connection. • Never allow children to operate, play with or crawl inside the appliance. •...

  • Page 6: Location Of Parts

    LOCATION OF PARTS Refrigerators FF1532BSS / AL54IF / FF64BSS / DBAR1522 / DBAR2421ADA / DBAR2427 LED Light Door Digital Control Panel Shelves (3) Handle Security Lock Ventilation Grille Door Racks (2) Adjustable Legs Freezers SCFF1533BSS / ALFZ53 / ALFZ53IM / SCFF53BSS / LFZ24A / SCFF53BSSADA / DBFZ1556 / DBFZ2451ADA / DBFZ2457 LED Light Door...
  • Page 7 LED Light Door Shelves (3) Handle Security Lock Ventilation Grille Digital Control Panel Adjustable Legs Refrigerators ASDS1523 / SDHR1534 / ASDS2413 / SDHR2444 /DBAR1523ASD / DBAR1525SD / DBAR2424ASD / DBAR2426SD Door Shelves (3) Handle LED Light Digital Control Security Panel...
  • Page 8 Refrigerator/Freezers FFRF24SS / FFRF3070B / DBFDRF2497 / DBFDRF3098 LED Light Digital Control Panel Door Racks (2) (*) Handle Left Zone Right Zone (Freezer) (Refrigerator) Wire Shelves (3) Glass Shelves (3) Security Lock Door Adjustable Legs Ventilation Grille (*) Only available for certain models.

  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS Before Using your Appliance Remove the exterior and interior packing. • CAUTION: After unpacking you MUST allow this appliance to stand upright for at least 2 hours to allow the lubricant and refrigerant to drain back into the compressor and stabilize.
  • Page 10 DBFZIM2452ADA have the same size as AL54IF. 4. Model DBAR1523ASD has the same size as ASDS1523. 5. Model DBAR1525SD has the same size as SDHR1534. 6. Model DBAR2424ASD has the same size as ASDS2413. 7. Model DBAR2426SD has the same size as SDHR2444.

  • Page 11: Connecting To The Water Supply

    Securing the Appliance (If available) Pop out the cover cap on the opposite side of hinge and secure the appliance in the niche by tightening the screws through the attachment bracket if the unit is provided with an attachment bracket. Connecting to the Water Supply WARNING Improper water line connection may result in flooding.

  • Page 12: Reversing The Door Swing Of Your Appliance

    NOTE: All parts removed must be saved to allow the door swing to be reversed. NOTE: Some variations of these items may only be reversible in Summit facilities before being shipped. Consult our website for more information.

  • Page 13: Adjusting The Height Of The Unit

    1. Remove the cover caps (3) and then remove the door by unscrewing the four screws (1) and (2). Be careful to hold the door firmly after removing the screws and place it on a padded surface to avoid the risk of damage. 2.

  • Page 14: Installing The Stainless Steel Handle

    Installing a Stainless Steel Handle This appliance includes a stainless steel handle that is not required to operate the unit. To install the handle, follow the instructions below: Place the handle (1) over the mounting stub (3) of the door and using the supplied Allen key, tighten the securing grub screws (2) to affix the handle.
  • Page 15 4. Drill the handle installation holes in the overlay panel according to the handle you are planning to use. If reusing the handles that came with the unit, drill two holes with a distance of 490mm [19- 9/32”] and a diameter of 5mm [3/16”] in the overlay panel. Door Panel Installation Method 1: (With included brackets) This method is designed to be an easily convenient installation method and does not require drilling into the unit’s door.
  • Page 16 Door Panel Installation Method 2: This method will leave the panel flush with the door but will require some drilling into the unit’s door. 1. Peel off the gasket (4) and remove the handle by removing the two screws that attach the handle to the door.

  • Page 17: Operating Your Appliance

    OPERATING YOUR APPLIANCE It is recommended you install the appliance in a place where the ambient temperature is between 44ºF and 90ºF (7ºC to 32ºC). If the ambient temperature is above or below the recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extremely cold or hot conditions may cause interior temperatures to fluctuate.
  • Page 18 Control Panel for Refrigerator/Freezer ON/OFF POWER To turn the appliance off, lightly touch and hold the key for 5 seconds until temperature display goes out. To turn the appliance on, lightly touch and hold the key for 1 second until temperature display lights up.
  • Page 19  The temperature you are setting will increase by one degree each time you touch the UP symbol and will decrease by one degree each time you touch the DOWN symbol. The display flashes  The set temperature will temporarily flash in the display for 5 seconds after the temperature has while you make the setting.
  • Page 20 Audible Tones 1. Lightly touch and hold the UP key for 5 seconds to enter Settings mode and then touch the POWER key four (4) times. 2. Use the UP and DOWN keys to select the audible tones. • S0: sensor tone ON, alarm tone OFF •...
  • Page 21  Setting the Temperature Control You can set the temperature by pressing the UP and DOWN symbols. When you press either of the two buttons for the first time, the LED readout will show the original temperature set  previously. (The temperature preset at the factory is 38°F, or 3°C). The temperature you are setting will increase by one degree each time you press the UP ...
  • Page 22  Setting the Temperature Control You can set the temperature by pressing the UP and DOWN keys. When you press either of the two keys for the first time, the LED readout will show the original temperature set  previously. (The temperature preset at the factory is 0°F or -18°C.) The temperature you are setting will increase by one degree each time you press the UP key ...
  • Page 23 ON/OFF Power To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes off. To turn the appliance on, press and hold the key for 1 second until the temperature display lights up. NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on.
  • Page 24 ON/OFF Power To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes off. To turn the appliance on, press and hold the key for 1 second until the temperature display lights up. NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on.

  • Page 25: Interior Light

    Interior Light The unit is equipped with interior LED lights which will be turned ON when a door is opened. LED-type lights are designed for extremely long life. They are not user serviceable. To change them please contact the service department. NOTE: Please use only the original LED light fittings provided by the manufacturer.

  • Page 26: Ice Maker

    Make sure the water supply is ON and lower the metal arm on the ice maker to its ON position. As soon as the inner mechanism reaches the proper temperature, the ice maker will fill the mold with water. The first cubes may be small because of air in the water line. Later cubes will be of standard crescent moon type size.

  • Page 27: Door Racks

    (Only for Models ASDS1523 / ASDS2413 / SDHR1534 / SDHR2444 / SCR610BLSD.)  When removing the shelf, make sure to have the door Any of the shelves can be removed to store larger items. all the way open and remove all items first.

  • Page 28: Care And Maintenance

    CARE AND MAINTENANCE  Turn off the power, unplug the appliance, and remove all items, including shelves. Cleaning your Appliance  Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of  Wash the shelves with a mild detergent solution. baking soda to a quart of water).

  • Page 29: Troubleshooting

    TROUBLESHOOTING You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE REMEDY Appliance is not connected to a power Connect the appliance.
  • Page 30 The racks or bins are out of position. Check the racks and bins and refit correctly. “E0” indicates a communication error for 3 Call for service. zone models. Display “E0”, “E1” or “E2” indicates that the air “E1”. “E2”, temperature sensor has failed. “E3”, “E4”, “E3”...
  • Page 31 NOTES CALIFORNIA CARB/SNAP DISCLOSURE This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations. However, we are required by California Law to provide the following disclosure statement in every product sold in California. "This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that specific end-use, in accordance with California Code of Regulations, title 17, section 95374.

  • Page 32: Limited Warranty

    LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
