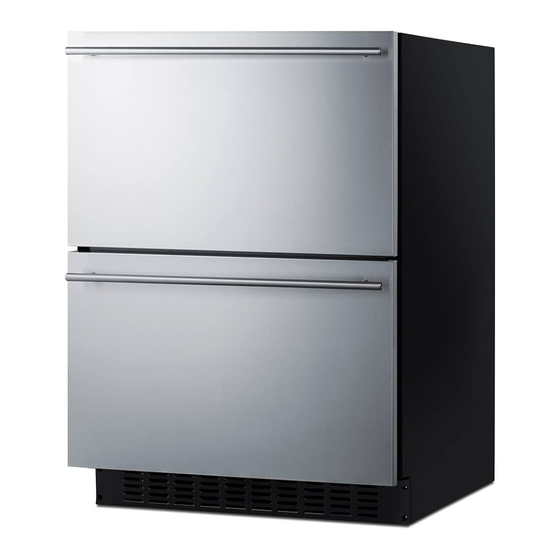

- Page 1 FROST-FREE DRAWER REFRIGERATORS, FREEZERS and REFRIGERATOR/FREEZERS Models: Refrigerators: ASDR1524 ASDR2414 SDHDR1535 SDHDR2446 ADRD241 DB2DRR1584ASD DB2DRR2487ASD DB2DRR1585SD DB2DRR2488SD DB2DRR2486ADA SPR627OS2D SP6DS3D LADR1545 ASDR1554 SDR1529 DB2DRROS2489 DB3DRR2499 LDR1549 SDDR1558 LADR2433 ASDR2444 SDR2418 LDR2437 SDDR2448 FF642D FF642DADA LDR24A FF493D SPR245OS3D Freezers: ADFD243 ADFD243IM SCFF532D SCFF532DIM SPFF51OS2D...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Appliance Safety Important Safeguards Disposal Location of Parts Installation Instructions 8-13 Before Using your Appliance Installation of your Appliance 8-10 Electrical Connection 10-11 Connecting to the Water Supply Installing the Stainless-Steel Handles Adjusting the Kick Plate 11-12 Fully Overlay Panel Installation 12-14 Operating your Appliance... -
Page 3: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. - Page 4 • In the event of any damage: Avoid open flames and anything which creates a spark, Disconnect from the power supply, Air the room in which the appliance is located for several minutes and Contact the Service Department for advice. •...
-
Page 5: Disposal
or discolor the interior. • Use this appliance only for its intended purpose as described in this User Manual. • Keep fingers out of the “pinch point” areas. Clearances between the door and cabinet are necessarily small. Be careful closing the door when children are in the area. - SAVE THESE INSTRUCTIONS - DISPOSAL Dispose of your appliance packaging properly. -
Page 6: Location Of Parts
LOCATION OF PARTS Refrigerators: ASDR1524 / LADR1545 / ASDR1554 / SDR1529 / LDR1549 / SDDR1558 / ASDR2414 / LADR2433 / ASDR2444 / SDR2418 / LDR2437 / SDDR2448 / SDHDR1535 / SDHDR2446 / ADRD241 / FF642DADA / LDR24A / FF642D / SPR627OS2D / DB2DRR1584ASD / DB2DRR2487ASD / DB2DRR1585SD / DB2DRR2488SD / DB2DRR2486ADA / DB2DRROS2489 Freezers: ADFD243 / SCFF532DADA / LDF24A / ADFD243IM/ SCFF532D /... - Page 7 Refrigerators: SP6DS3D / SPR245OS3D / FF493D / DB3DRR2499 Digital Control Panel Handle Drawer Adjustable Legs...
-
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using your Appliance Remove the exterior and interior packing. • Before connecting the appliance to the power source, let it stand upright for approximately 2 • hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. - Page 9 Built-in Under-counter Instructions Make sure your installation does not block the front ventilation grille. The unit is designed to fit under worktops, using the height-adjustable ventilation grille to ensure that the feet are concealed from front view. If the unit is fully integrated to be installed for fitting kitchen plinth, make sure that the ventilation gaps in the plinth are at least 300 square centimeters and remove the ventilation grilles, so that warm air can disperse...
-
Page 10: Electrical Connection
Electrical Connection WARNING Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician or an authorized service center. This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock. -
Page 11: Extension Cord
Extension Cord Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord, it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes. -
Page 12: Fully Overlay Panel Installation
Full Overlay Panel Installation (Optional) An overlay panel covers the stainless steel to give it an integrated appearance. There are two installation options for attaching the overlay panel to the unit’s door. Option 1 does not require drilling through the unit door and can be easily installed using the bracket kit provided with your unit. -
Page 13: Installing The Bracket
Door Panel Installation Option 1: (using bracket kit provided) This is an easier installation option that does not require drilling into the unit’s door. NOTE: This option will leave a 3/16” (5mm) gap between the overlay panel and the top of door. The stainless-steel trim (included in the kit) will fill this gap. - Page 14 Door Panel Installation Option 2: This option will leave the panel flush with the door but will require drilling through the front door(s) of the unit. (Hardware is not included for this option). 1. Empty the drawers of any items. 2.
-
Page 15: Operating Your Appliance
OPERATING YOUR APPLIANCE It is recommended you install the appliance in a place where the ambient temperature is between 44º and 95ºF (7º and 35ºC). If the ambient temperature is above or below the recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extremely cold or hot conditions may cause interior temperatures to fluctuate. -
Page 16: Super Freeze
Setting the Temperature Control You can set the temperature by pressing the UP and DOWN keys. When you press either of • the two buttons for the first time, the LED readout will show the original temperature set previously. (The temperature preset at the factory is 38°F or 3°C.) The temperature you are setting will increase by one degree each time you press the UP key •... - Page 17 ** To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the SuperFreeze key for 5 seconds. Indicator Light The indicator light is the dot located at the bottom right corner of the display. The indicator light will be on when a multi-key function is selected.
-
Page 18: Interior Light
key, then touch the second key for at least 5 seconds and then release both keys. Child Lock If in 2 minutes or longer without touching any key, the child lock will be activated automatically. To cancel the lock, touch the UP and DOWN keys at the same time for at least 5 seconds and the indicator light will flash three times to confirm the action. -
Page 19: Temperature Memory Function
Sabbath mode can be canceled by repeating the above process. The Sabbath Mode will automatically turn off after 96 hours. Temperature Memory Function In the event of a power interruption (power surge, breaker switch, etc.), the unit can remember the previous temperature settings, and when power is recovered, the cabinet temperature will return to the same set temperature as before the power went off. - Page 20 An audible alarm sounds if the storage temperature is not cold enough. The temperature display • flashes at the same time. The cause of the temperature being too high may be: • Warm fresh food was placed inside. Too much warm ambient air flowed in when rearranging and removing food. Power failure for some time The appliance is faulty.
-
Page 21: Care And Maintenance
CARE AND MAINTENANCE Cleaning Your Appliance • Turn off the power, unplug the appliance, and remove all items, including racks and dividers. • Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to a quart of water). -
Page 22: Troubleshooting
TROUBLESHOOTING You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE REMEDY Appliance is not connected to a power Connect the appliance. - Page 23 Check the racks and bins and refit correctly. “E0” indicates a communication error for 3 Call for service. zone models. Display “E0”, “E1” or “E2” indicates that the air “E1”. “E2”, temperature sensor has failed. “E3”, “E4”, “E3” or “E4” indicates that the defrost “E5”...
- Page 24 CALIFORNIA CARB/SNAP DISCLOSURE This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations. However, we are required by California Law to provide the following disclosure statement in every product sold in California. "This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that specific end-use, in accordance with California Code of Regulations, title 17, section 95374.
- Page 25 NOTES...
-
Page 26: Limited Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
