Overview - Schenck process Intecont Plus Belt Weigher Operating Manual

INTECONT PLUS
1

Overview

What Is The INTECONT:
INTECONT PLUS is designed as measuring and
evaluation system for
Belt Weighers
Solids Flow Meters
Mass Flow Meters
Mass Flow Feeders
Weighfeeders
Loss-in-weight Feeders
Three system versions are available:
1. Without option card (standard)
2. With option card VFE 610V for additional
input/outputs and printer
3. With option card for fieldbus
VSS021V : Modbus/S5
VPB 020V: Profibus
VCB020V: DeviceNet
VET020V: MODBUS/TCP
VET022V: ETHERNET/IP
This manual applies to belt weighers using the fully
equipped INTECONT variant.
For Further Reading:
Fieldbus manual
SS-RK512 (3964R)
Modbus (Comp)
0837
Transmission to third parties and reproduction of
t h i s d o c u m e n ta t i o n a r e n o t p e r m i t t e d .
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
BVH2220
FH 458
FH 525
O Z1 = 1 2 0 0 0 kg
E1 I = 1 0 0 0 kg/h

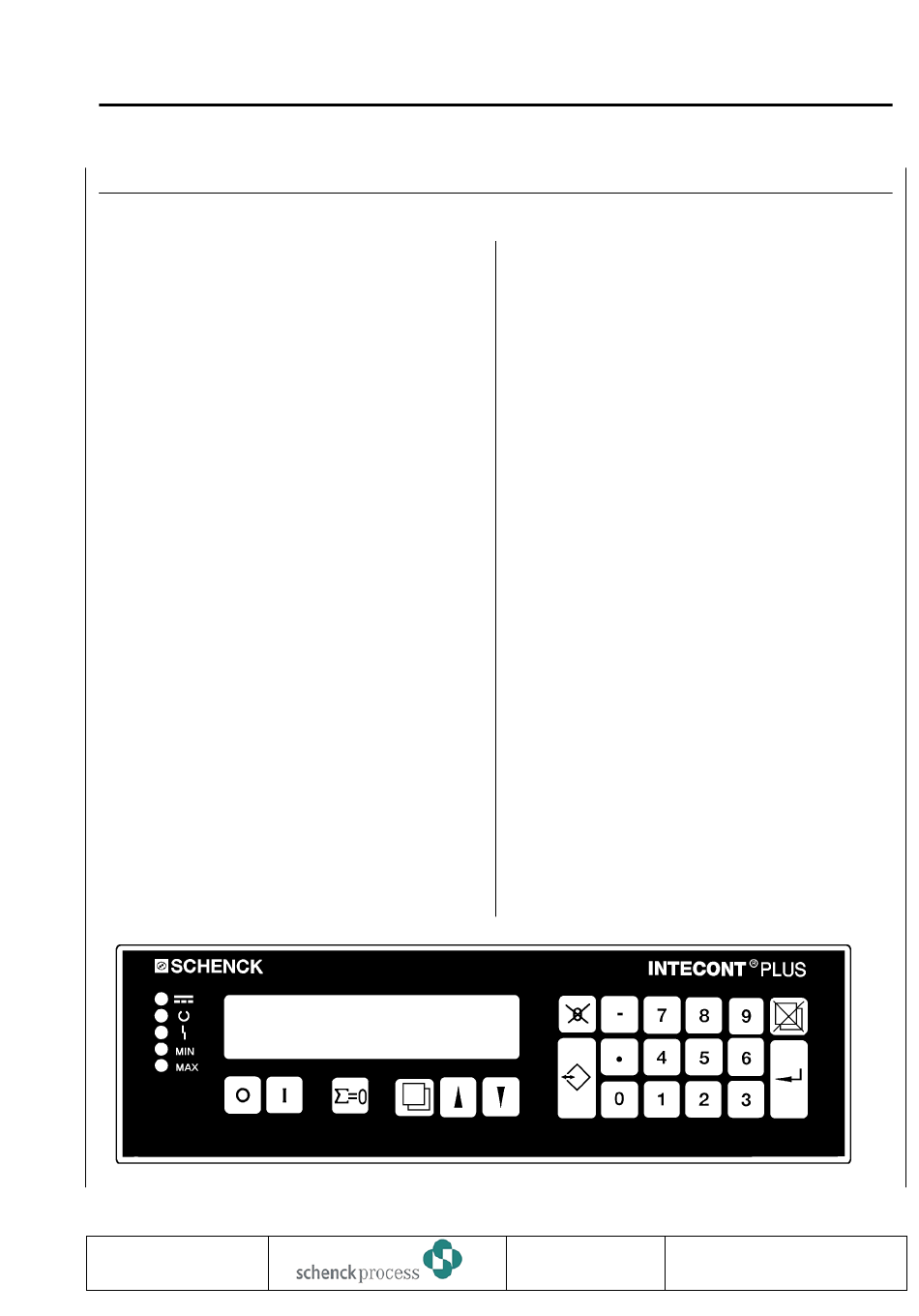

Display:
5 x 7 - dot matrix with 6 mm character height
Upper display left : running message
right : delivery rate in kg or t
Lower display left : event messages
right : selectable
feed rate, belt speed
etc.
Display can be changed over to American units.
LEDs:
2 green and 3 red LEDs
Green LEDs : Ready
Red LEDs : Error or limit value
messages
Keyboard:
Flexible membranes with tactile touch
gB
Start/stop measurement
TU
Preselect lower display
Select functions
i
Reset counter
G
FUNC Call function distributor and
event texts
O
DEL Acknowledge event messages
Delete input
Technische
Redaktion PDE-RD
VBW
Overview
BV-H2214 GB 1
