Schenck process Intecont Plus Belt Weigher Operating Manual page 106

VBW
M 02 Setting Time

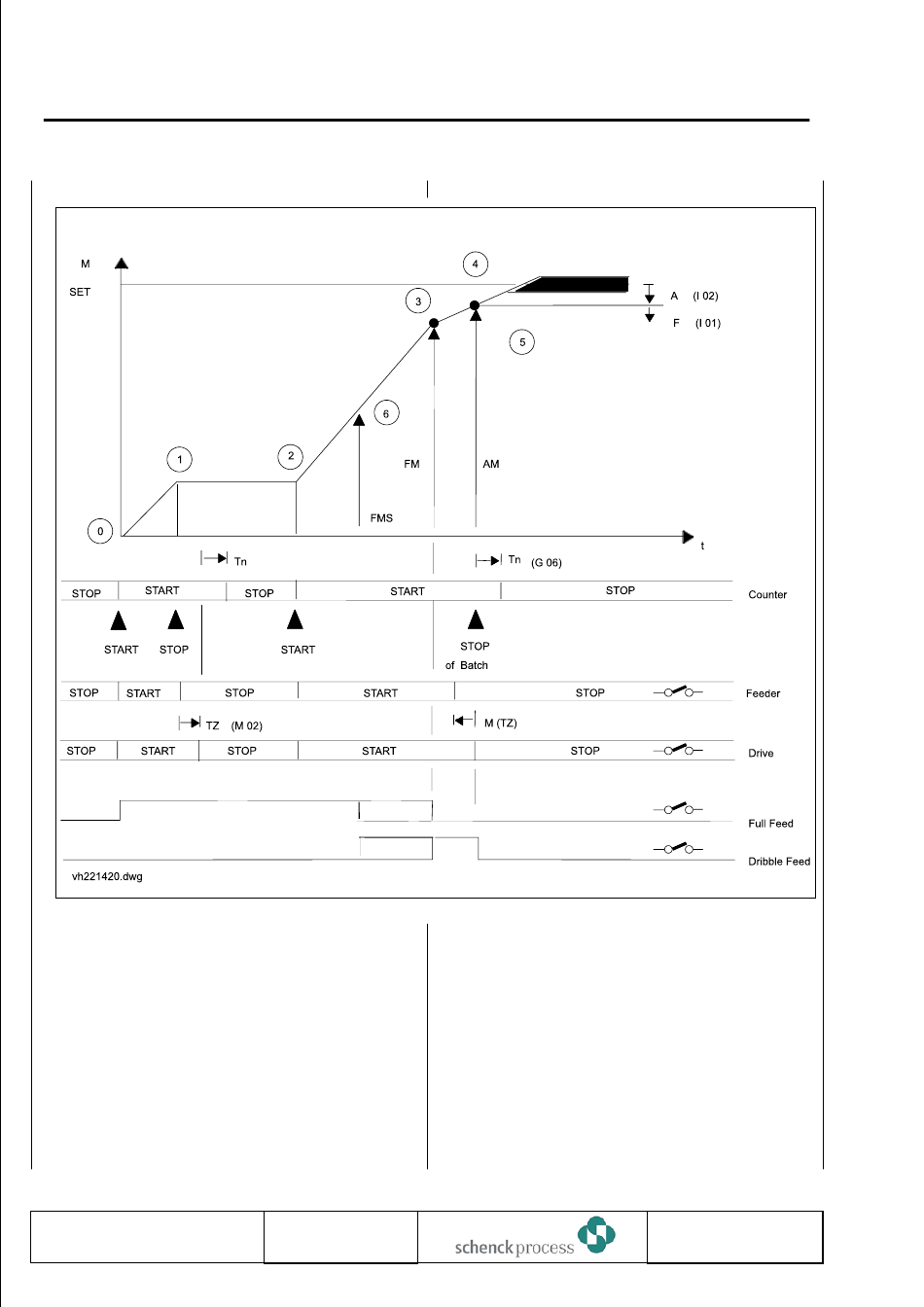

From 0 to nominal feed rate (see Sequence
and Parameter M 04).
M 03 Feed Distance
Material path from feeder to end of weighing
platform.
If CPD is active (N 01 = YES) the length from
platform center to point of discharge (N 02)
has to be added.
Details
BV-H2214 GB 96
sec
M 04
m
Technische
Redaktion PDE-RD
INTECONT PLUS
M 05 = NO
No entry required.
Motor STOP Aft. ST
Use M 04 to determine whether belt tracking
is desired after completion of batch or after
cut-off.
With slow feeders, tracking helps to avoid
excess feed.
Prerequisite: M 01 = YES
Transmission to third parties and reproduction of
this documentation are not permitted. Schenck
Process GmbH reserves all rights of ownership
and copyrights.
YES/NO
0837
