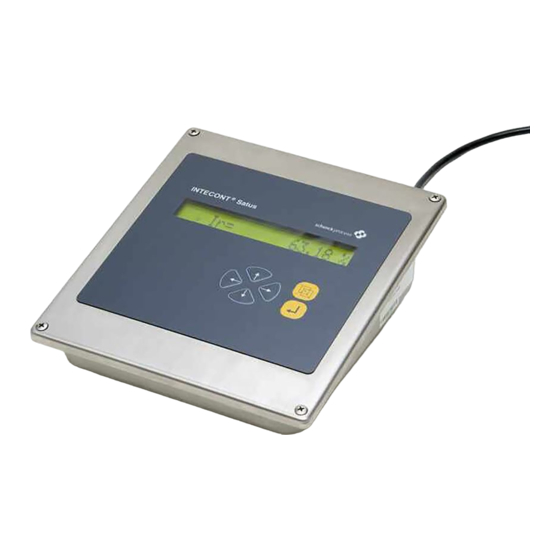

INTECONT® Satus

Belt Weigher

Operating Manual

BV-H2346GB

Table of Contents

Troubleshooting

Need help?

Do you have a question about the Intecont Satus and is the answer not in the manual?

Questions and answers

Summary of Contents for Schenck process Intecont Satus

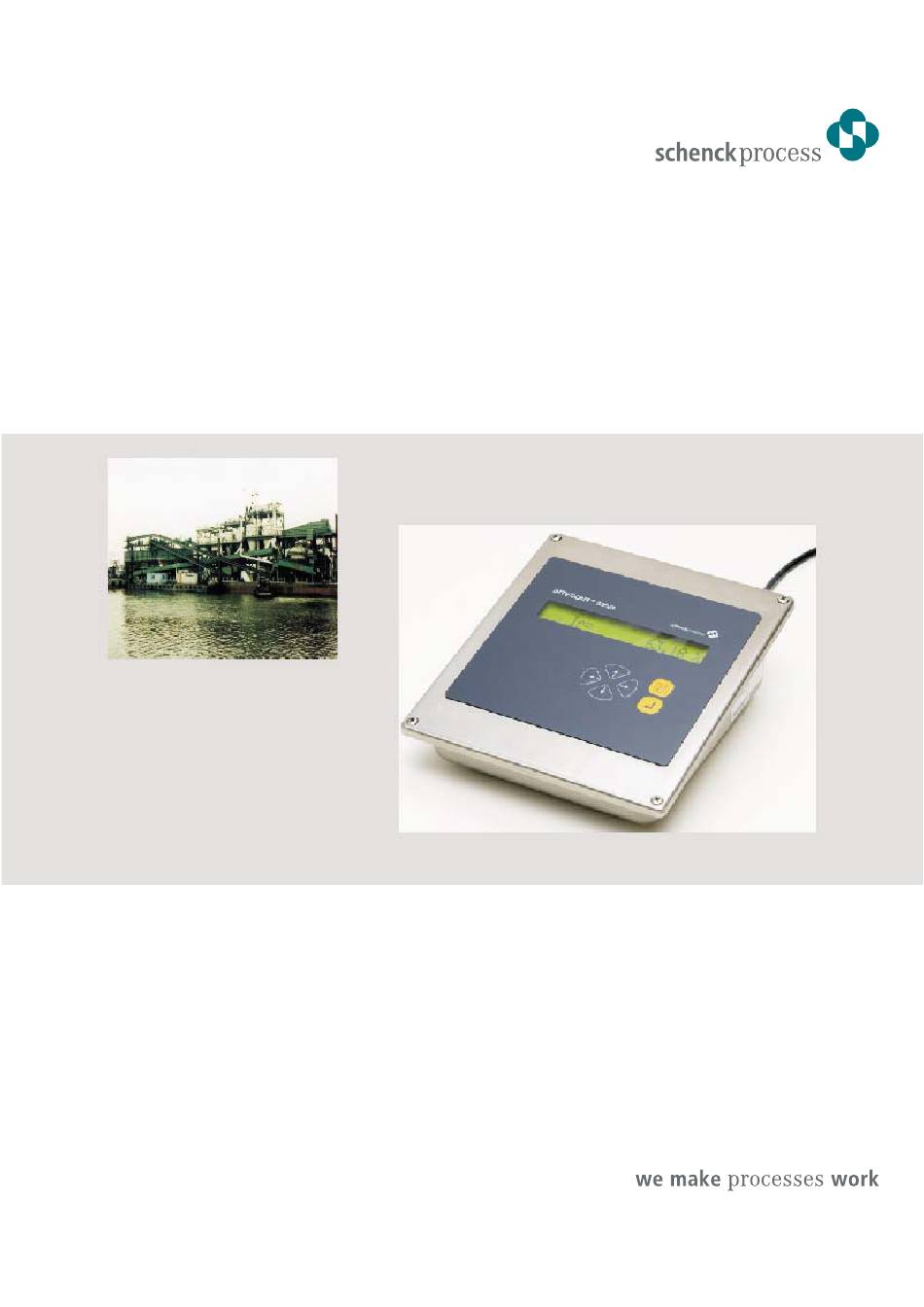

Page 1 INTECONT® Satus Belt Weigher Operating Manual BV-H2346GB...
Page 2 During office hours, service specialists from all divisions are on hand to analyse problems and failures. Look at www.schenckprocess.com for your nearest Schenck Process Location. Customised to meet your requirements, our comprehensive Process Advanced Service System provides you with the best service.
Page 3: Table Of Contents
Profibus module (VPB8020)..........72 INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 4 EasyServe Fieldbus View........... 88 17.4.4 Configuration of the Ethernet/IP Server (INTECONT Satus) ......88 17.4.5 Configuration of the network in “RSLogix 5000"...
Page 5 Connection diagrams – Accessories – Parametrization – Fieldbus communication for device version VKG 20790 The manual is valid for devices with the firmware version VBW 20790 - 01 or higher INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 7: Safety Instructions
Parameters determine the mode of operation of the measuring system. Only personnel familiar with the device’s mode of operation may alter these parameters (e.g. after training by SCHENCK Process GmbH). Incorrectly set parameters may cause injury or material damage. Furthermore they may also cause considerable disruption to weigh operations.
Page 8 Replacing Parts If parts must be replaced in the course of a repair, only original spare parts from Schenck Process GmbH may be used. The use of other spare parts will void the warranty. BV-H2346GB / 0833 Operating Manual INTECONT®...
Page 9: Commissioning Flow Chart
Set Time Set Limit Values Chapter for Parameter Block F (3 Parameters) Chapter Fieldbus Communication for Blocks L, L + T, or L + U vh234614.cdr Fig. 1: Commissioning Flow Chart INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 10: Housing Dimensions
Figure 1 shows the housing dimensions. Fig. 3. Figure 2 shows the drilling template for wall mounting. The parts required for mounting are supplied with the device. Fig. 2: BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 11: Connecting The Device
12: Connector for optional Fieldbus module Fig. 5: Screened lines (load cell connection, serial interfaces) are bared in the device and attached to the rail with isolated clamps for pull-relief. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 12 SYS-CL (yellow): System clock, blinks in normal operation 4, 6 Diag (green / red): no function Network Block: Link (green): Ethernet connection available FDX (yellow): Full duplex 100 (red): 100 Mbaud (otherwise 10 Mbaud) BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 13: Load Cells
Connecting the Device 4.1 Load Cells 4.1 Load Cells Fig. 7: Connection of load cell (Process) INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 14: Speed Input
4.3 Digital inputs Connecting the Device 4.2 Speed input Fig. 8: Speed input diagram connection 4.3 Digital inputs Fig. 9: Inputs connection diagram BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 15: Pulse Output Point For Totalizing Counter-Impulse
4.5 Relay outputs 4.4 Pulse output point for totalizing counter-impulse 5 5 5 OUT5+ +24 VDC OUT5- Fig. 10: Impulse output connection diagram 4.5 Relay outputs Fig. 11: Relay outputs connection diagram INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 16 4.5 Relay outputs Connecting the Device - space for notes - BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 17: Technical Data And Replacement Parts
0–20mA, 12 Bit, max. Burden 500Ω Serial connections Interface 1: RS 232 EasyServe Interface 2: RS 232 - not used – Interface 3: RS 485,2/4-wire Modbus fieldbus Ethernet Modbus/TCP fieldbus/EasyServe Optional PROFIBUS DPV0, DeviceNet, Ethernet/IP INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 18: Supplied And Replacement Parts
5.2 Supplied and replacement parts Technical data and replacement parts 5.2 Supplied and replacement parts Systems Type Material number INTECONT Satus, Stainless steel housing IP65 VKG 20790 V040007.B01 INTECONT Satus with Profibus board VKG 20792 V060127.B01 INTECONT Satus with DeviceNet board VKG 20793 V060128.B01...
Page 19: Overview
High-precision AC-voltage amplifier with continuous zero-point and range correction. – High-resolution analog-digital converter – Effective suppression of external noise – 32 Bit Microcontroller – Unlimited storage of counter readings, configuration and adjustment presets. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 20 Relay output for Q-max monitoring Open = Limit value exceeded. ALARM (DO3) Relay output for alarms Open = Alarm Q-MIN (DO4) Relay output for Q-min monitoring Open = Limit value exceeded. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 21 The level at which digital signals become effective can be parametrized. • Level = Effective level ° L = Input 0V or output contact open ° H = Input with non-zero voltage or output contact closed. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 22: Operation
= 50.0% Belt speed V = 0.0500 Based on the nominal feed rate Based on the nominal belt load Display format and dimensions of Z1 and I can be selected separately. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 23: Event Messages
No event monitoring other than Min-Max messages from contact outputs. If several events occur simultaneously, the event with the highest priority will be displayed. Priority: Alarm, Warning 1, Warning 2 INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 24 Load > MAX LC Input > MAX Minimum L Load < MIN LC Input < MIN LC = Load cell * There is an error in the device or in the cabling. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 25: Function Distributor
Adjustment functions which may only be accessed with a password. The password is queried once the function has been called up. Only if an event is pending. ‘Browsing’ through the function distributor does not restrict any scales-specific functions. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 26: Display Test And Version Number
The parameter number will blink. Scrolling through the parameter numbers within a block. Scrolling through the parameter numbers, across all blocks (only upwards). Return to the block titles. Return to normal operation. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 27: Quick Guide
Call up the function distributor 1. Select the desired function using the SCROLL key ENTER 2. Activate the function using the ENTER key FUNCTION 3. Abort function and return to the ABORT normal display INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 29: Setup Program
This amount then serves as the characteristic value for the programs Taring Weight Control The LB setup program must be called up before the other setup programs for the intial setup. This also applies for scales with no velocity measurement. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 30 The result is accepted and stored in parameter D 06. The result is not taken over. The procedure is identical for models without speed sensor. Specific messages: SWITCH ON, if belt is not running ABORTED BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 31: Taring Tw
The ‘Tare’ result is accepted and stored in the parameter D 03. The result is not accepted, i.e. the scales will not be tared. Specific messages: SWITCH ON, if the belt is not running ABORTED INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 32: Weight Control Cw
Notional transported material quantity over running time *. (alternates) Average KOR from the NOMINAL/ACTUAL values over the total running time. Exiting the program. Either button may be used as the result is not taken over automatically. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 33: Setting The Time
Subsequently the complete date will be displayed for a few seconds. The internal clock will run for a further approx. 5 days in case of a mains failure. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 34 9.5 Setting the time Setup Program - Space for notes - BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 35: Service Values
Weigh cell load, based on the sum of the weigh cell nominal loads. The weigh cells are overloaded if the values exceed 100%. The message H4 : LC-Input > MAX occurs upwards of 110%. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 36 12. ZE = 53 The impulse point output impulses displayed for an external totalizing counter, counted as of the instruction ‘Clear Counter 1’ 13. ES-Version 12 Current version of the EasyServe connected. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 37: Parametrization
There are 2 kinds of parameter: Selectable parameters One may be chosen from among a number of options, e.g. WARNING, ALARM. Numerical Parameter A numerical value must be entered, e.g. nominal feed rate. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 38: Preselecting The Parameters
The parameter number will blink. Scrolling through the parameter numbers within a block. Scrolling through the parameter numbers, across all blocks (only upwards). Return to the block titles. Return to normal operation. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 39: Parameter Entry
The function is protected by a password and a YES/NO query. Important! Any altered parameters and adjusted values will be erased. PROGRAM function, call up PRECONFIGURED PARAMETERS. Confirm NO = 0 preselection INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 40: Set Option
Parametrization 11.5 Set option INTECONT Satus has the option of activating the ETHERNET/IP fieldbus coupling via software. This unit issues an unambiguous ID (the MAC address). An activation code is generated from this ID that is then keyed into the unit.
Page 41: Overview Of Parameters
D 03 Total Tare 0.00 kg/m D 06 Belt Circuit No. 1000000 I/B BLOCK E Analog Output E 02 Elevation AO 1 4 mA E 03 Limit Value AO 1 20 mA INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 42 Events O 01 Power Failure W1 (E 01) O 02 Memory Error A (S 01) O 03 Tachometer Input W1 (C 02) O 04 Namur Err. Tacho A (E 02) BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 43 T 06 Net Mask 2 T 07 Net Mask 3 T 08 Net Mask 4 T 09 Gateway 1 T 10 Gateway 2 T 11 Gateway 3 T 12 Gateway 4 INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 45 1 lb = 0.453593 kg 1 t = 0.907185 t = 2000 lb 1 f = 0.3048 m inch 1 inch = 2.54 cm * Applies analogously for compound units, e.g. kg/h. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 46 Do not change the vs characteristic as this will alter the run time of the setup program. B 05 Nominal Speed Range: 0.001...50.0 m/s Preconfigured value: 1.0000 m/s Reference for the limit values. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 47 Smallest counter 1 display digit (B 07) in kg or t Select a Z min (B07) so that f is no longer than 10 Hz. Beyond this, the impulse duration has to be less than 1/f. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 48 Inclination of scales’ longitudinal axis, when load cell installed perpendicular to the belt. C 08 Effective Check Weight Range: 0.001...22,000.0 kg Preconfigured value: 50.000 kg Calibration weight simulates material weight applied to weigh bridge. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 49 Preconfigured value: 1,000,000 I/B The result of the calibration impulse/belt circuit determines the setup program run cycle. Divided by parameter B 04 (vs characteristic value), this gives the belt length in m. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 50 Limit Value AO 1 Range: 0,00...1000,00 mA Default: 20,00 mA The output current for 100% feed rate (nominal value). E 02 Feed Rate 100% Range of output current is limited to 0...20 mA. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 51 Q-MAX Value Range: -10...200.0 % Q Preconfigured value: 120.0 % Q Reference: Nominal belt load D 01 F 08 Event class Q-MAX The event class is fixed at WARNING 2 INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 52 Display when OFF: After a completed measurement the point remains still. An operative switch-off command doesn’t stop the flow rate measurement immediately; measurement stops after an after-run time of 3s. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 53 All filters are of the 1st order type (exponential), i.e. after abrupt change of signal, approx. 2/3 of the limit value are reached after the set time. Longer times stabilize display but reduce update rate. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 54 The measurement of flow rate and totalized amount of material is suppressed if this is below the belt load and limit set when the ZDO equipment is activated. No feature appears on the display. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 55 ETHERNET/IP over software one de-energizes. The software can be activated with the Set Option function (on the unit: under programming). Only Schenck Process can ascertain the activation code. Parameters L02 - L14 are dependent on the protocol type. The dependencies are listed in the following table.
Page 56 ADDRESS Range: 1...254 Preconfigured value: 1 Slave address for Modbus protocol. L 08 Resolution Range: 1...32767 Preconfigured value: 4096 Resolving the data in the Modbus protocol nominal value (integer format). BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 57 Determines the display of the floating point value for the PROFIBUS DP protocol. L 14 ADDRESS Range: 0...63 Preconfigured value: 63 DeviceNet slave address. L 15 Baud rate Range: 125k Preconfigured value: 125k 250k 500k DeviceNet baud rates. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 58 O 09 LC Input < MIN The event class is fixed at WARNING 1 The load cell load is less than 3% of the sum of the load cell nominal loads. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 59 The dongle (memory for calibrating data) is missing or is defective. Refer to connecting the load cells Note: INTECONT Satus is fully functional even without a dongle since the parameters are also internally stored. INTECONT® Satus Operating Manual BV-H2346GB / 0833...
Page 60 DI calibration switch DI7 Level H: No change possible Digital input that shows dongle write-protection.(”1” write-protection active; “0” writing possible). The parameters cannot be changed any more if write-protection is active. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 61 D02 Level L: No changes possible. Digital output signal if the belt load falls goes above the maximum belt load (F07). The contact output is independent of the event class (F08). INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 62 Data Format Range: 8-0-1 Preconfigured value: 8-0-1 8-E-1 8-N-1 Example: 8-0-1 means: 1 Start bit, 8 Data bit, Odd parity, 1 Stop bit (N = No Parity, E = Even Parity) BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 63 Preconfigured value: 0 T 09 Gateway 1 Preconfigured value: 0 T 10 Gateway 2 Preconfigured value: 0 T 11 Gateway 3 Preconfigured value: 0 T 12 Gateway 4 Preconfigured value: 0 INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 64: Event Messages
Parameters Measures Check the load cell connection Note INTECONT Satus is fully functional even without a dongle since the parameters are also internally stored. The changed parameters should be keyed in again if hardware is replaced. Communication Host Serial communication has been interrupted for longer than the timeout-period.
Page 65 F 07, F 08 LC Input > MAX The weigh system is overloaded. Measuring errors may occur. Measures Check the bin feeder, as the belt load is too large. Parameters INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 66 The weigh system load is too low and measuring is at risk. Measures Check the weigh bridge mechanics and alignment of the measuring idlers. check the load cell cabling. Parameter O 09 BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 67: Fieldbusses
For the Fieldbusses this means that in the SI setting, all dimensioned magnitudes are transferred in the units ‘m, kg and sec’. If you have chosen NON-SI, the dimensioned magnitudes are transferred in ‘ft, lb and sec’. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 68 Bits are summed up in words (Modbus, Modbus/TCP) or double words (Profibus, DeviceNet and Ethernet/IP). The sequence is as follows: Ex.: Command-ID 0x0140 Komm4_HI Komm4_LO Komm5_HI Komm5_LO Ex.: Status-ID 0x02F0 Status2_HI Status2_LO Status3_HI Status3_LO BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 69: Structure Of User Data
01 03 0750 0005 0A 01 03 0750 0A xx ..xx Read measured values in IEEE for- The FIXED mode data for all protocols is explained further in the following tables. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 70: Fieldbus Data
0 - Tare 2 - Weight control-circuit 3 - Calibration pulse per belt-circuit Command 7 HI (bit coded) B - Apply calibration result C - Abort calibration D - Apply time BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 71 Actual value [kg/h] - 0 to MAXPARTS = 0 to 300% Totalizing counter 1 [kg] - 0 to MAXPARTS = 0 to P * 8 hours Belt load [kg/m] - 0 to MAXPARTS = 0 to 200% Q INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 72 Status 4 HI (bit coded) A - Belt load > MAX B - Belt load < MIN Status 5 LO (bit coded) - unused Status 5 HI (bit coded) - unused BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 73: User Data Diagnosis
The ‘Acknowledge Event’ command and the Fieldbus release bit are transmitted by the master. The reply contains all data defined in FIXED mode. The diagram shows the Modbus telegram depiction (including Modbus frame) INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 74 The data can be transferred into an editor if desired. Checkboxes: The checkboxes are used to choose the direction of data and to activate a time stamp. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 75 The data of two host channels can be filtered out by combining both channel filters. The host data contain the 6 Modbus/TCP header bytes. The copy function transfers the currently selected data into an editor window. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 76: Profibus Dp
14.3 Structure of user data Details on and examples of the structure of user data can be found in the chapter ‘Fieldbusses User Data Structure’. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 77: Proficbus Dp Master Settings
Change the incorrect GSD module or the parameterization of the scales. An improper ID has been identified in the telegram from the master to the scales (use only IDs printed in bold type!) The release bit must always be set! INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 78: Profibus Module (Vpb8020)
On the Profibus connection (VPB8020), the LED is lit Opertion Mode Status Indication Not online/No power Green Online, Date exchange Flashing Green Online, clear Flashing Red (1 Hz) Parametrization error Flashing Red (2 Hz) PROFIBUS Configuration error BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 79 This cable has the conductor color red. This cable has the conductor color green. Characteristics Disconnection Optocoupler Power supply 5V DC internal Power supply Max 310mA Plug connector 5-Pin Phoenix MSTB 3.5 max. 1.5mm² 9-pin Sub-D-femal INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 80: Devicenet
Structure of Fieldbusses’. 15.4 DeviceNet master settings Electronic Data Sheet (EDS) The description files (INTECONT_Satus.EDS) can be found on the Schenck Process GmbH website (http://support.schenckprocess.com path: Service-Download-Bus Systems-DeviceNet). 32 bytes are always transmitted in each direction regardless of the configuration (Produced Connection Size = Consumed Connection size = 32).
Page 81: Diagnosis And Troubleshooting
The timeout parameter has been set too low. Change the parameterization of the scales. An improper ID has been identified in the telegram from the master to the scales (use only IDs printed in bold type!) The release bit must always be set! INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 82: Devicenet Module (Vcb8020)
Network Status LED Module Status LED Front View Network Status (LED) Status Indication Not online/ No power Green Online, one or more connections are established Flashing Green (1Hz) Online, no connections established BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 83 Plug assignment X20/XC3 Signal X20 Screening CAN_H CAN_L Characteristics Disconnection Optocoupler Power supply 5V DC internal Power supply Max 250mA Plug connector Phoenix MSTB 5 max. 2.5mm² Phoenix MSTB 5 max. 1.5mm² INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 84: Modbus
A wordwise-turning ofthe IEEE format is possible for the parameters. All control information and status are represented as a binary signal with each character’s 8 data bits. Additionally, all control and status information can be treated as single-bit information. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 85: Function Codes (Fc)
The characters are set by a parity bit, the telegrams are secured by a checksum (CRC16) (see MODBUS specifications). The MODBUS specifications determine the response to a transmission error (see 2-1 EXCEPTION RESPONSE). INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 86: Error Codes
So the data address configuration rule is as follows: Data address = segment address + INTECONT® Satus address + 1. 16.8 Example telegrams Example telegrams are described in the section: Examples of telegrams for MODBUS and MODBUS/TCP. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 87: Modbus Master Settings
An improper ID has been identified in the telegram from the master to the scales. See the section on error codes 16.11 EasyServe Fieldbus view The chapter ‘Fieldbusses User Data Diagnosis’ shows and explains how cyclical user data is displayed for all protocols. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 88: Xes3 Serial Interface
If the interface is operated in the 4-wire mode, the terminating resistor comes onto the reception side (PIN 3-4). • Use as an RS232 interface is only possible using an external converter. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 89: Ethernet
Ethernet/IP expands the standard Ethernet by the Commin Industrial Protocol (CIP™). This is the same application protocol and object model used by DeviceNet. CIP facilitates interoperability between devices from different manufacturers and sub-networks. 17.2 General TCP/IP Settings INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 90: Modbus/Tcp
All other bytes are sent back 1:1 in the reply. These header bytes (1-5) should not be used to enable subsequent expansion, they should be set to ZERO! BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 91: Modbus/Tcp Master Settings
The EasyServe tool can assist in providing more information for error diagnosis. Network Block LEDs The network LEDs are described in the chapter ‘Connecting the Device’. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 92: Communication Host' (S9) Event Message
In the terms of this monitoring strategy, EasyServe is not considered to be a Fieldbus client. The special settings in the relevant parameter block apply for EasyServe and also the same rules with regard to logging on and off apply as with a serial coupling. BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 93: Ethernet/Ip
An improper ID has been identified in the telegram from the master to the scales (only use IDs printed in bold type) • The release bit always has to be set in the FIXED mode. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
Page 94: Easyserve Fieldbus View
17.4.3 EasyServe Fieldbus View The chapter on User Data Diagnosis shows and explains how cyclical user data are displayed jointly for all protocols. 17.4.4 Configuration of the Ethernet/IP Server (INTECONT Satus) BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 95: Configuration Of The Network In "Rslogix 5000
Configure the controller • Select the EtherNet/IP bridge • Configure the EtherNet/IP Bridge • Add the INTECONT Satus station to the I/O configuration • Add a generic Ethernet module • Configure the new Ethernet/IP module • Set connection options for INTECONT Satus •...
Page 96 17.4 Ethernet/IP Ethernet - Space for notes - BV-H2346GB / 0833 Operating Manual INTECONT® Satus © Schenck Process...
Page 97: Web Server
Web Server 18 Web Server The start pages of the WEB server are “start.html” with the most important measurements and events and “links.htm" with more information on the system. INTECONT® Satus Operating Manual BV-H2346GB / 0833 © Schenck Process...
