Batching Without Clearance

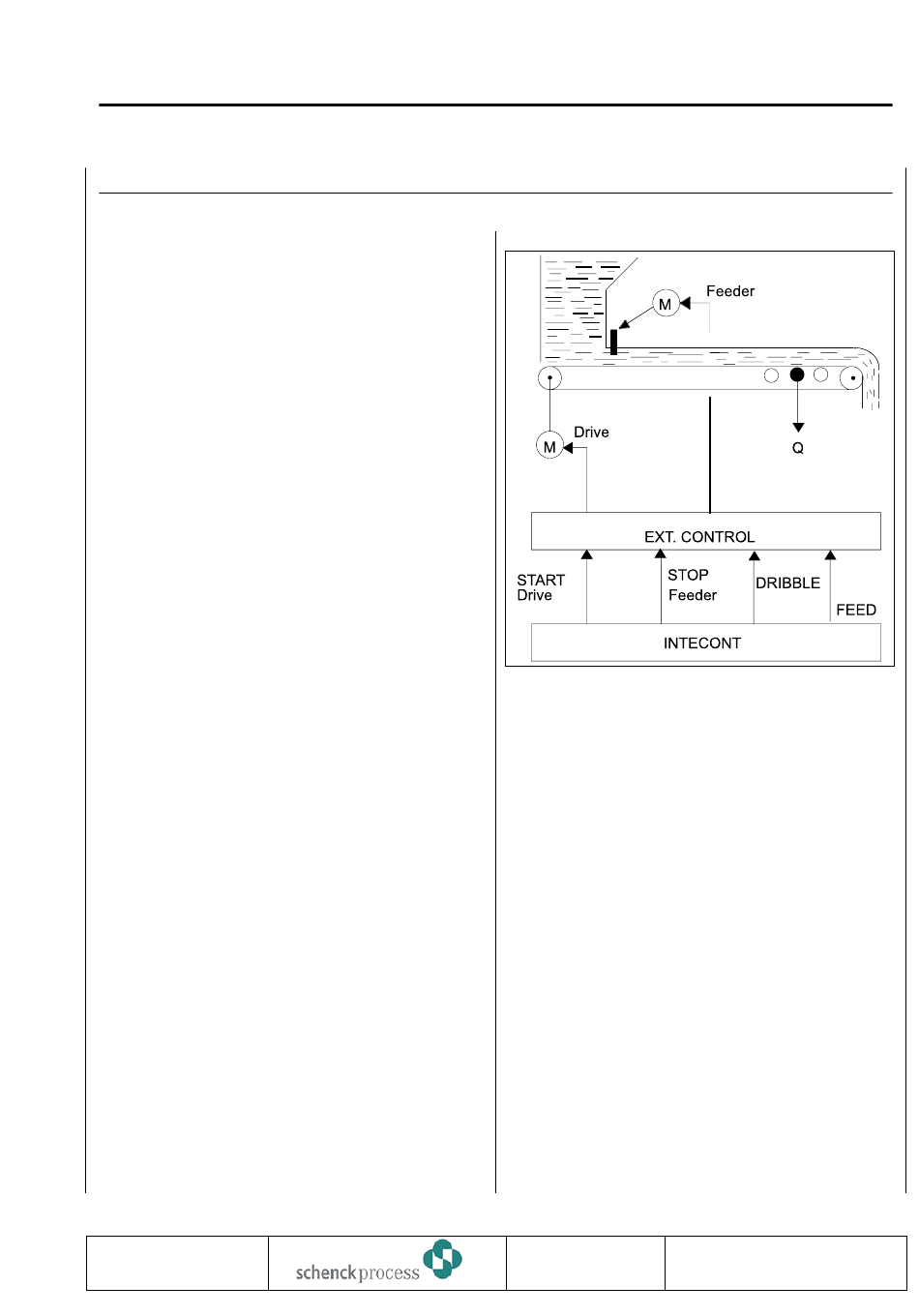

If batch is complete, belt drive is cut-off. Feeding by
full feed/dribble feed can be controlled via belt speed
or prefeeder (dashed line).
It is recommended to activate delay for material
discharge (O 01 = YES).
Select keyboard as START source
(B 06 = DE + T).
For details, see OPERATION chapter.
Parameter Schedule:
B 06 START source
G 06 Belt tracking time Tn
Feed rate determination tracking time after
belt cut-off.
Enables afterflowing material to be acquired.
N 01 CPD Active
Delay for point of discharge
I 01 Batch Dribble Feed
Change-over point from full feed to dribble
feed, e.g. by belt speed reduction. Enter
deviation from cut-off point I 02 (see Figure).
I 02 Batch Cut-Off Point
Belt drive cut-off point. To be set to slightly
below setpoint to enable afterflowing material
to be acquired.
Suggestion:
Mean dribble feed feed rate in kg/h divided by
3600.
I 03 Correction Factor
Dribble feed changeover and cut-off points
are automatically adapted upon completion of
batch for system to be better matched to
actual conditions until the time of next
batching operation.
0837
Transmission to third parties and reproduction of
t h i s d o c u m e n ta t i o n a r e n o t p e r m i t t e d .
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
OP
apr. 3 s
YES
kg
kg
I 04...
0.6
I 07
M 01
Technische
Redaktion PDE-RD
I 03 = 0 : No adaptation
I 03 = 1 : Full adaption
Intermediate values lead to filtered
adaptation.
Suggestion: I 03 = 0.6
For monitoring, see Parameter List.
Empty Belt
Prerequisite for batching mode.
Feeder Active
NO : Feeder control output is always
LOW. Full feed/dribble feed
changeover must be controlled via
belt drive. Function "Next W/Belt
Empty" is not possible.
YES : Prerequisite for feeder control via
batch mode and for function
"START/STOP Feeder".
VBW
NO
Details
BV-H2214 GB 95
