INTECONT PLUS
12
Details

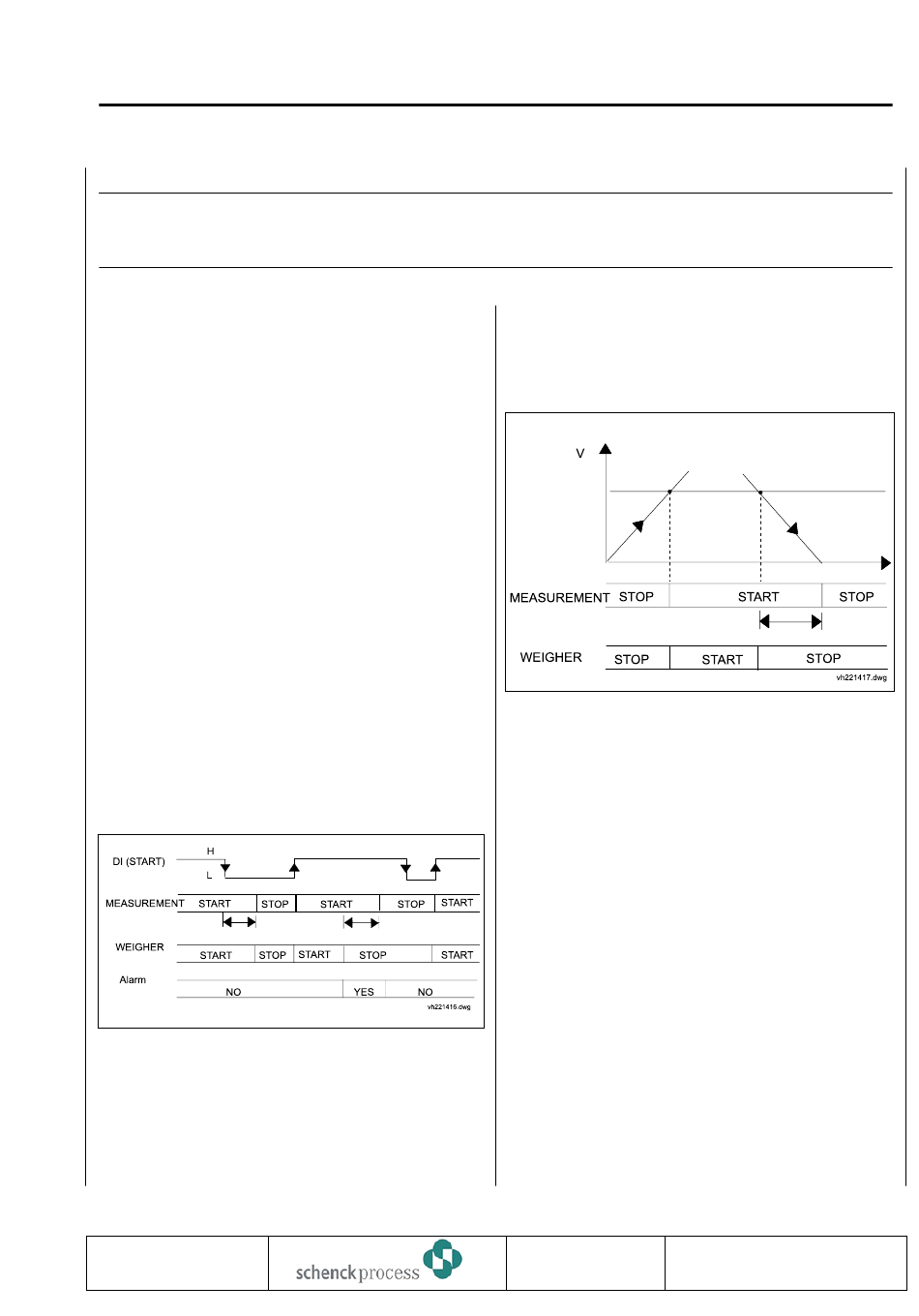

Start / Stop
Start / stop states exclusively refer to belt drive,
prefeeder and feed rate measurement.
Belt load and belt speed are acquired in either case.
Display with START
Display with STOP
After effective stop command, totalization is cut off as
soon as set afterflow time Tnach has elapsed.
STOP commands have highest priority.
Four different control modes can be configured (see
also Parameter B06).
1. START/STOP using digital input.
The default value is DI2. However, you can use any
other free digital input as well.
The digital input operates edge-controlled, i.e. If
scale cuts off after Alarm, START signal must be
removed and applied again.
2. START/STOP using keyboard (OP)
Start :
Stop:
0837
Transmission to third parties and reproduction of
t h i s d o c u m e n ta t i o n a r e n o t p e r m i t t e d .
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
Rotating point in upper display
field.
Rotation speed is approximately
proportional to feed rate, but
never zero.
Point stands still after completion
of measurement.
START key if no Alarm is
available and release signal
has been output.
Stop key, Alarm, or No
Release.
3. START/STOP with belt speed higher, or smaller,
than set limit value Vmin (v).
System prompts for input of unmeaned value
measured for speed V.
:
:
4. START/STOP via fieldbus interface (FB).
Serial START/STOP commands acts in the same
ways as the corresponding keys.
The "Select Keyboard Mode" function lets you shift the
Start/Stop commands onto keyboard.
Return to "Deselect Keyboard Mode" function using
Parameter B06.
Technische
Redaktion PDE-RD
VBW
Details
BV-H2214 GB
93
